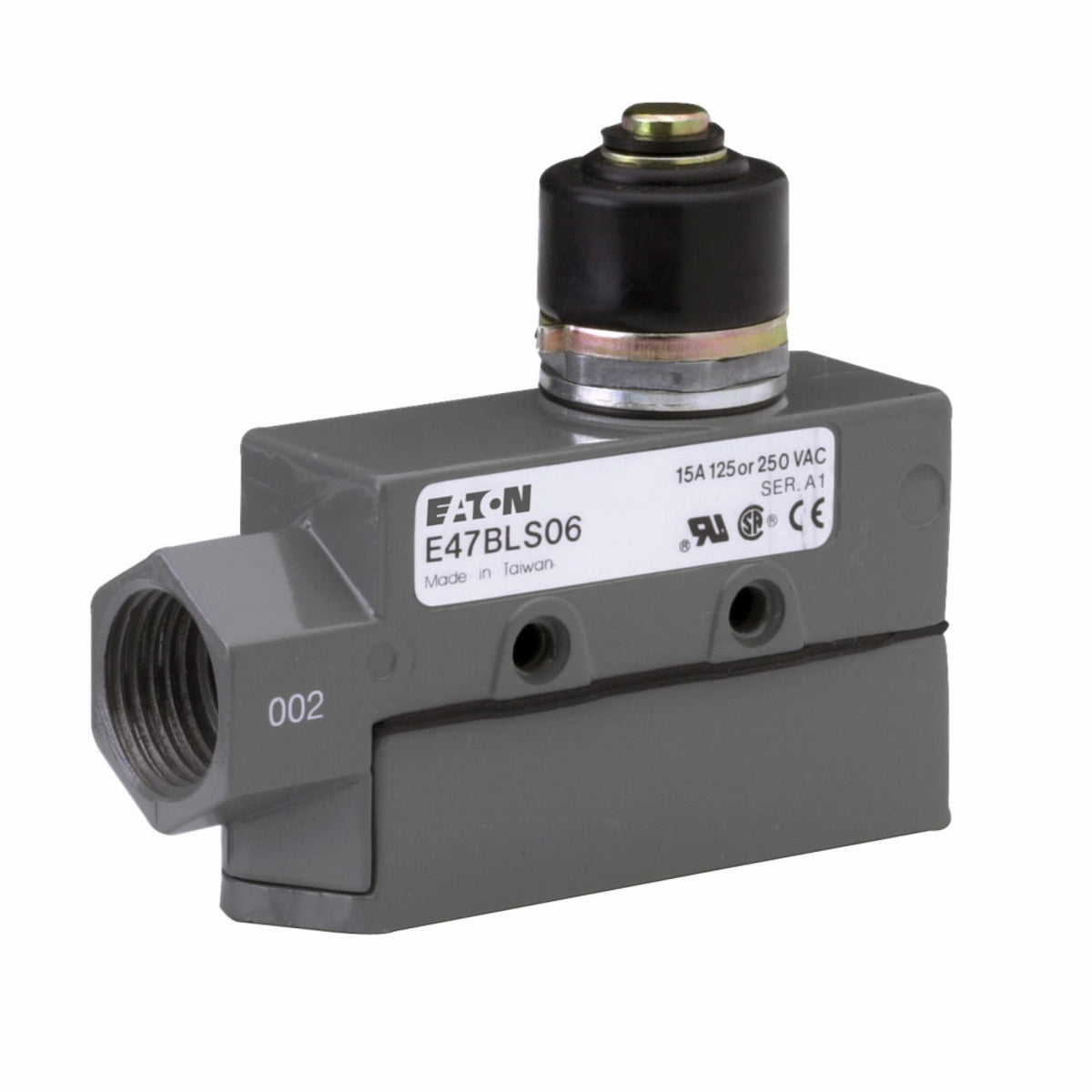

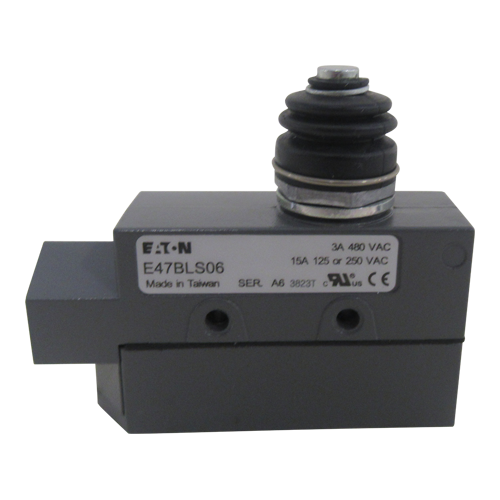

Eaton E47BLS06 Enclosed Precision Limit Switch 15 A 250 Vac (3.39 x 1 x 2.91 in)

Product Description

Eaton E47BLS06 is an enclosed precision limit switch with a booted plunger actuator and screw-type terminals. It provides SPDT (Form C) contacts rated 15 A at 250 Vac and 6 A at 30 Vdc, and operates over a speed range of 0.01 mm/s to 1 m/s. The aluminum enclosure meets CSA and UL standards; operating temperature range is -13 to 176 deg F and dimensions are 3.39 x 1 x 2.91 in.

• Booted plunger actuator with screw-type terminal connections.
• Contact rating: 15 A at 250 Vac; 6 A at 30 Vdc; contact configuration 1-SPDT (Form C).
• Aluminum enclosed housing, operating speed 0.01 mm/s to 1 m/s, operating temperature -13 to 176 deg F.

Product Highlights

Enclosed E47 series limit switch with booted plunger, 15 A/250 Vac contact rating, aluminum NEMA 1 enclosure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BLS06
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: E47BLS06
• Series: E47
• Product Type: Enclosed precision limit switch
• Actuator: Booted plunger
• Contact Configuration: 1-SPDT (Form C)
• Contact Rating: 15 A at 250 Vac; 6 A at 30 Vdc
• Voltage Rating: 250 Vac, 30 Vdc
• Operating Speed: 0.01 mm/s to 1 m/s
• Connection Type: Screw-type terminals
• Enclosure Material: Aluminum
• Enclosure Type: NEMA 1
• Operating Temperature: -13 to 176 deg F
• Dimensions (L x W x H): 3.39 x 1.00 x 2.91 in
• Mounting Type: Threaded
• Conduit Connection: 1/2 in NPT (enclosed type)
• Standards / Certifications: CSA, UL
• Action: Spring return / snap action
