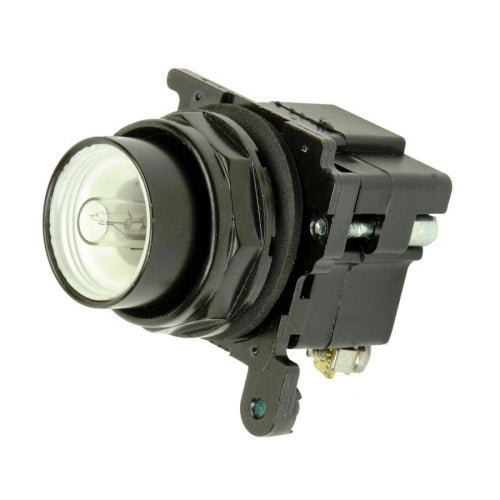

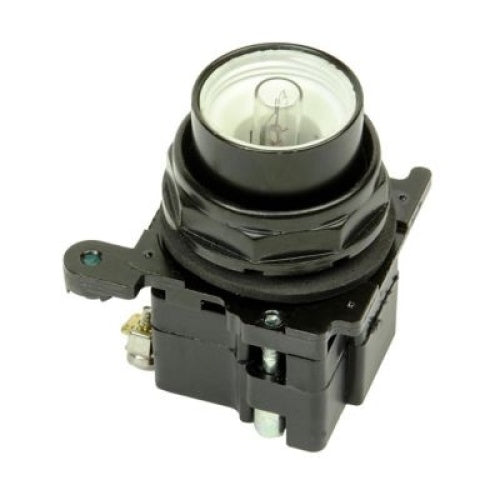

Eaton E34TPB240 E34 Pushbutton 240V

Product Description

The Eaton E34TPB240 E34 pushbutton is a corrosion-resistant indicating light that is watertight and oiltight. It features PresTest functionality, an incandescent lamp, and a transformer. Designed to meet NEMA 3, 3R, 3S, 4, 4X, 12, and 13 standards, it operates at 240 V.

• Corrosion Resistant, Watertight, and Oiltight
• Features PresTest functionality
• Meets NEMA 3, 3R, 3S, 4, 4X, 12, and 13 standards

Product Highlights

Corrosion-resistant pushbutton with indicating light, ideal for industrial applications requiring watertight and oiltight performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34TPB240

Technical Specifications

• SKU: E34TPB240
• Product Name: Eaton E34 pushbutton
• Catalog Number: E34TPB240
• UPC: 782113705378
• Product Length/Depth: 4.9 in
• Product Height: 2.1 in
• Product Width: 2.4 in
• Net Weight: 0.4 lbs
• Gross Weight: 0.43 lbs
• Compliances: FDA 3-A CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Use NEMA 4X 10250T operators where exposed to ultraviolet light
• Product Type: Pushbutton
• Type: 30.5 mm, Corrosion Resistant Watertight/Oiltight
• Light unit type: Incandescent, transformer
• Light unit voltage: 240 Vac
• Series: E34
• Actuator: PresTest
• Rating: NEMA 3R NEMA 4X NEMA 4 NEMA 13 NEMA 12 NEMA 3 NEMA 3S
• Bezel/Housing: Round
• Enclosure Type: NEMA 3/3R/3S/4/4X/12/13
• Environmental Conditions: 1 to 150 deg F Operating, -40 to 176 deg F Storage, 95% RH at 60 deg C Humidity
• Lamp Type: Incandescent
• Size: 30.5 mm
• Terminal Type: Screw
• Voltage Rating: 240 VAC
• Manufacturer Part Number: E34TPB240
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Comments: 240 V
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Pilot light
• Product series / family name: E34 series
• Functions: 30mm corrosion-resistant pilot light/lamp
• Supply voltage (AC): 240Vac
• Shape: Round
• Diameter: 30.5mm (door punch)
• Connection type: with pressure connections
• Degree of protection: IP65
• Material: Die-cast Zinc (body)
• (Switching-Indication) NEMA Rating: NEMA 3S
• (Switching-Indication) AC Voltage: 240 VAC
• Component: Push Button
• (Switching-Indication) Size: 30.5 mm
• (Switching-Indication) Push Button Type: Prestest
• Alternate Mfr Part Number: E34TPB240
