Product Description

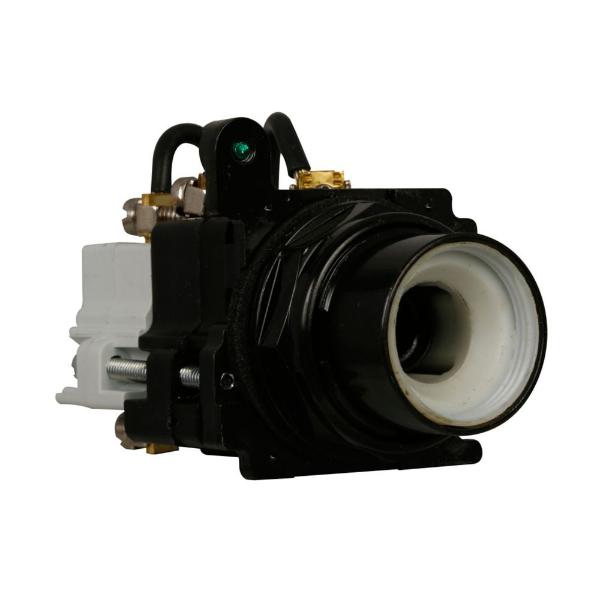

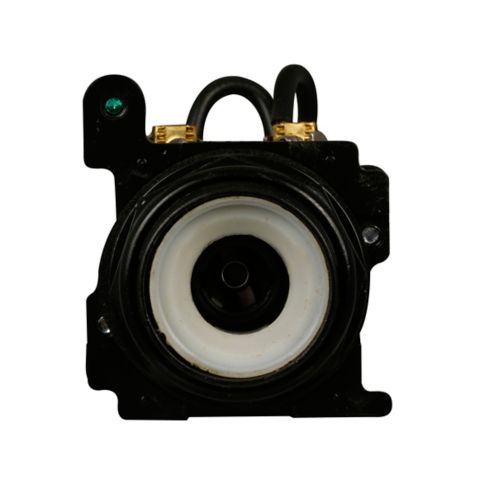

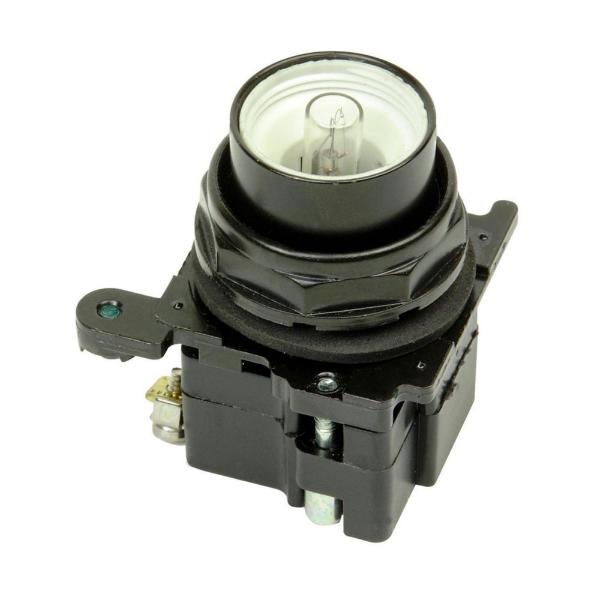

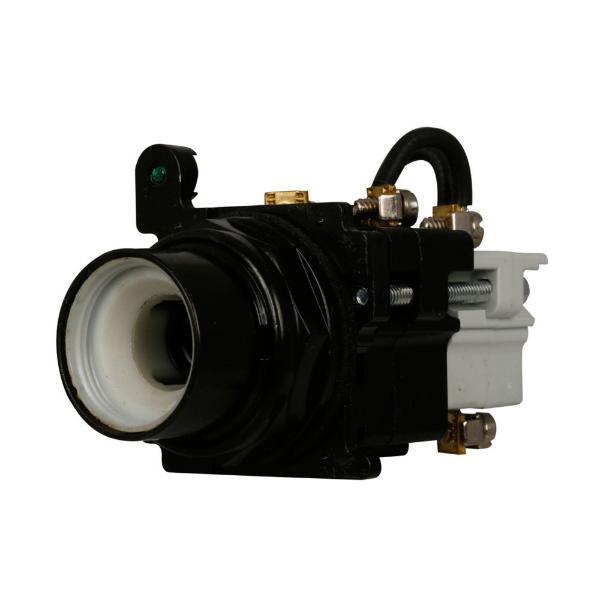

The EATON E34TPB120L pushbutton is a corrosion-resistant indicating light with watertight and oiltight construction. It features a PresTest LED with transformer and operates on 120 V. It has NEMA 3, 3R, 3S, 4, 4X, 12, and 13 ratings and a 30.5 mm size. It is suitable for electrical assemblies, panels, and EOEMs applications.
- Compliances include FDA 3-A and CE Marked
- Certifications include UL Listed and CSA Certified
Product Highlights
Corrosion-resistant design with oiltight and watertight construction. Features PresTest LED with transformer and operates on 120 VAC.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: E34TPB120L
-
Country of Origin: US
Technical Specifications
-
Product Name: Eaton E34 pushbutton
-
Catalog Number: E34TPB120L
-
UPC: 782114687246
-
Product Type: Pushbutton
-
Type: Corrosion Resistant Watertight/Oiltight
-
Light unit type: LED, transformer
-
Light unit voltage: 120 Vac
-
Series: E34
-
Actuator: PresTest
-
Style: 30.5 mm
-
Rating: NEMA 4 NEMA 3 NEMA 3S NEMA 3R NEMA 13 NEMA 12 NEMA 4X
-
UNSPSC Code: 39120000
-
Brand: Eaton - Cutler Hammer
-
Unit of Measure: EA
-
UNSPSC: 39121534
-
Lamp Type: LED
-
Application: Electrical Assemblies, Panels and EOEMs Applications
-
Terminal Type: Screw
-
Enclosure Type: NEMA 3/3R/3S/4/4X/12/13
-
Voltage Rating: 120
-
Environmental Conditions: 1 to 150 deg F Operating, -40 to 176 deg F Storage, 95% RH at 60 deg C Humidity
-
Size: 30.5
-
Base Type: Bayonet
-
Item: Pushbutton
-
Actuator Type: PresTest
-
Lamp Module Type: LED, Transformer
-
Nema Enclosure Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X
-
Notes: Use NEMA 4X 10250T Operators Where Exposed To Ultraviolet Light
-
(Switching-Indication) NEMA Rating: NEMA 3S
-
(Switching-Indication) AC Voltage: 120 VAC
-
Component: Compact Push Button
-
Manufacturer: Eaton
-
(Switching-Indication) Size: 30.5 mm
-
(Switching-Indication) Push Button Type: Prestest
