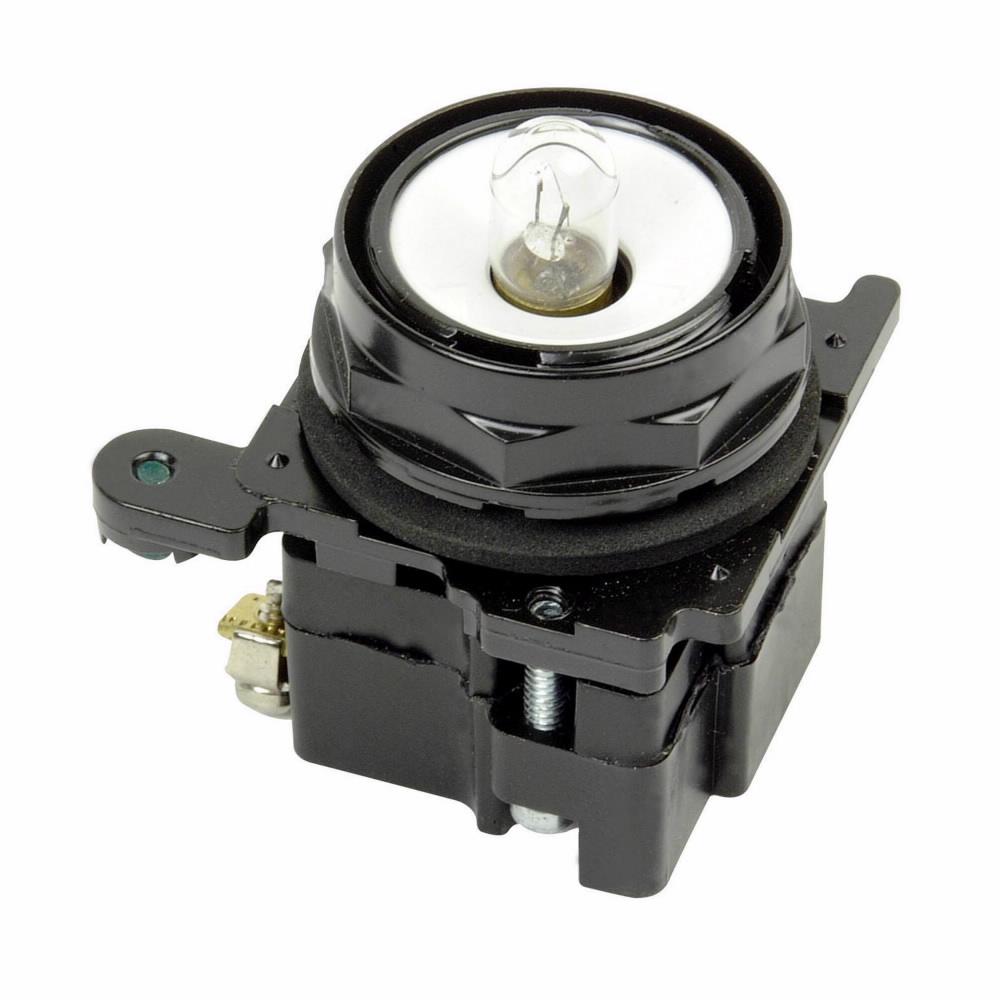

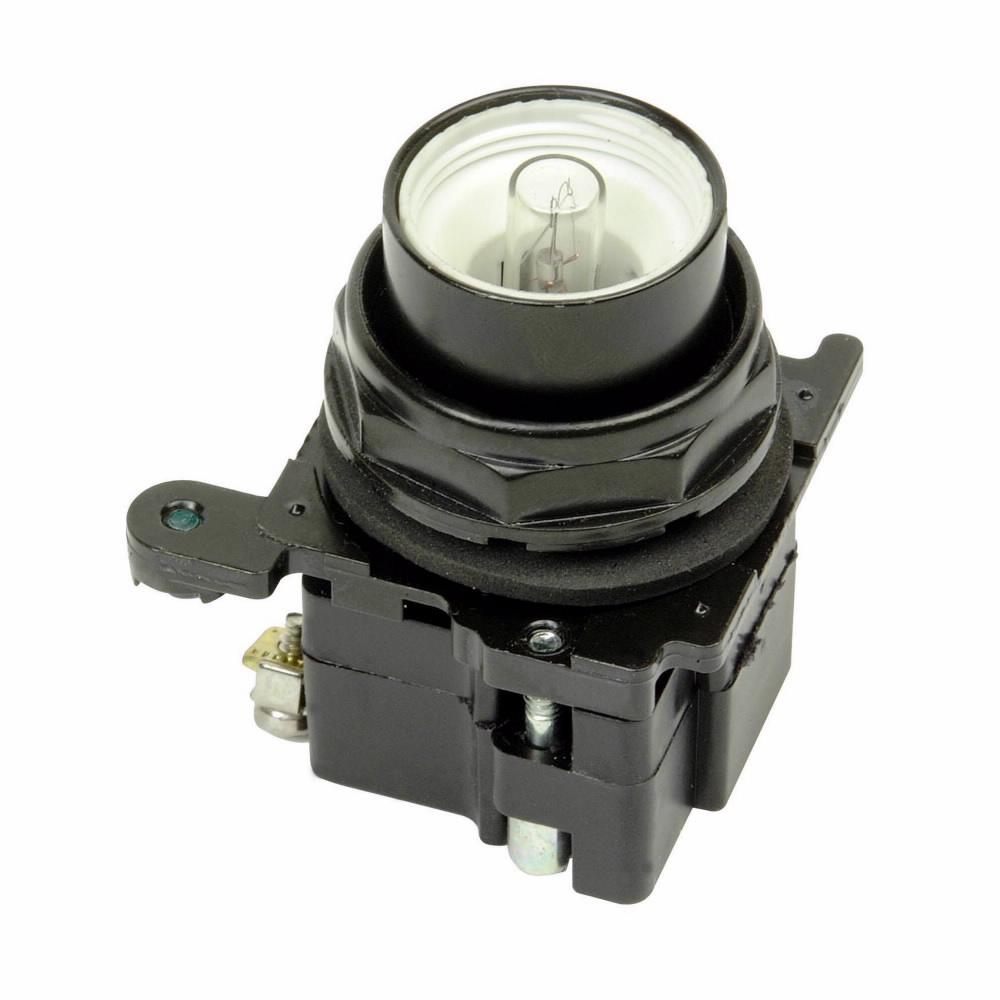

Eaton E34TB480 E34 corrosion-resistant oil/watertight standard actuator indicating light 480 VAC 30.5mm

Product Description

The Eaton E34TB480 corrosion-resistant oil/watertight standard actuator indicating light features a two-layer, 100% solid thermosetting cathodic epoxy coating. This rugged, die-cast pushbutton provides a flat black, smooth, consistent, and corrosion-resistant surface. It has passed a 600-hour salt spray test, four times longer than the industry standard.

• Black matte epoxy coated finish
• Integral ground terminal screw-on operators
• Superior sealing

Product Highlights

This corrosion-resistant indicating light is ideal for automation, logic control equipment, electrical assemblies, panels, and OEM applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34TB480
• Country of Origin: Dominican Republic

Technical Specifications

• Bezel/Housing: Metal
• Enclosure Type: NEMA 3/3R/3S/4/4X/12/13
• Lamp Type: Incandescent
• Series: E34
• Size: 30.5 mm
• Terminal Type: Screw
• Type: Corrosion-Resistant Oil/Watertight Standard Actuator
• Voltage Rating: 480 VAC
• SKU: E34TB480
• Product Name: Eaton E34 pushbutton
• Catalog Number: E34TB480
• UPC: 782113705347
• Product Length/Depth: 3.4 in
• Product Height: 2.1 in
• Product Width: 2.4 in
• Compliances: CE Marked FDA 3-A
• Certifications: UL Listed CSA Certified
• Catalog Notes: Use NEMA 4X 10250T operators where exposed to ultraviolet light
• Product Type: Pushbutton
• Light unit type: Incandescent, transformer
• Light unit voltage: 480 Vac
• Actuator: Standard
• Style: 30.5 mm
• Rating: NEMA 4 NEMA 12 NEMA 3R NEMA 4X NEMA 3 NEMA 13 NEMA 3S
• NEMA: 4,4X,13
• Power Source: Transformer
• Lens Style/Size: Lens Not Included
• Lens Material: Lens Not Included
• Lamp Number: 755
• Bezel: Round Metal, Epoxy-Coat
• Enclosure Rating: NEMA 3, 3R, 4, 4X, 12, 13, IEC IP65
• UNSPSC: 39121534
• Application: Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Comments: 480 V
• Net Weight: 0.2 lbs
• Gross Weight: 0.25 lbs
