Eaton E34PB5 Corrosion-Resistant Square Oil/Watertight Multi-Function 30.5 mm

Product Description

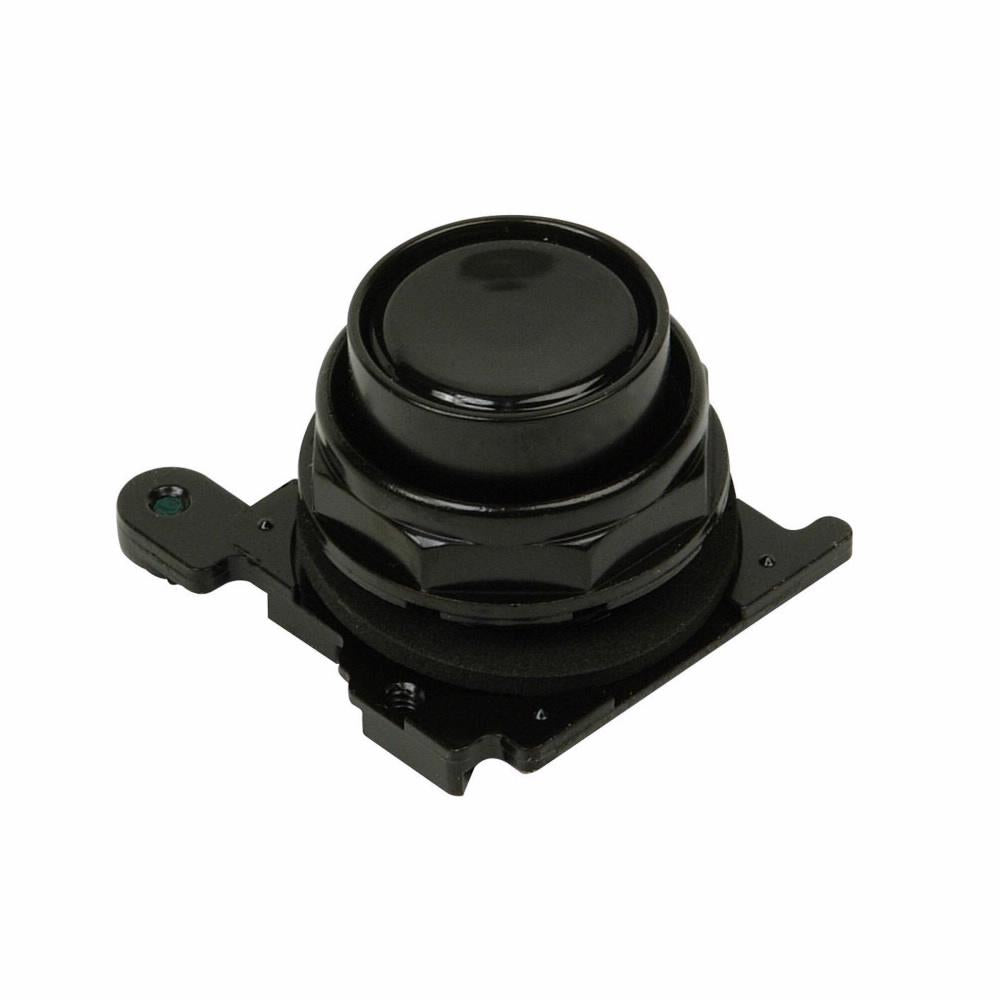

The EATON E34PB5 corrosion-resistant 30.5 mm pushbutton features rugged die-cast construction with a two-layer 100% solid thermosetting cathodic epoxy coating. This provides a smooth, corrosion-resistant surface that has passed a 600 hr salt spray test. It is a non-illuminated, momentary, flush mounting pushbutton.

• Heavy duty die-cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

This corrosion-resistant square oil/watertight multi-function pushbutton is ideal for stationary machinery, equipment outside factory and other applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34PB5
• Country of Origin: Dominican Republic

Technical Specifications

• Contact Mode: Momentary
• Contact Rating: 10 A at 660 VAC/VDC
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Finish: Epoxy Coated
• Material: Die-Cast Zinc
• Mounting Type: Flush
• Operator Type: Flush Button
• Series: E34
• Temperature Rating: 1 to 150 deg F
• Voltage Rating: 600 VAC
• Size: 30.5 mm
• Contact Configuration: 1NO
• Product Length/Depth: 2.1 in
• Product Height: 2.1 in
• Product Width: 1.9 in
• Product Weight: 0.2 lb
• Compliances: FDA 3-A CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Pushbutton
• Type: 30.5 mm, Square Multifunction
• Actuator material: Plastic
• Illumination: Non-illuminated
• Rating: NEMA 3 NEMA 4X NEMA 4 NEMA 3R NEMA 12 NEMA 13
• Degree of protection: NEMA 3
• Operating Mode: Momentary
• Operating Temperature - Minimum: 32 Degrees F
• Resistance Properties: Corrosion Resistant, Oil and Grease Resistant, Watertight
• NEMA Enclosure Rating: 12, 13, 3, 3R, 4, 4X
• Operating Temperature - Maximum: 140 Degrees F
• Operator Material: Polymer
• Push Button Style: Flush
• Panel Cutout Diameter: 30 mm
• Head Material: Plastic
• IP Rating: IP65
• Basic Material: Metal
• Features: Drainage Holes, Grounding Nibs
• Number of Operators: 1
• Terminal Connection: Screw Clamp
• Application: Stationary Machinery, Equipment Outside Factory and Other Applications
• UNSPSC: 39122216
• Model: CORROSION RESISTANT PUSHBUTTON OPERATOR STD. BTN. WHITE
• Country of Origin: Dominican Republic
