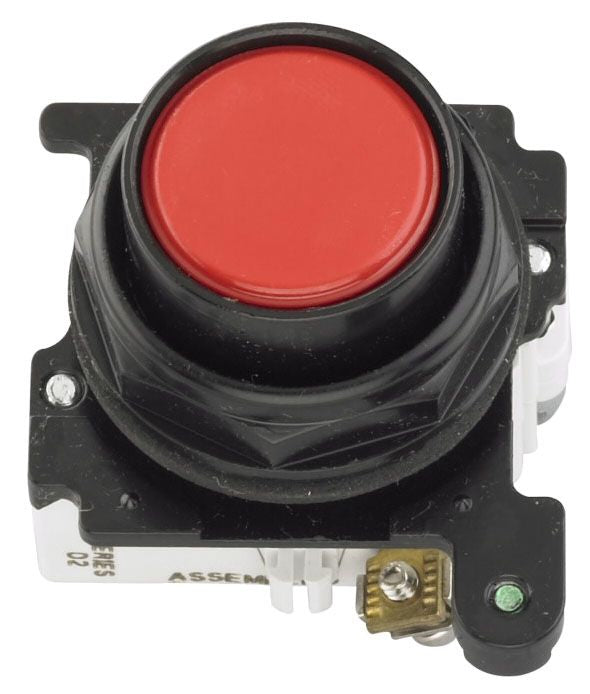

Eaton E34PB2 Flush Mount Push Button 30.5mm

Product Description

The EATON E34PB2 is a flush-type push button operator designed for industrial and commercial control panel applications. Flush mount push buttons sit recessed within the panel cutout, reducing the risk of accidental actuation during normal equipment operation. The E34PB2 fits a 30.5mm mounting hole and is part of the E34 operator series. Licensed electricians and panel builders typically install this component during new panel construction or control system retrofits. At 0.25 pounds and a compact footprint, it fits easily into tight enclosures without adding bulk to the assembly.

The E34PB2 is suited for industrial control panels, machine control stations, and commercial electrical enclosures requiring a 30.5mm flush-style operator. It is a common choice for applications where inadvertent contact with the button must be minimized, such as motor start-stop circuits, conveyor controls, or equipment interlocks. This operator is intended for use with compatible contact blocks from the E34 series.

Key Features

• Flush-mount design reduces risk of accidental actuation in busy panel environments
• 30.5mm panel cutout size fits standard industrial enclosure knockouts
• Compact dimensions: 1.9 inches x 1.9 inches x 2.3 inches (LxWxH)
• Lightweight at 0.25 pounds for easy integration into control assemblies
• Part of the EATON E34 operator series for modular contact block compatibility

Compatibility

Designed as an OEM-style operator for industrial control panels requiring a 30.5mm flush-type push button. Compatible contact blocks and accessories should be selected from within the EATON E34 series.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the panel or enclosure before beginning installation or wiring. Ensure the panel cutout is sized correctly for the 30.5mm mounting diameter before inserting the operator. Torque all terminal connections to the contact block per the contact block manufacturer specifications.

Technical Specifications

• Mount Type: Flush
• Panel Cutout Size: 30.5mm
• Length: 1.9 inches
• Width: 1.9 inches
• Height: 2.3 inches
• Weight: 0.25 pounds
• UPC: 78211370429

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34PB2
