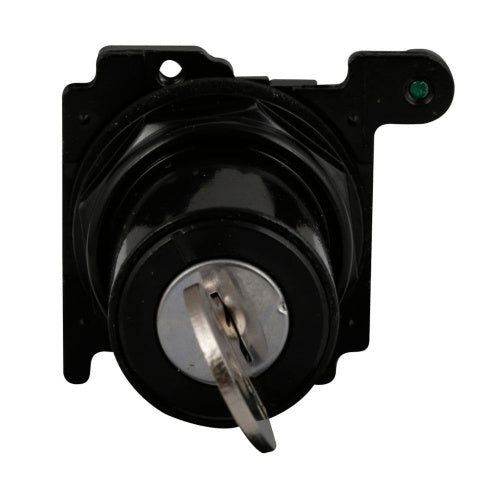

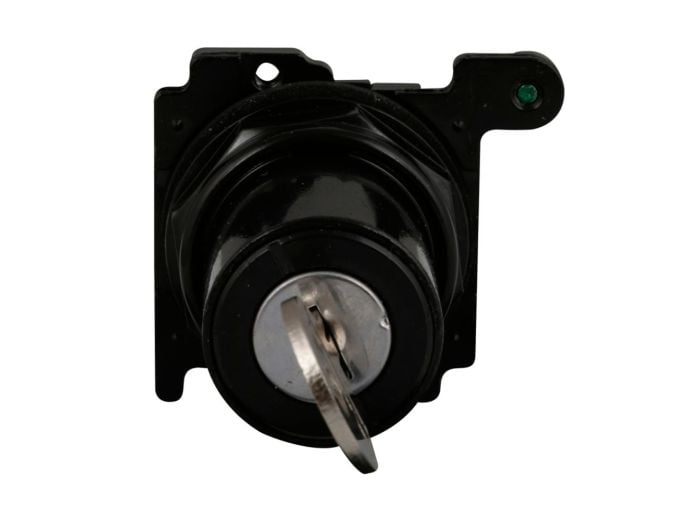

Eaton E34kfb2 corrosion-resistant selector switch operator 30.5 mm

Product Description

The EATON E34KFB2 is a corrosion-resistant, oil/watertight, non-illuminated selector switch operator. This 30.5 mm keyed operator features 2 positions and a black finish. It is designed for industrial automation, MRO, pneumatic, motion, electronic, hydraulic, HVAC, and electrical control equipment.

• Watertight/oiltight construction
• Corrosion resistant
• Non-illuminated

Product Highlights

This selector switch operator offers a corrosion-resistant design and easy assembly for various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34KFB2
• Country of Origin: DO

Technical Specifications

• Material: Metal
• Mounting Type: Surface
• Series: E34
• Size: 30.5 mm
• Finish: Epoxy Coated
• Standard & Approvals: CE Certified, FDA Approved, UL 508 File No. E131568, CSA C22.2 No. 14 File No. LR68551, EN60947-5-1, EN 60947-5-5
• Throw: 60 deg Left
• Terminal: Screw
• Operator Type: Key
• Number of Positions: 2
• Cam Code: 1
• Includes: Cam, Cap
• Enclosure Type: NEMA 3/4/12/13/3R/4X/IP65
• Contact Mode: Maintained
• Brand: CUTLER HAMMER
• Product Length/Depth: 2.4 in
• Product Height: 3.2 in
• Product Width: 2.1 in
• Product Weight: 0.4 lb
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Type: 30.5 mm, Corrosion Resistant
• Key removal position: Left only
• Actuator: Key operated
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Illumination: Non-illuminated
• Product Series: E34
• Family Series: Eaton Switches, E34 Series
• Description: Eaton Cutler-Hammer series 30.5 mm, corrosion resistant selector switch operator, E34, Cam 1, 60 00b0 throw, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Two-position, Key, Left
• Mounting: 30 mm
• Selector Function: Maintained
• NEMA Rating: NEMA 4X
• Protection Rating: IP65
• Comments: Key Removal Left Only
• Net Weight: 0.4 lbs
• Gross Weight: 0.4 lbs
• Positions: 2 Positions
• Component: Push Button
• Manufacturer: Eaton
• Operating Cap: Key, Remove-Left
• Bezel/Housing: Die Cast, Black Epoxy
