Eaton E34JB2N8 E34 Corrosion-Resistant Square Oil/Watertight Multi-Function 50 mm

Product Description

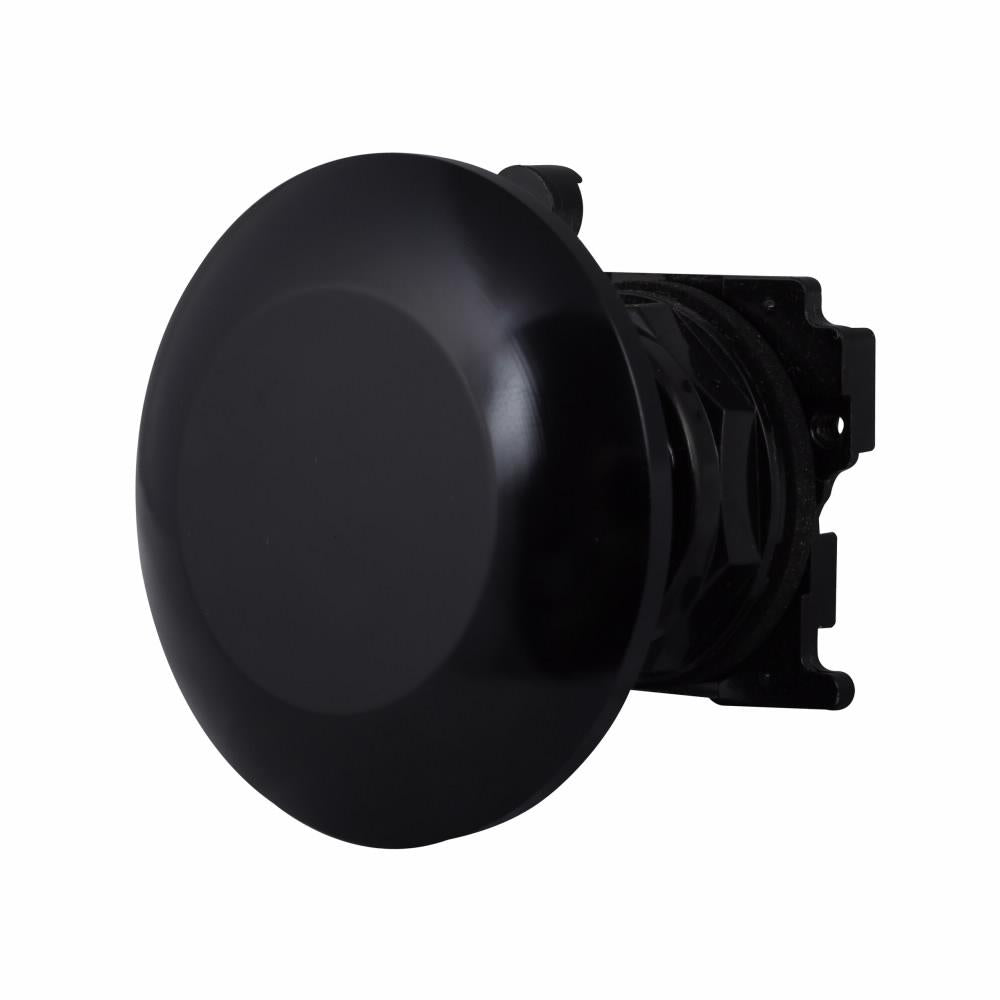

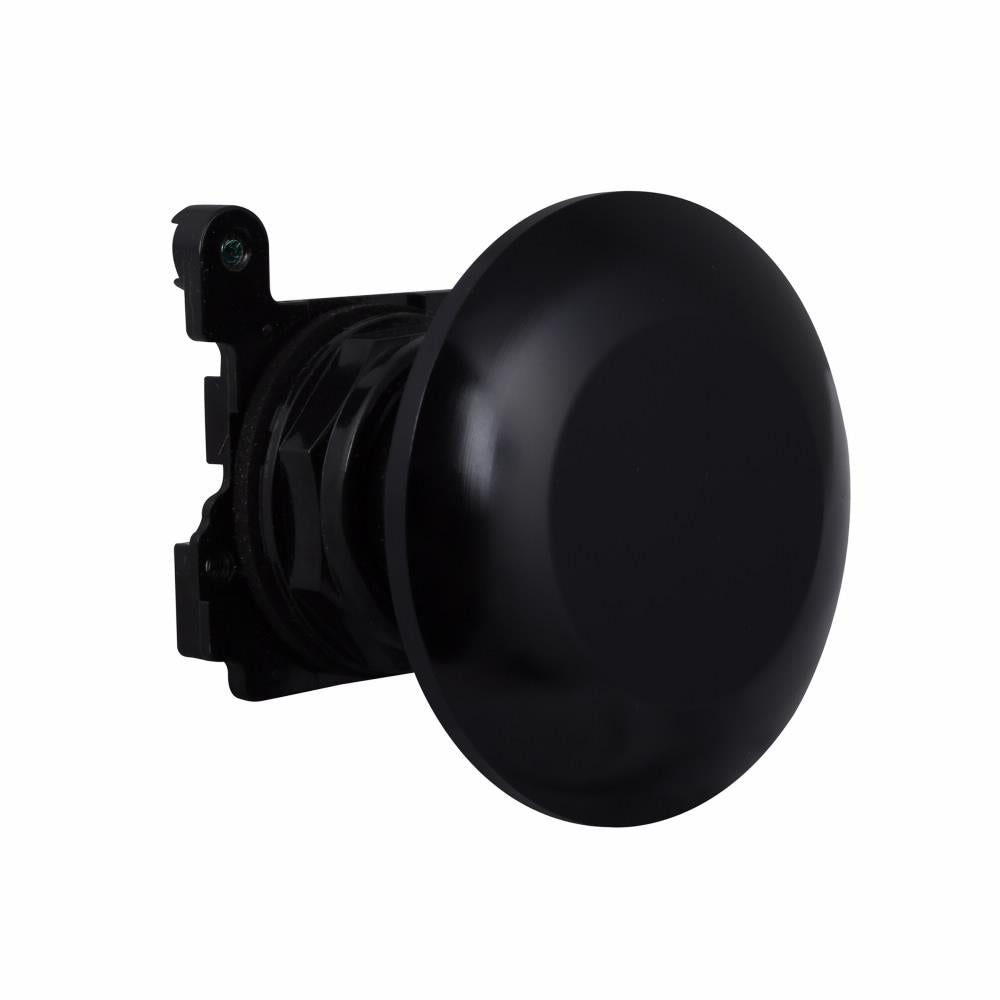

The EATON E34JB2N8 corrosion-resistant E34 range of 30.5 mm pushbuttons features rugged die-cast construction with a two-layer 100% solid thermosetting cathodic epoxy coating. This non-illuminated pushbutton operator is oil/watertight and multi-functional. It has passed a 600 hr salt spray test.

• Heavy duty die-cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

This EATON E34 series pushbutton is ideal for stationary machinery, equipment outside factories, and other applications requiring robust and reliable operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34JB2N8

Technical Specifications

• Contact Mode: Momentary
• Contact Rating: 10 A at 660 VAC/VDC
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Finish: Epoxy Coated
• Material: Die-Cast Zinc
• Operator Type: Jumbo Mushroom Head
• Series: E34
• Temperature Rating: 1 to 150 deg F
• Type: Corrosion-Resistant Square Oil/Watertight Multi-Function
• Voltage Rating: 600 VAC
• Size: 50 mm
• Product Name: Eaton E34 pushbutton
• Catalog Number: E34JB2N8
• UPC: 782113703053
• Product Length/Depth: 2.4 in
• Product Height: 3.3 in
• Product Width: 2.1 in
• Product Weight: 0.4 lb
• Compliances: FDA 3-A CE Marked
• Certifications: UL Listed CSA Certified UL 505
• Catalog Notes: Anodized aluminum head-may not be suitable for some corrosive environments.
• Product Type: Pushbutton
• Actuator color: Red
• Bezel: Black
• Actuator material: Anodized aluminum
• Actuator: Jumbo mushroom
• Operating mode: Momentary
• Illumination: Non-illuminated
• Legend: EMERGENCY STOP
• Rating: NEMA 4X NEMA 12 NEMA 4 NEMA 13 NEMA 3 NEMA 3R
• Degree of protection: NEMA 12 NEMA 3R NEMA 3 NEMA 13 NEMA 4X NEMA 4
• Application: Stationary Machinery, Equipment Outside Factory and Other Applications
