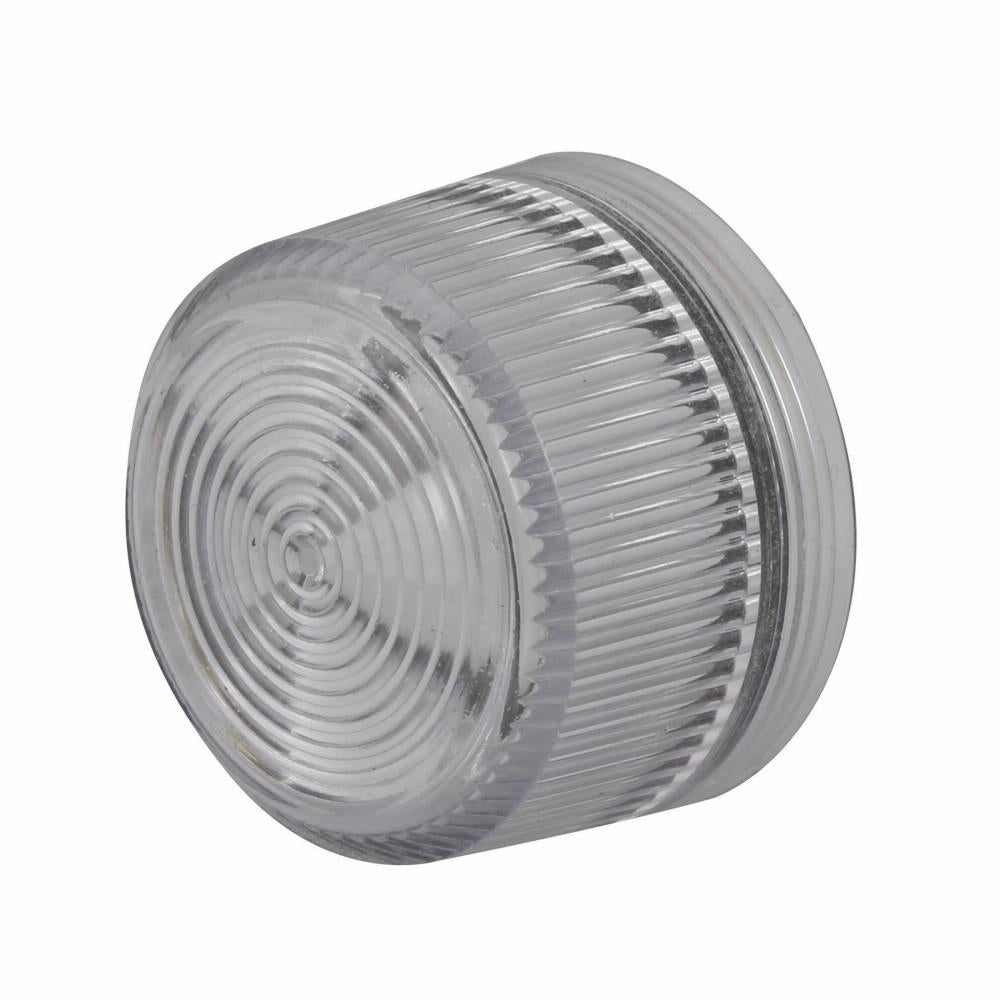

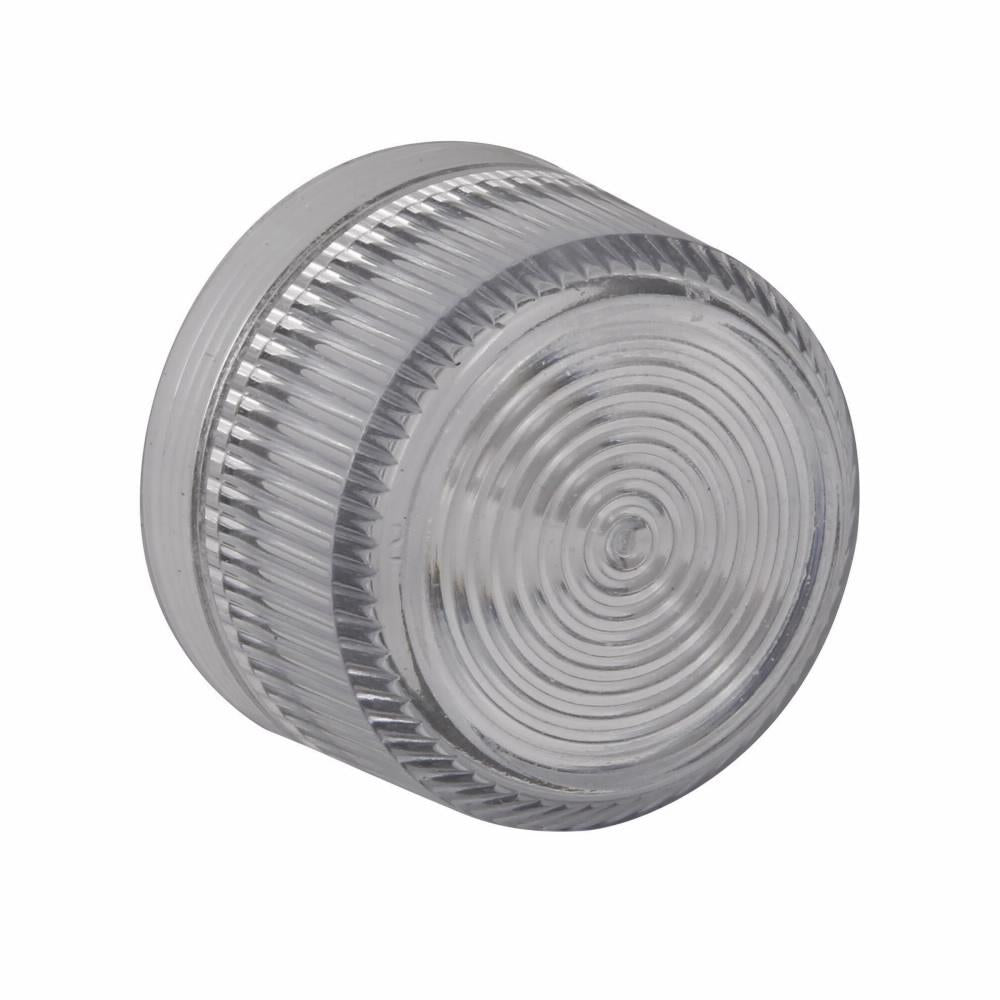

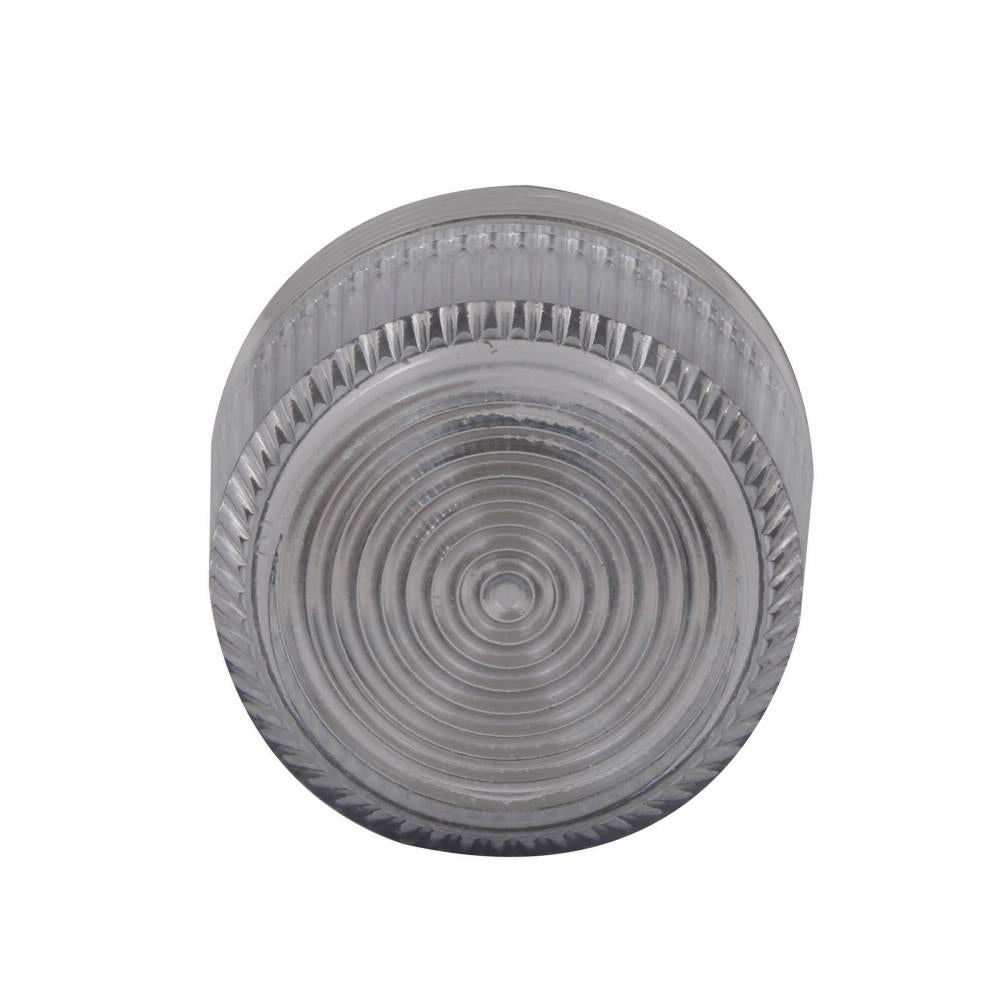

Eaton E34H9 indicating light lens blank corrosion-resistant oiltight/watertight 30.5 mm

Product Description

The EATON E34H9 indicating light lens is part of the E34 series 30.5 mm pushbutton line, featuring rugged die-cast construction with a 2-layer 100% solid thermosetting cathodic epoxy coating. This blank, corrosion-resistant, oiltight/watertight lens is designed for use with indicating lights.

• 30.5 mm lens type
• Corrosion-resistant and watertight design
• Blank legend

Product Highlights

The EATON E34H9 lens is ideal for industrial applications requiring durable and reliable indicating light components.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34H9
• Country of Origin: Dominican Republic

Technical Specifications

• Series: E34 Series
• Type: 30.5 mm, Corrosion Resistant Watertight/Oiltight
• Size: 30.5 mm
• NEMA Rating: NEMA 3/3R/4/4X/12/13/IP65
• Shape: Round
• Material: Plastic
• Legend: Blank Legend
• Product Length/Depth: 1.2 in
• Product Height: 0.8 in
• Product Width: 1.2 in
• Compliances: FDA 3-A CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Pushbutton accessory
• Used with: Indicating light
• Actuator color: Amber
• Bus material: Plastic
• Standard & Approvals: CE Certified, UL 508 File No. E131568, CSA C22.2 No. 14 File No. LR68551, EN60947-5-1, EN 60947-5-5
• Application: For hazardous location
• Lens Type: Fresnel
• IP Rating: IP65
• NEMA Enclosure Rating: 1, 12, 13, 2, 3, 3R, 4, 4X
• Compatible with Brand: Eaton
• Compatible Lamp Type: Incandescent, LED
• Compatible with Series: E34
• Overall Height: 0.8 in
• Panel Cutout Diameter: 30 mm
• Overall Depth: 1.2 in
• Overall Width: 1.2 in
• Item: Pilot Light Lens
• Alternate Mfr Part Number: E34H9
