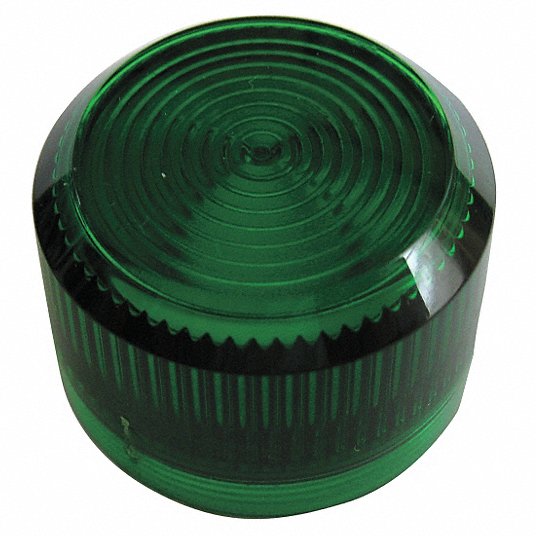

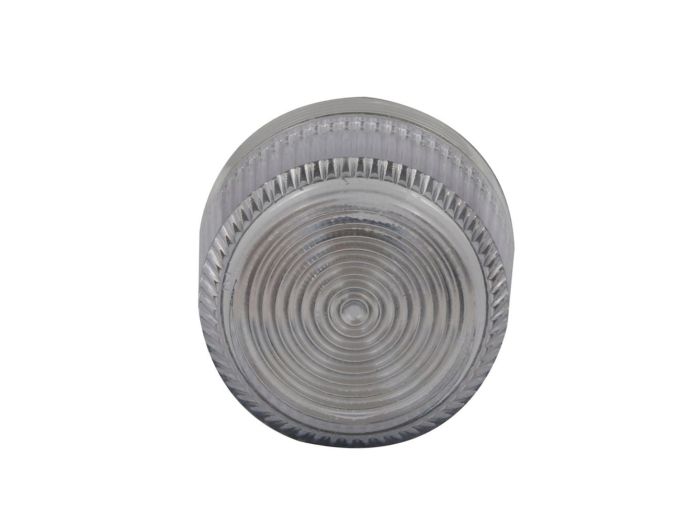

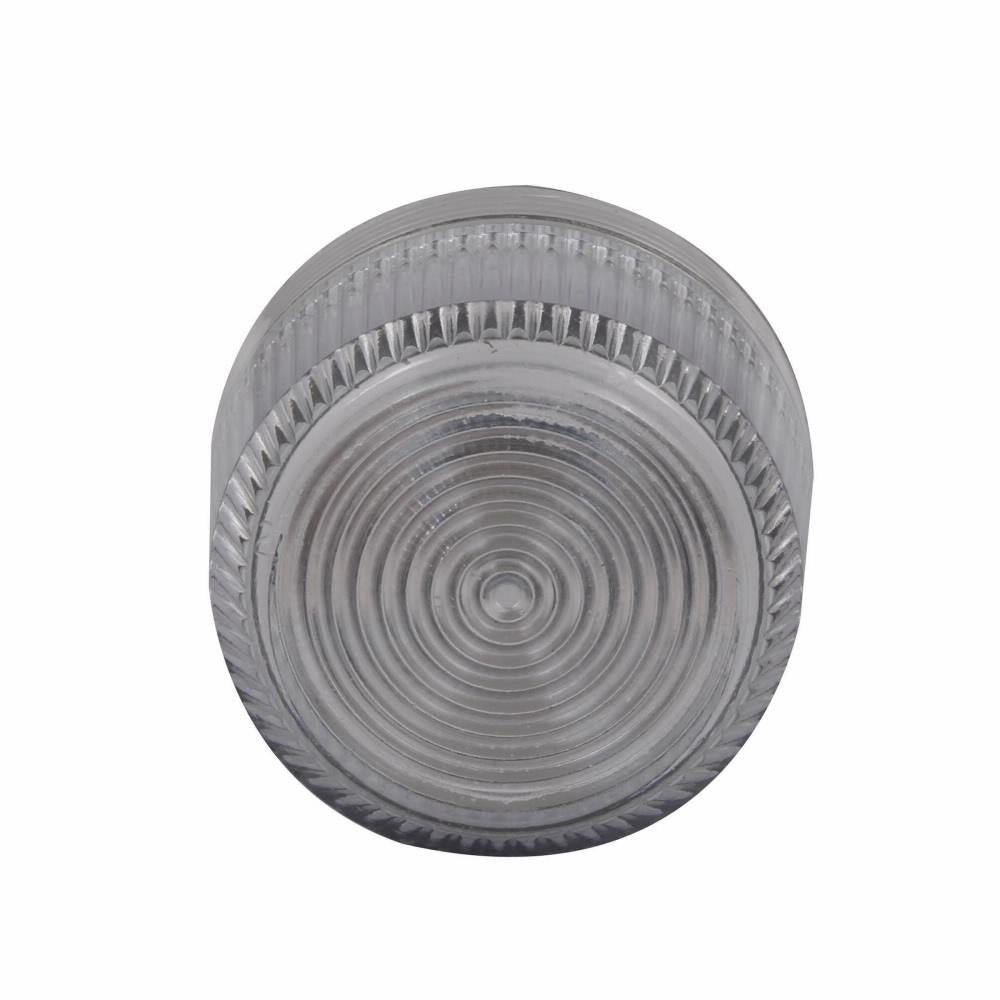

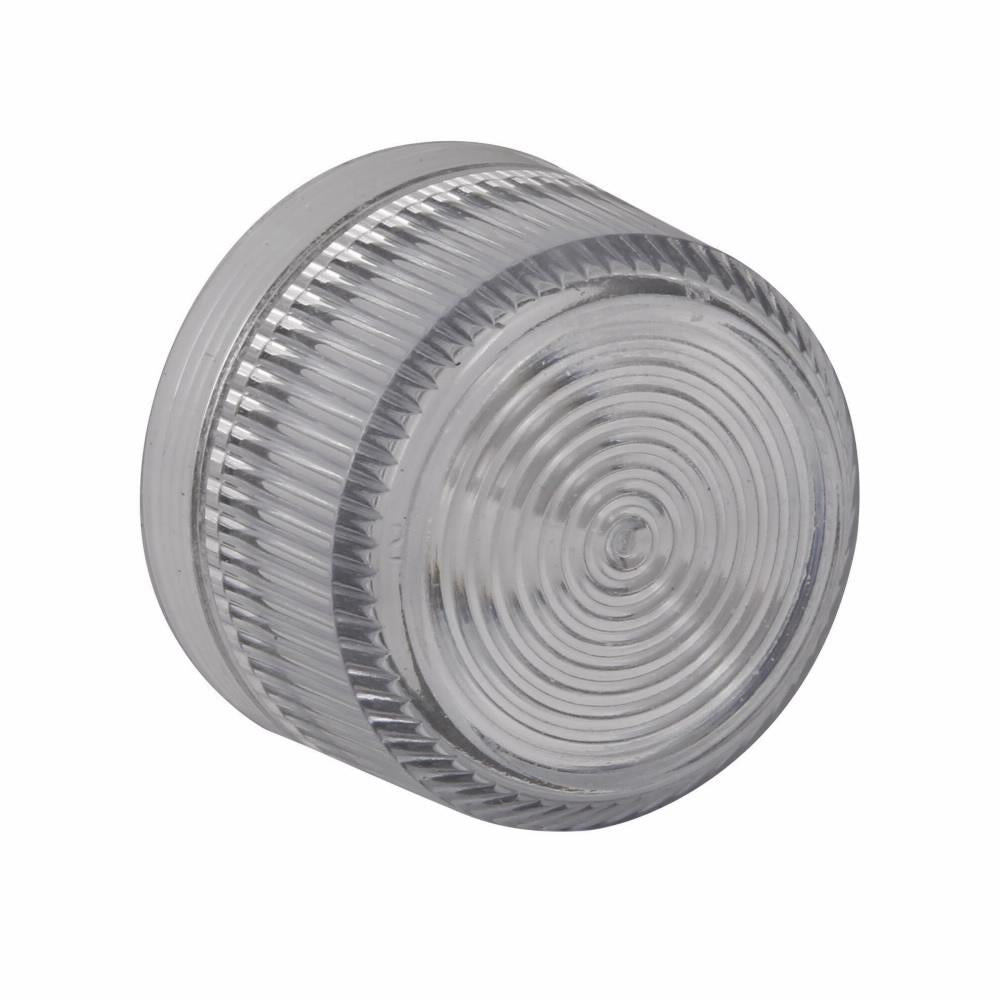

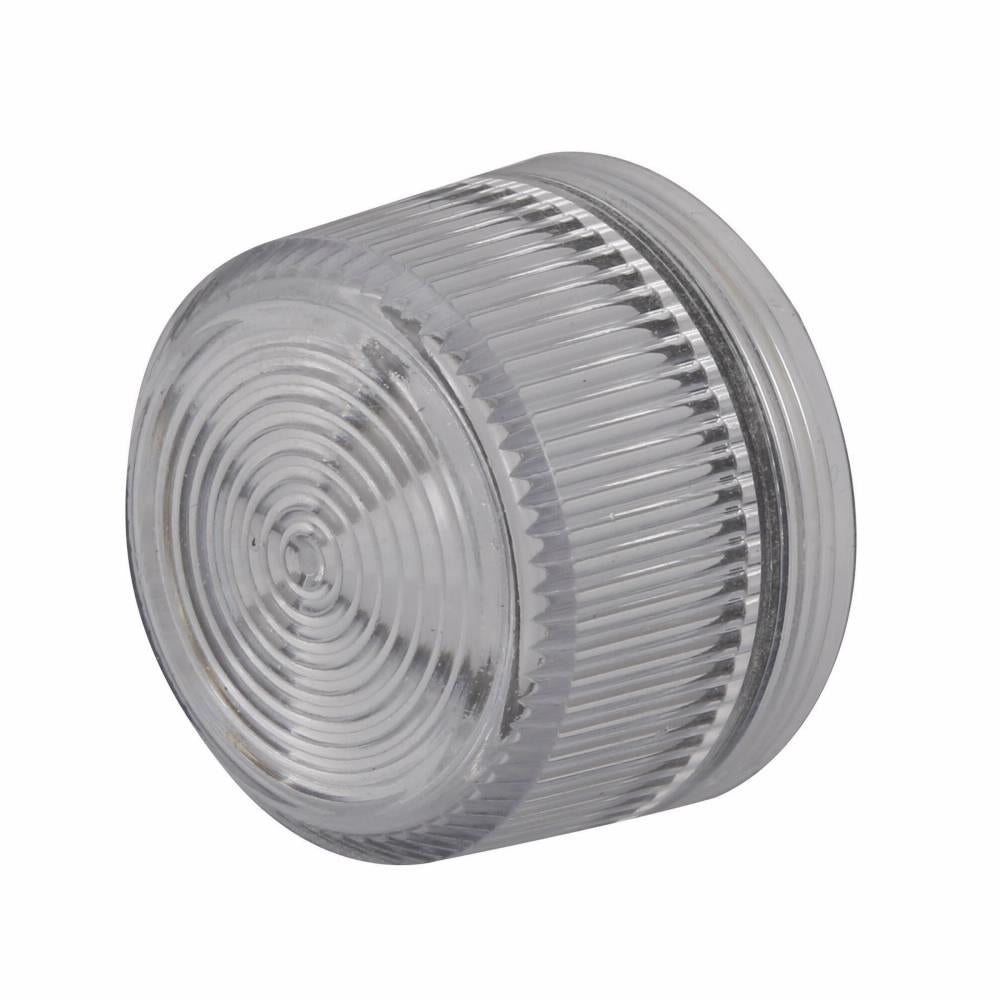

Eaton E34H3 Indicating Light Lens 30.5 mm

Product Description

The EATON E34H3 is an indicating light lens designed for use with the E34 series of pushbuttons. Constructed with rugged die-cast material and a 2-layer thermosetting cathodic epoxy coating, this lens provides a corrosion-resistant surface. It is suitable for use in oiltight and watertight environments.

• Corrosion-resistant construction
• Oiltight and watertight design
• Compatible with E34 series

Product Highlights

The EATON E34H3 lens enhances visibility and protects the light in demanding industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34H3
• Country of Origin: China

Technical Specifications

• Series: E34
• Size: 30.5 mm
• NEMA Rating: NEMA 3/3R/4/4X/12/13/IP65
• Shape: Round
• Material: Plastic
• Type: Blank Corrosion-Resistant Oiltight/Watertight
• Product Name: Eaton E34 pushbutton lens
• Catalog Number: E34H3
• UPC: 782113702919
• Product Length/Depth: 1.2 in
• Product Height: 0.8 in
• Product Width: 1.2 in
• Compliances: FDA 3-A CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Pushbutton accessory
• Used with: Indicating light
• Actuator color: Green
• Bus material: Plastic
• Legend: Blank
• Product category: Lens
• Application: For hazardous location
• Standard & Approvals: CE Certified, UL 508 File No. E131568, CSA C22.2 No. 14 File No. LR68551, EN60947-5-1, EN 60947-5-5
• Brand: Eaton
• IP Rating: IP65
• Lens Color: Green
• Lens Material: Plastic
• Lens Type: Fresnel
• NEMA Enclosure Rating: 1; 2; 3; 3R; 4; 4X; 12; 13
• Overall Depth: 1.2 in
• Overall Height: 0.8 in
• Overall Width: 1.2 in
• Panel Mounting Hole Diameter: 30 mm
• Standards: CE; CSA; FDA 3-A; UL Listed
• UNSPSC: 39121512
• Manufacturer Part Number: E34H3
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Compatible with Series: E34
• Compatible Lamp Bulb Type: Incandescent; LED
