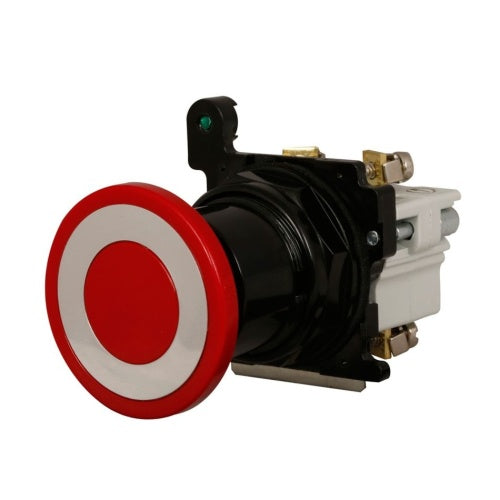

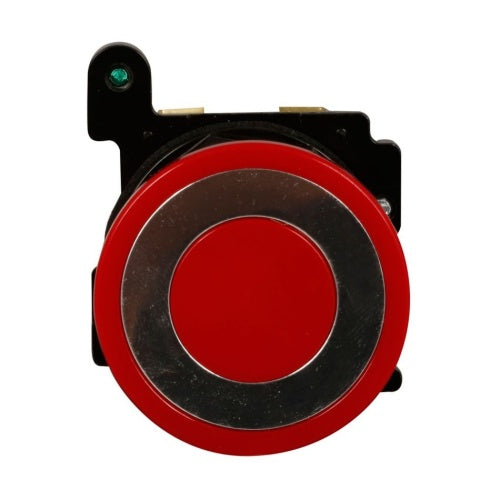

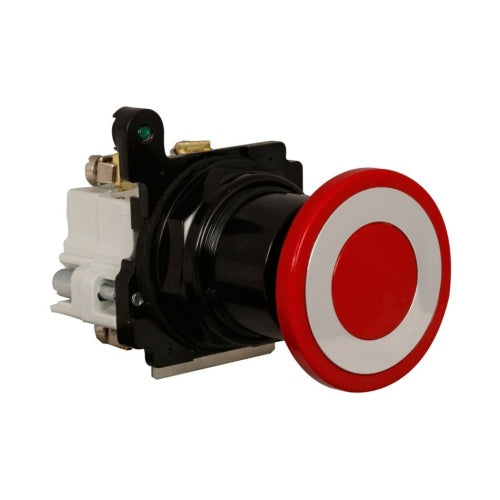

Eaton E34GDBC2-1 Pushbutton 40 mm

EATON
Brand: EATON
SKU: E34GDBC2-1
Availability: In Stock

Ships same day if ordered by 12 pm
$215.13
$215.13
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton E34GDBC2-1 is a 30.5 mm watertight/oiltight corrosion-resistant push-pull unit. This Class I Division 2 pushbutton features a standard actuator, plastic bus, and maintained push and pull operation. It is non-illuminated with a two-position configuration and a 40 mm button from the E34 Series.

  • Factory sealed contact blocks
  • Front of panel drainage holes
  • Grounding nibs on the operator casing

Product Highlights

Corrosion-resistant and oiltight, this push-pull unit is ideal for industrial applications requiring robust and reliable operation.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: E34GDBC2-1
Technical Specifications
Product Type
Pushbutton
Catalog Number
E34GDBC2-1
UPC
782114375716
Product Length/Depth
2.4 in
Product Height
3.2 in
Product Width
2.1 in
Product Weight
0.4 lb
Compliances
CE Marked FDA 3-A
Certifications
UL Listed CSA Certified
Type
Class I Division 2
Actuator color
Red
Bus material
Plastic
Actuator
Standard
Operating mode
Push: maintained Pull: maintained
Contact configuration
1 NO-1 NC
Illumination
Non-illuminated
Series
E34
Number of positions
2
Rating
NEMA 12 NEMA 3 NEMA 13 NEMA 3R NEMA 4X NEC Class I Division 2, Groups B, C and D NEMA 4
Size
40 mm
Finish
Epoxy Coated
UNSPSC
39121545
Material
Plastic
Operator Type
Push/Pull
Terminal Type
Integral Ground Screw/Saddle Clamp
Contact Rating
10 A at 600 VAC, 5 A at 250 VDC
Enclosure Type
NEMA 3/3R/4/4X/12/13/IP65
Environmental Conditions
1 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Positions
2 Positions
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) Color
Red
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Size
40 mm
Component
Push Button
Manufacturer
Eaton
(Switching-Indication) Push Button Type
Standard
(Switching-Indication) Operation
Pull: Maintained
