Eaton E34FB24 E34 Pushbutton 24 Vac/dc

Product Description

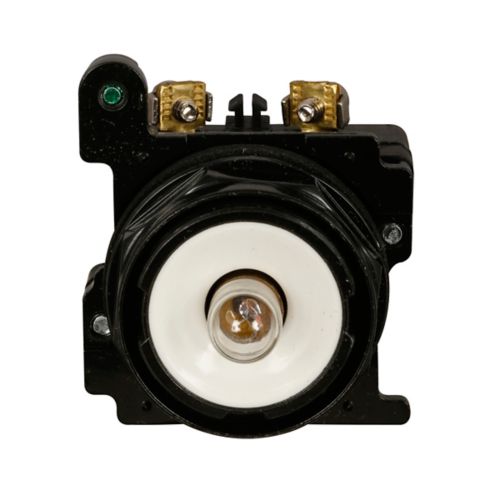

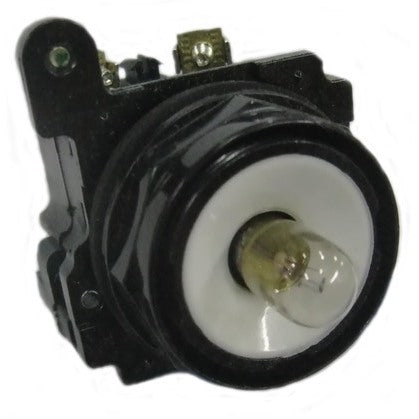

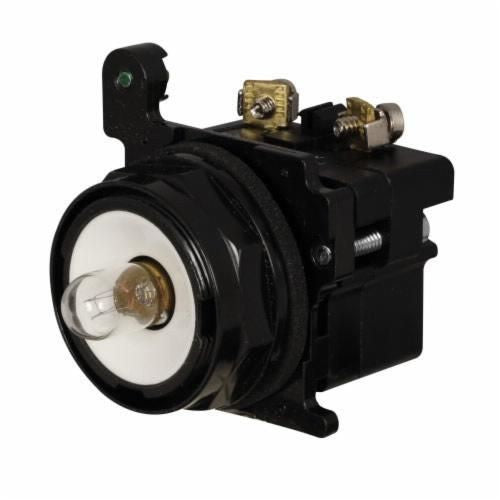

The Eaton E34FB24 is an E34 pushbutton, designed for indicating light applications. It features a corrosion-resistant, watertight/oiltight construction and an incandescent, full voltage light unit operating at 24 Vac/dc. The unit includes a standard actuator and a bayonet base LED lamp number.

• 30.5 mm size
• Corrosion Resistant Watertight/Oiltight
• Incandescent, full voltage light unit

Product Highlights

Eaton's E34FB24 is ideal for industrial applications requiring durable and reliable indicating lights.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34FB24

Technical Specifications

• Product Name: Eaton E34 pushbutton
• Catalog Number: E34FB24
• UPC: 782113702728
• Product Length/Depth: 2.4 in
• Product Height: 3.4 in
• Product Width: 2 in
• Product Type: Pushbutton
• Application: Indicating Light
• Special features: E34 series
• Type: 30.5 mm, Corrosion Resistant Watertight/Oiltight
• Actuator: Standard
• Contact configuration: 1 NO-1 NC
• Illumination: Illuminated
• Series: E34 Series
• LED lamp number: Bayonet base
• Light unit type: Incandescent, full voltage
• Light unit voltage: 24 Vac/dc
• Brand: Eaton
• Mounting Hole Size: 30 mm
• Supply Voltage: 24 VAC/VDC
• Lamp Type: Incandescent
• Bezel/Housing: Metal
• Enclosure Type: NEMA 1/2/3/3R/3S/4/4X/12/13/IP65
• Size: 30.5 mm
• Terminal Type: Screw
• Voltage Rating: 24 VAC/VDC
• Standard & Approvals: UL Listed, CSA, CE Certified, FDA Approved
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 3, NEMA 4
