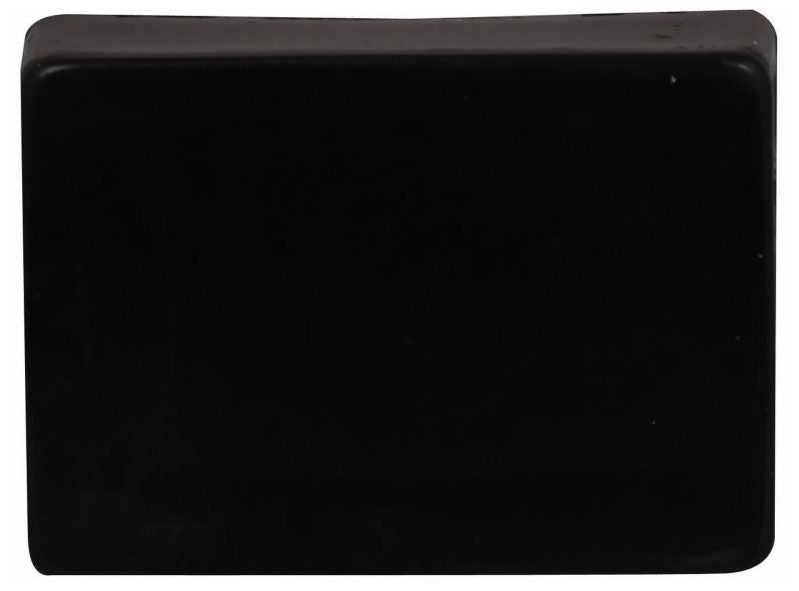

Eaton E30KC117 Molded Acetal Resin Legend Plate

Product Description

The EATON E30KC117 is a molded acetal resin component designed for use in industrial push button and control station assemblies. Acetal resin construction provides dimensional stability, low friction, and resistance to solvents and moisture, making it well suited for demanding control panel environments. This part serves as a legend plate or operator-access component in 30mm push button operator assemblies. Electricians and industrial controls technicians install this type of component during panel builds, retrofits, and operator interface replacements.

This component is used in industrial control panels, machine operator stations, and process control enclosures. It is appropriate for both new installations and service replacement applications where a 30mm push button or selector switch operator requires a legend plate or trim component. It is typically installed in light manufacturing, commercial building automation, and general industrial environments.

Key Features

• Molded acetal resin construction for chemical and moisture resistance
• Designed for 30mm push button operator assemblies
• Dimensional stability suited for industrial panel environments
• Lightweight at 0.1 pounds for ease of handling during installation

Compatibility

Designed as an OEM-style replacement component for 30mm industrial push button and control station assemblies requiring molded acetal resin legend plate or trim parts.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial controls technician. De-energize the control panel and follow applicable NFPA 70E lockout/tagout procedures before servicing any control station component. Verify operator assembly alignment and snap-fit engagement before returning the panel to service.

Technical Specifications

• Material: Molded Acetal Resin
• Weight: 0.1 pounds
• UPC: 78211321639

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30KC117
