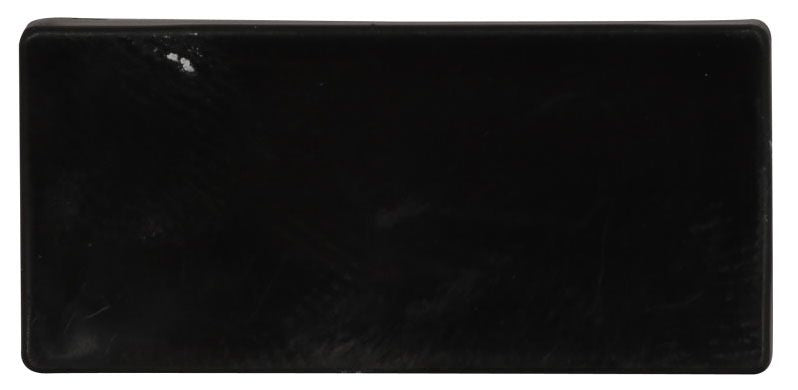

Eaton E30KB169 Molded Acetal Resin Pushbutton

Product Description

The EATON E30KB169 is a molded acetal resin component designed for use in industrial pushbutton and operator control assemblies. Acetal resin construction provides dimensional stability, low friction, and resistance to moisture and common chemicals, making it well suited for control station enclosures in demanding environments. Weighing just 0.01 pounds, this lightweight component integrates into Eaton E30 series control devices and is typically installed by industrial electricians and control panel technicians during new builds or replacement service.

This component is intended for use in industrial and commercial control panel applications where E30 series pushbutton operators are specified. It is suited for light manufacturing, process control, and machine tool environments. Installation typically occurs during control station assembly or field replacement of worn operator hardware. The molded acetal resin material supports reliable actuator function in moderate-duty cycling applications.

Key Features

• Molded acetal resin construction for moisture and chemical resistance
• Lightweight at 0.01 pounds for easy integration into control assemblies
• Designed for E30 series pushbutton operator stations
• Dimensional stability under varying temperature and humidity conditions

Compatibility

Designed as an OEM-style replacement component for Eaton E30 series pushbutton and operator control assemblies.

Installation Notes

Installation should be performed by a qualified electrician or control panel technician. De-energize and lockout the control panel per NFPA 70E procedures before servicing any pushbutton station components. Verify the component seats fully and securely within the operator housing before restoring power. No special tools are required for typical assembly or replacement.

Technical Specifications

• Material: Molded Acetal Resin
• Weight: 0.01 pounds
• UPC: 78211321584

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30KB169
