Eaton E30KB112 Molded Acetal Resin Component

Product Description

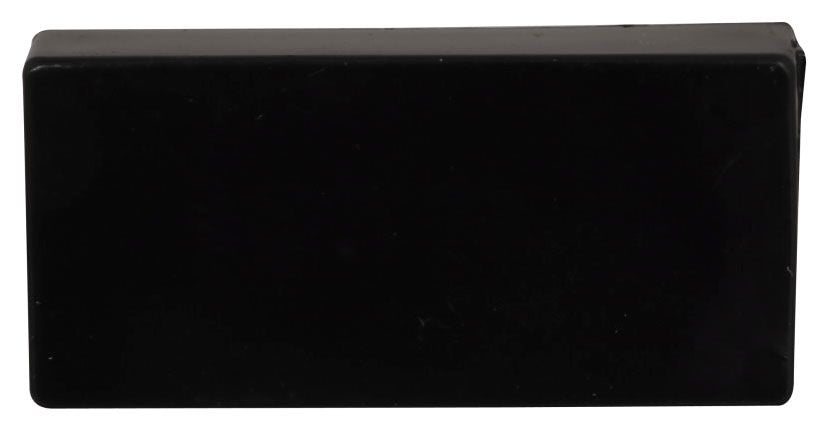

The EATON E30KB112 is a molded acetal resin operator component used in industrial pushbutton and selector switch assemblies. Acetal resin construction provides dimensional stability, low friction, and resistance to wear under repeated mechanical cycling. This type of component is found at the operator interface level of control panels and enclosures, typically installed and serviced by licensed electricians or qualified industrial maintenance technicians. Its compact form factor makes it suitable for space-constrained panel layouts where precise fit and durable material performance are required.

This component is designed for use in industrial and commercial control panel applications where operator interface hardware must perform reliably in demanding environments. Typical installation scenarios include motor control centers, machine control enclosures, and process control panels. It integrates with E30 series operator interface assemblies and is suitable for environments where chemical resistance and mechanical durability are prioritized.

Key Features

• Molded acetal resin construction offers low friction and high wear resistance
• Compact dimensions of 1.3 x 0.6 x 0.3 inches suit tight panel layouts
• Lightweight at 0.1 pounds for minimal load impact on assemblies
• Designed for repeatable mechanical performance in operator interface applications
• Part of the EATON E30 series operator component platform

Compatibility

Designed as an OEM-style replacement or supplemental component for EATON E30 series operator interface assemblies used in industrial pushbutton and selector switch applications.

Installation Notes

Installation of operator interface components should be performed by a qualified electrician in accordance with NFPA 70 (NEC) requirements. De-energize the control panel and verify absence of voltage before accessing any operator interface hardware. Handle acetal resin components carefully to avoid cracking under excessive force during assembly. Confirm correct part alignment with the surrounding operator assembly before returning the panel to service.

Technical Specifications

• Material: Molded Acetal Resin
• Dimensions (L x W x H): 1.3 x 0.6 x 0.3 inches
• Weight: 0.1 pounds
• UPC: 78211321561

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30KB112
