Eaton E30GM Operator, E30 Series, 30.5 mm

Product Description

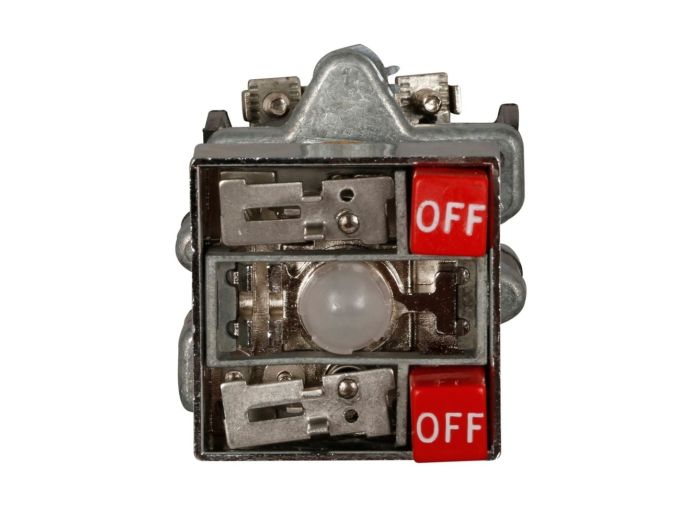

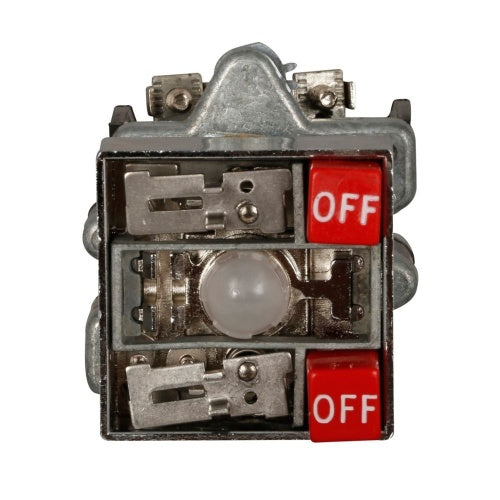

The Eaton E30GM is an E30 series, 30.5 mm, square multifunction operator. It is NEMA 3, 3R, 4, 12, and 13 rated and illuminated. This two-button operator has (OFF) release bars for each button, incandescent, full voltage light unit, and 120 Vac/dc LUV, 120PSB.

• Accommodates up to four single depth stackable contact blocks behind each operating button, up to eight circuits maximum.
• Indicating lights are supplied complete with either a transformer light unit up to 600 Vac supply line voltage or full voltage light unit up to 120 Vac/Vdc supply line voltage.
• Each operator has high pressure type seals to prevent the passage of oil and other contaminants through the operator into the contact structure or panel interior.

Product Highlights

The EATON E30GM operator is a versatile and durable component suitable for various industrial applications, offering reliable performance and clear indication.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30GM
• Country of Origin: United States

Technical Specifications

• NEMA Rating: NEMA 4
• Illumination: Illuminated
• DC Voltage: 120 VDC
• AC Voltage: 120 VAC
• Sub Component: Push Button Operator
• Component: Accessories
• Manufacturer: Eaton
• Size: 30.5 mm
• Operation: Top: Maintained
• Push Button Type: Two Button - (Off) Release Bars For Each Button
• Brand: EATON CORPORATION
• MPN: E30GM
• Type: Pushbutton
• IP/NEMA Rating: NEMA 3R, NEMA 12, NEMA 4
