Description

Product Description

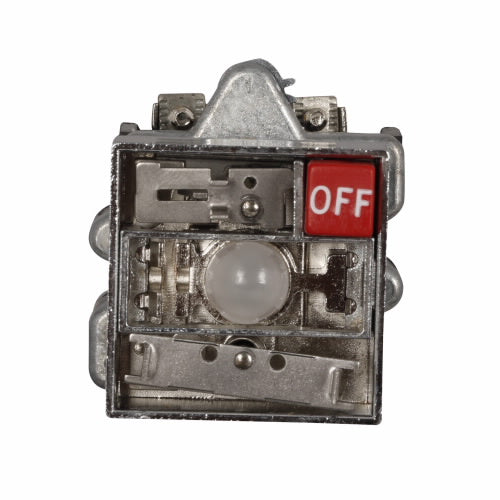

The EATON E30FX3 is a Cutler Hammer Eaton 30.5 mm square multifunction illuminated pushbutton operator designed for panel mounting with NEMA 3, 3R, 4, 12, and 13 ratings. This pushbutton operator features a two-button actuator with momentary operation on both top and bottom. It is illuminated by an incandescent transformer light unit.

  • Designed for panel mounting
  • NEMA 3, 3R, 4, 12, and 13 ratings
  • Two-button actuator with momentary operation

Product Highlights

The EATON E30FX3 is part of the Eaton E30 series and supports various industrial enclosure ratings for versatile application.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: E30FX3
  • Country of Origin: US
Technical Specifications
Part Number
E30FX3
Manufacturer
Cutler Hammer
Brand
Cutler Hammer
Type
30.5 mm Square Multifunction Pushbutton
Illumination
Incandescent Transformer Light Unit
Voltage
120 Vac Light Unit
Operating Mode
Bottom: momentary Top: maintained
Actuator
Two button
Mounting Type
Panel Mount
Enclosure Ratings
NEMA 3, 3R, 4, 12, 13
Series
Eaton E30
Certifications
UL Listed, CSA Certified
Item
Pushbutton Operator
Height
3.3"
Length
2.4"
Light Unit Type
Incandescent, Full Voltage
Notes
Light Unit Will Also Accept LED Lamp
Width
2.1"
Product Type
Square Multifunction Push Button
Voltage Rating
18 V ac/dc;24 V ac/dc
Lamp Type
Incandescent
NEMA Rating
NEMA Type 3, 3R, 4, 4X, 12, 13
Text Legend
OFF
Panel Cutout Size
30.5mm
Standards Met
UL Listed;CSA Certified
Mfr. No
E30FX3
Mfr.
Eaton Electrical
Constructional Feature
Oil Tight, Water Tight
Enclosure
NEMA 3/3R/4/12/13
Approval
UL, CSA
Lamp Voltage
24 V
Switch Type Function
Alternate Contact (Push-Push), Other
