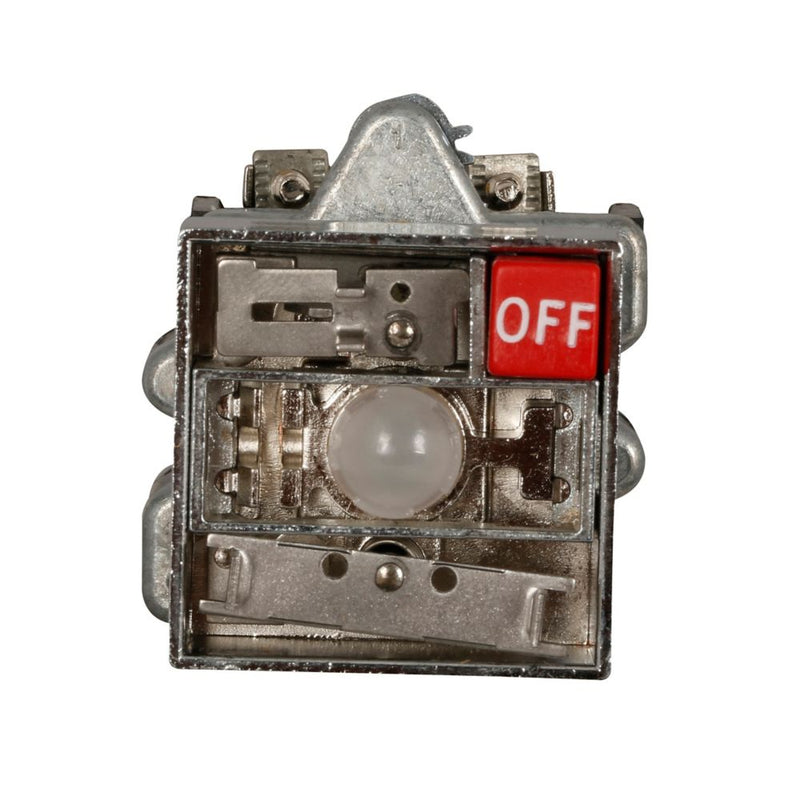

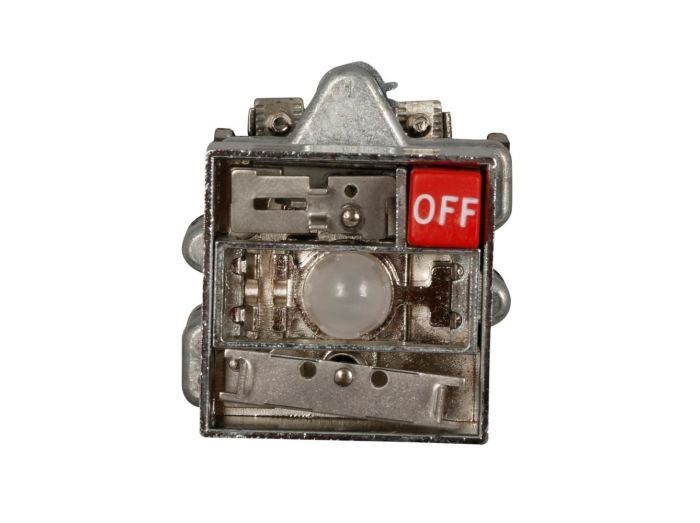

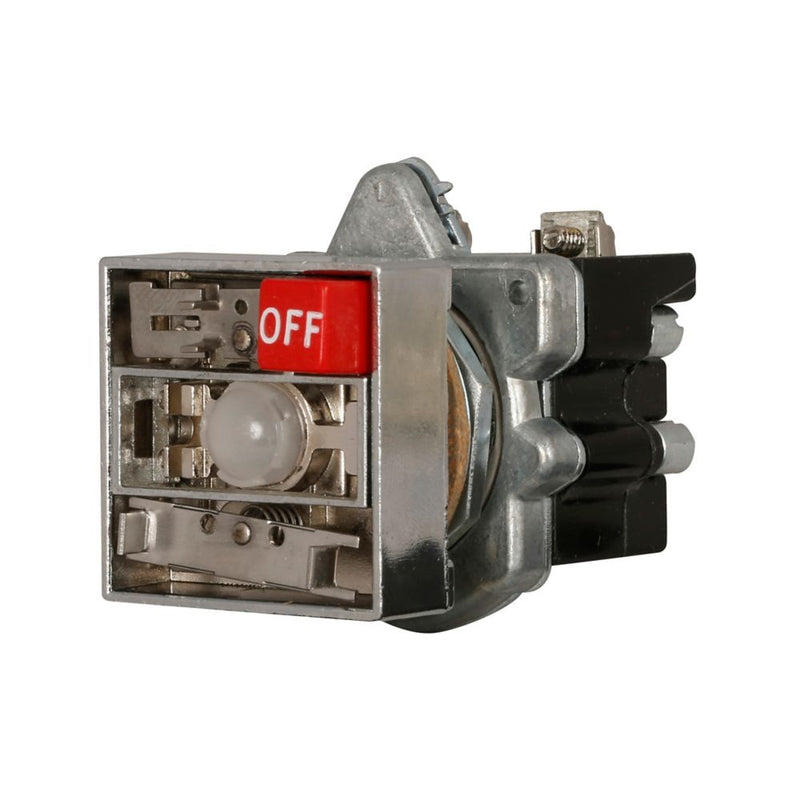

Eaton E30FA Multi-Function Square Illuminated Pushbutton Operator 30.5 mm (2) Button Operator

Product Description

The Eaton E30FA is a 30.5 mm square multifunction illuminated pushbutton operator designed for panel mounting with two buttons and mixed maintained/momentary operation. Features die cast construction to prevent the passing of oil and other contaminants. Ideal for a variety of industrial and OEM applications.

• Two button, (off) release bars for top button actuator
• 6PSB lamp number
• Transformer type light unit

Product Highlights

Eaton E30 series operator features a two-button actuator with the top button maintained and the bottom button momentary. It meets NEMA 3, 3R, 4, 12, and 13 environmental ratings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30FA

Technical Specifications

• Finish: Copper Nickel Polished Chrome
• UNSPSC: 39122216
• Material: Die Cast Zinc
• Lamp Type: Incandescent
• Application: Automation and Logic Control Equipment Applications
• Operator Type: (2) Button
• Enclosure Type: NEMA 3/3R/4/12/13
• Voltage Rating: 120
• Temperature Rating: -20 to 150
• Size: 30.5
• Type: Multi-Function Square
• Series: E30
• IP/NEMA Rating: NEMA 3R, NEMA 12, NEMA 4
• Manufacturer Part Number: E30FA
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Part Number: E30FA
• Brand: Eaton
• Category: Automation
• Item Subcategory: Automation Switch
• Actuator: Two button
• Operating Mode: Maintained (top), Momentary (bottom)
• Illumination: Illuminated
• Light Unit: Incandescent transformer, 120 VAC
• Environmental Rating: NEMA 3, 3R, 4, 12, 13
• Mounting: Panel mount
• Certifications: UL Listed, CSA Certified
• Release Bar: (OFF) release bars for each button
• Alternate Mfr Part Number: E30FA
