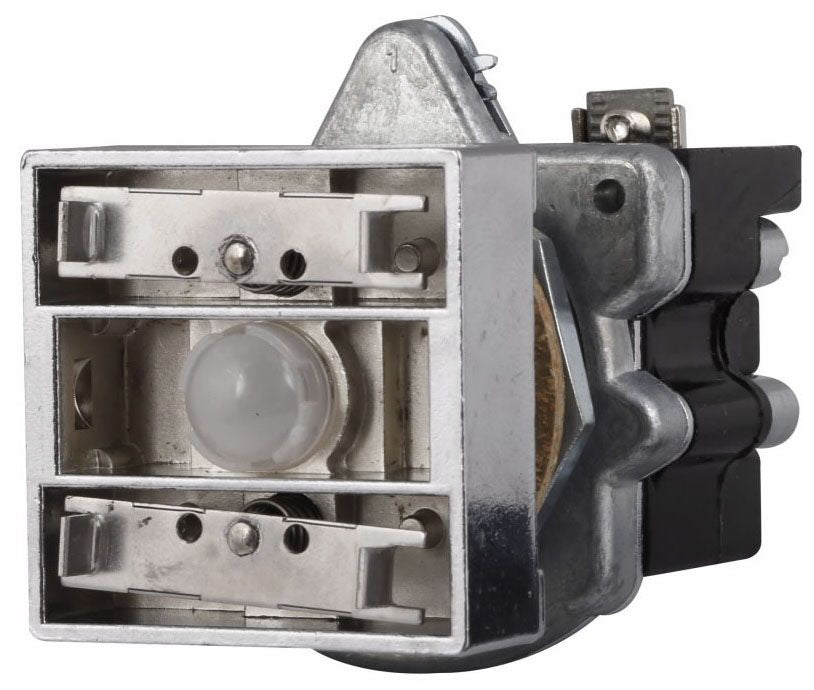

Eaton E30EG Button Style E Pushbutton Operator

Product Description

The EATON E30EG is a Button Style E pushbutton operator designed for use in industrial and commercial control panel applications. This operator serves as the actuator component in a pushbutton station or enclosure, providing the mechanical interface between the operator and the control circuit. Weighing 0.5 pounds, the E30EG is a compact, robust operator suited for panel mounting in demanding environments. Electrically licensed technicians and industrial electricians are the primary installers of this component in motor control, machinery, and process control systems.

The E30EG is used in control panel assemblies where a pushbutton operator is required to initiate or interrupt a control circuit. Typical applications include motor start/stop stations, machine control consoles, and industrial enclosures in both light commercial and heavy industrial settings. The Button Style E form factor is suited for standard 30mm panel cutout installations commonly found in manufacturing, utilities, and facility automation environments.

Key Features

• Button Style E actuator design for 30mm panel cutout mounting
• Compact and lightweight at 0.5 pounds
• Suited for industrial control panel and motor control station applications
• Designed for use as part of a modular pushbutton assembly

Compatibility

Designed as an OEM-style replacement or new-installation pushbutton operator for 30mm industrial control panel assemblies.

Installation Notes

Installation of this pushbutton operator should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel and verify the absence of voltage before beginning any installation or replacement work. Ensure the panel cutout dimensions match the operator body before mounting. Do not overtighten the mounting hardware, as this may damage the operator housing or panel surface.

Technical Specifications

• Weight: 0.5 pounds
• UPC: 78211321461

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30EG
