Eaton E30CF Indicating Light E30 Series 30.5 mm

Product Description

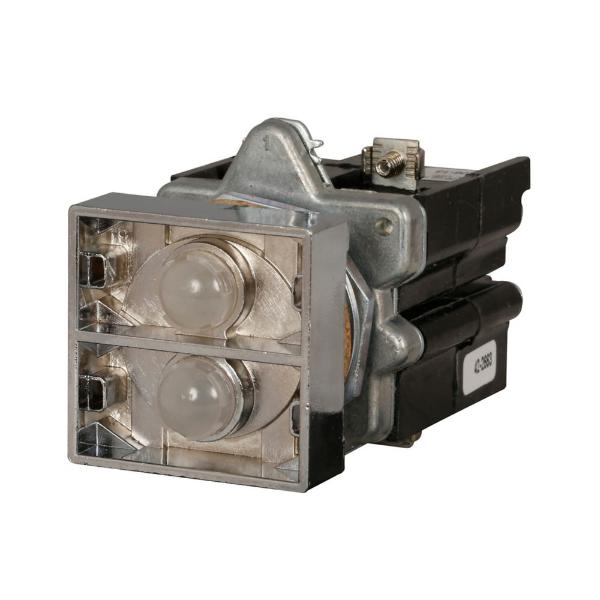

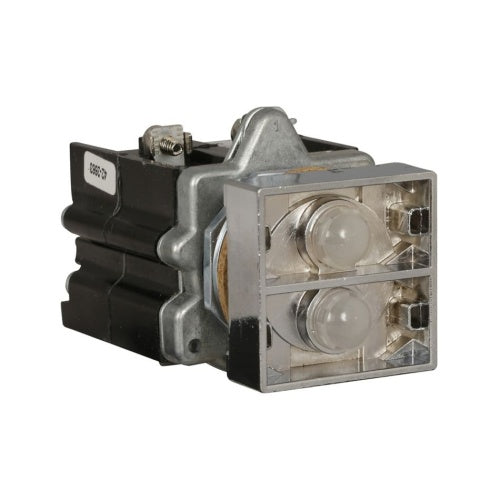

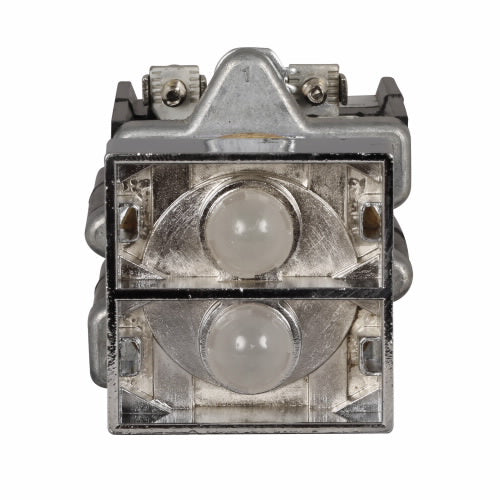

The Eaton E30CF indicating light from the E30 series, is a 30.5 mm metallic, dual unit square multifunction device. It features an incandescent, full voltage light unit and operates at 6 VAC/DC. The pushbutton operators accommodate up to four single depth stackable contact blocks behind each operating button, up to eight circuits maximum.

• Accommodates up to four single depth stackable contact blocks.
• Features high pressure type seals to prevent passage of oil and contaminants.
• Uses a Buna N cork gasket to maintain oiltightness.

Product Highlights

This indicating light is designed for robust performance and easy integration in various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30CF
• Country of Origin: US

Technical Specifications

• NEMA Rating: NEMA 3S
• DC Voltage: 6 VDC
• AC Voltage: 6 VAC
• Manufacturer: Eaton
• Size: 30.5 mm
• Sub Component: Indicating Light
• Item: Indicator
• Actuator Type: Dual unit square multifunction
• Led Lamp Number: 6PSB
• Light Unit Type: Incandescent, Full Voltage
• Light Unit Voltage: 6V AC/DC
• Nema Enclosure Rating: NEMA 3S NEMA 12 NEMA 13 NEMA 3 NEMA 3R NEMA 4
• Notes: Light Unit Will Also Accept LED Lamp
• Type: 30.5 mm, Metallic
• Width: 2.3"
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Head
• Product series / family name: E30 series
• Functions: 30mm square multifunction watertight/oil tight ind. light
• Supply voltage (AC): 6Vac
• Supply voltage (DC): 6Vdc
• Manufacturer product status: Commercialized
• Brand: Cutler Hammer/Eaton
• MPN: E30-CF
• NEMA: 3, 3R, 3S, 4, 12, 13
• Number of Lights: 2
• Lens Style: F
• Light Power Source: Full Voltage, 6VAC/DC
• Lamp Type: Incandescent
• Lamp Number: 6PSB
