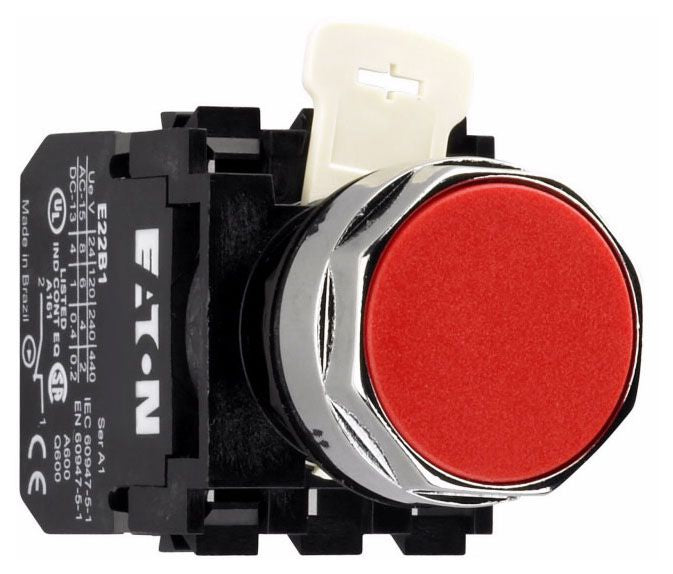

Eaton E22PB1 Flush Type Push Button 22.5mm

Product Description

The EATON E22PB1 is a flush type push button operator designed for industrial and commercial control panel applications. This operator mounts in a standard 22.5mm panel cutout and provides a low-profile, flush-face actuation point for control circuits. At 0.03 pounds and compact dimensions of 1.5 inches by 1.5 inches by 0.5 inches, it is well suited for space-constrained enclosures. Electricians and panel builders install this type of operator when a recessed or flush button profile is required to prevent accidental actuation in demanding environments.

The E22PB1 is used in control panel builds, machine tool wiring, and industrial automation enclosures where a 22.5mm operator is specified. Typical applications include start, stop, and reset functions on motor control centers, pump panels, and light commercial equipment control stations. The flush mounting style makes it appropriate for installations where the operator face must sit even with or slightly below the panel surface.

Key Features

• Flush-face operator profile reduces risk of accidental actuation
• 22.5mm panel cutout fits standard industrial operator mounting holes
• Compact form factor at 1.5 inches by 1.5 inches by 0.5 inches
• Lightweight construction at 0.03 pounds

Compatibility

Designed as an OEM-style operator for 22.5mm control panel cutouts typical of industrial push button station assemblies.

Installation Notes

Installation is performed by a licensed electrician following applicable NEC requirements for control circuit wiring. De-energize the panel and verify zero voltage before mounting or wiring the operator. The operator is inserted through the front of the panel cutout and secured from the rear per the manufacturer mounting instructions. Do not exceed the rated electrical load for the contact block used with this operator.

Technical Specifications

• Mounting Type: Flush
• Panel Cutout Size: 22.5mm
• Dimensions (L x W x H): 1.5 inches x 1.5 inches x 0.5 inches
• Weight: 0.03 pounds

Standard Information

• Brand: EATON
• Manufacturer Part Number: E22PB1
