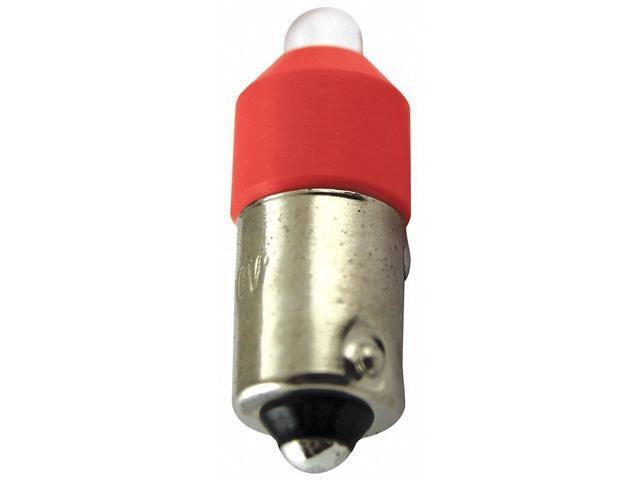

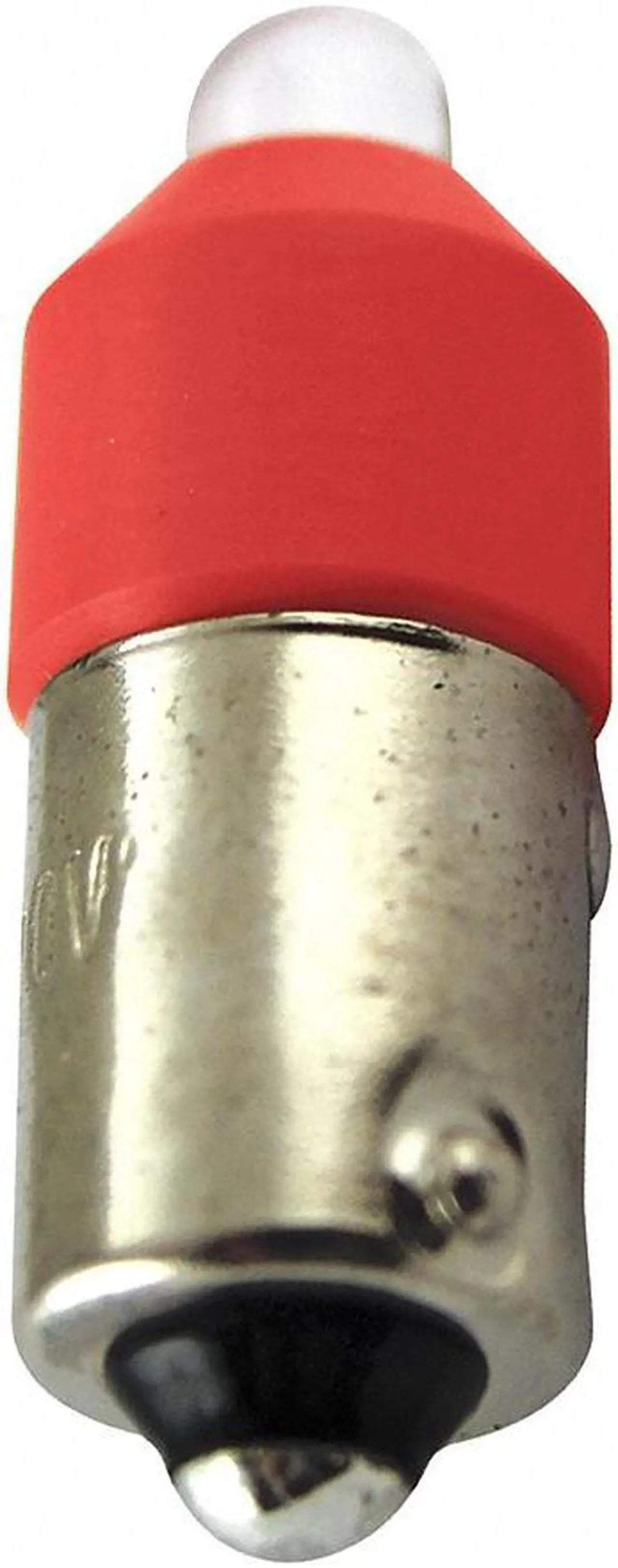

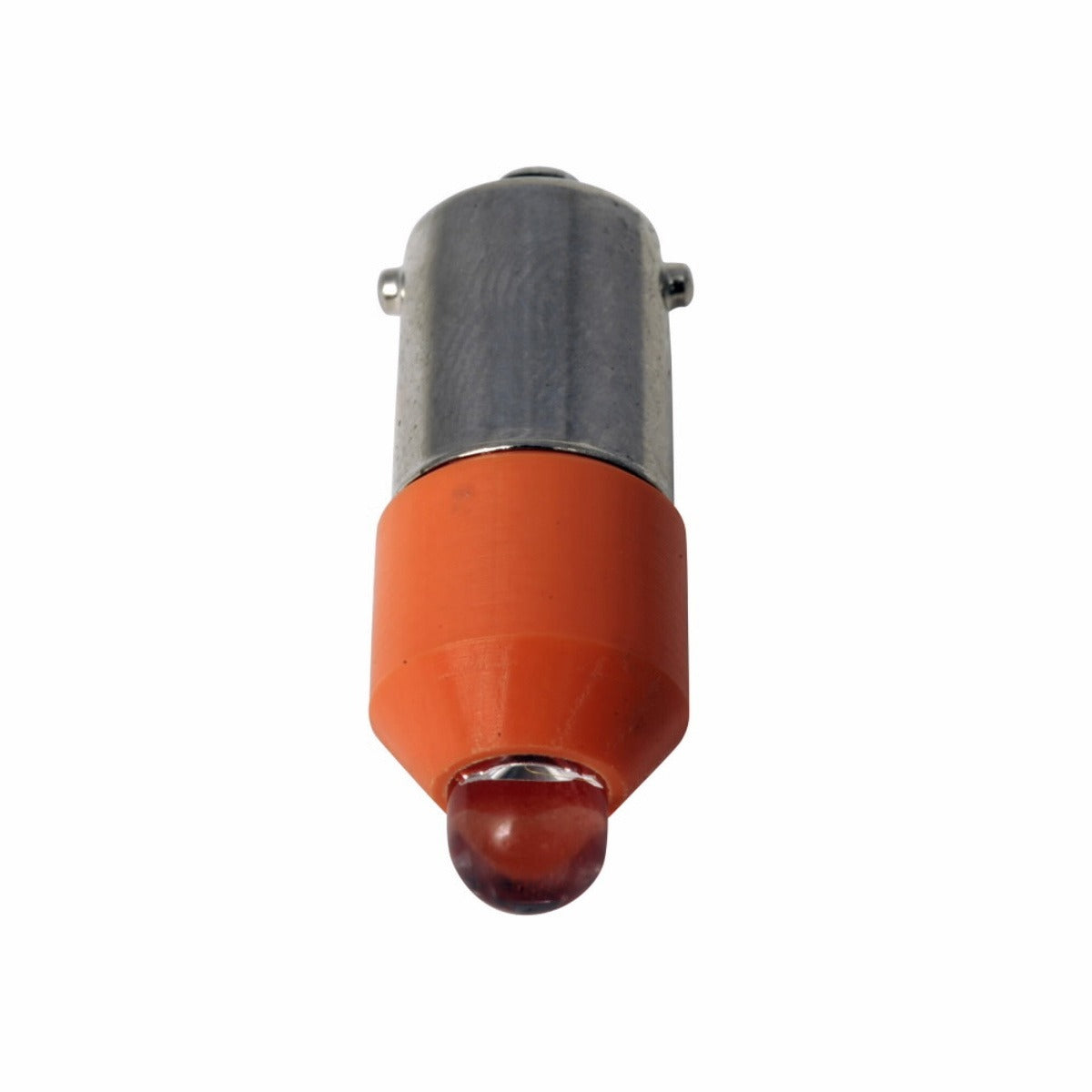

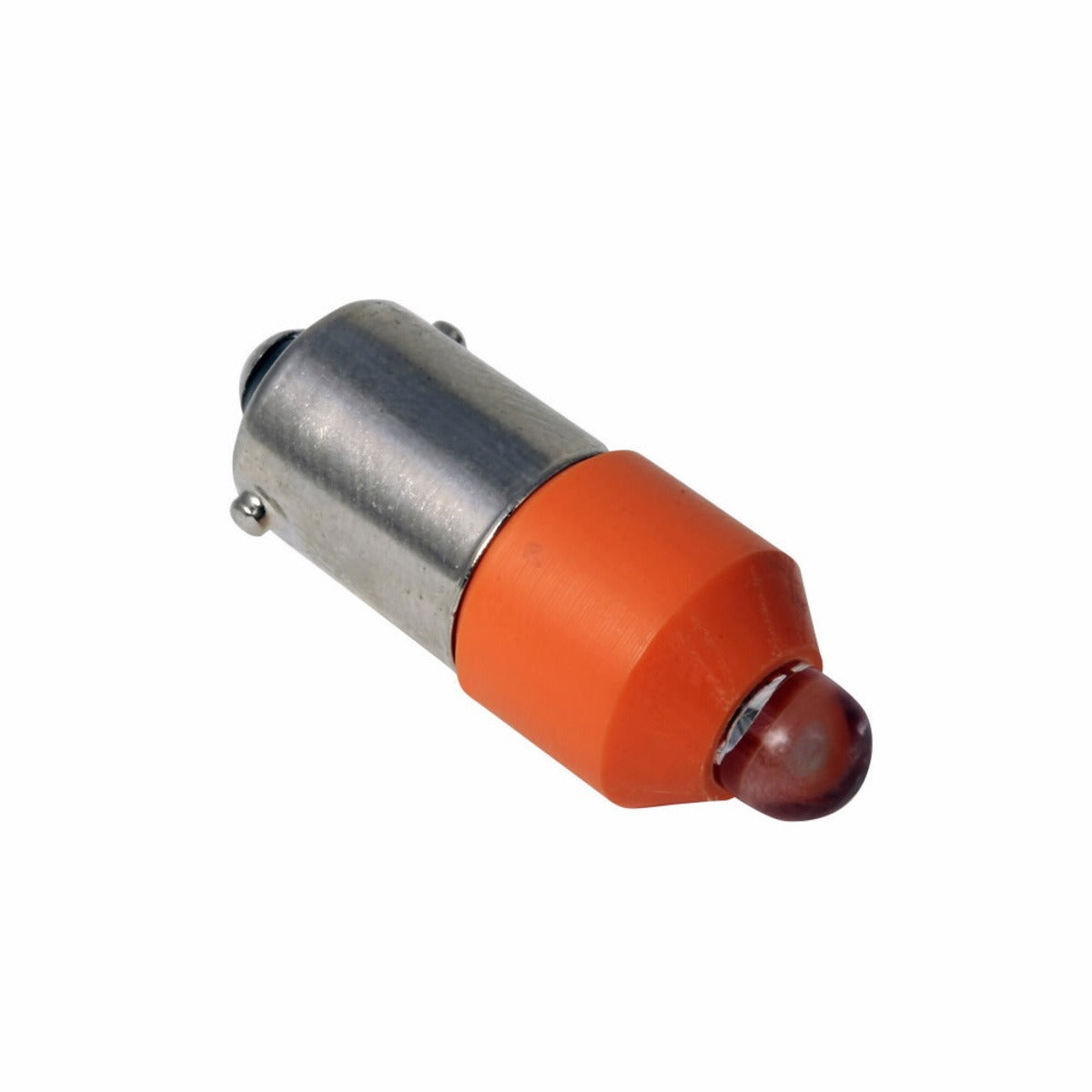

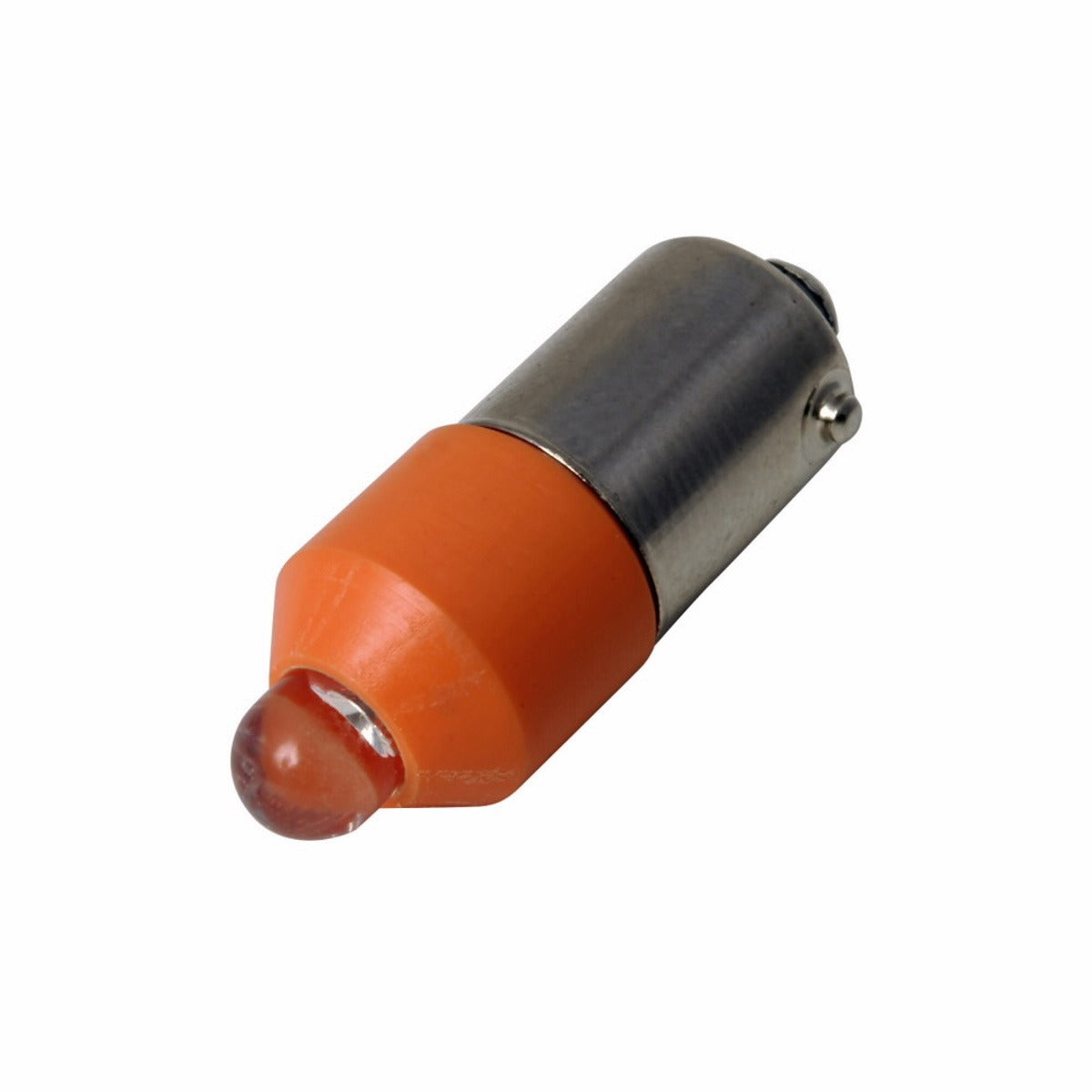

Eaton E22LED612RN Push Button Standard LED Lamp 6 to 12 VAC/VDC (22.5 mm) CHE22LED612RN

EATON
Brand: EATON
SKU: E22LED612RN
Availability: In Stock

Ships same day if ordered by 12 pm
$68.95
$68.95
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton E22LED612RN is a pilot device LED lamp for 22.5 mm pushbutton and indicator applications. It operates on 6–12 VAC/VDC and provides continuous illumination of approximately 6 lumens. The lamp uses a T3 1/4 miniature bulb shape in a stainless steel enclosure and is compatible with E22, 10250T, and E34 Ashville pushbuttons, serving as a pushbutton accessory for indicator and control panels.

  • Rated voltage: 6–12 VAC/VDC; continuous LED operation
  • Mounting diameter: 22.5 mm (E22); compatible with E22, 10250T, and E34 units
  • Light output ~6 lumens; T3 1/4 bulb shape; stainless steel enclosure

Product Highlights

22.5 mm pilot LED lamp, 6–12 VAC/VDC, continuous 6 lm output, compatible with E22/E34/10250T pushbuttons

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: E22LED612RN
  • Country of Origin: Dominican Republic
Technical Specifications
Manufacturer
Eaton
Manufacturer Part Number
E22LED612RN
Brand
Eaton
Series
E22 Ashville
Lamp Type
LED
Input Voltage
6-12 VAC/VDC
Operation Mode
Continuous
Mounting Diameter
22.5 mm (E22)
Mounting Type
Pushbutton
Compatible With
E22, 10250T, E34
Light Output
6 lumens
Bulb Shape
T3 1/4
Bulb Base Type
Miniature bayonet (BA9s)
Wattage
0.25 W
Enclosure Material
Stainless steel
Certifications
CSA C22.2; UL 508; BS 4794; IEC 337-1; IEC 947-5-1 MTTA; CE Marked; Lloyd's Register Certified
GTIN / UPC
00782113504087 / 782113504087
Bulb Life (average)
25,000 hr
Application
Pilot/indicator lamp for pushbuttons, control panels and related assemblies
Replacement Part Number
CHE22LED612RN
Physical Dimensions
0.375 x 0.375 x 1.1 in (L x W x H)
