Eaton E22LED120WN LED Bulb 120 VAC/VDC

Product Description

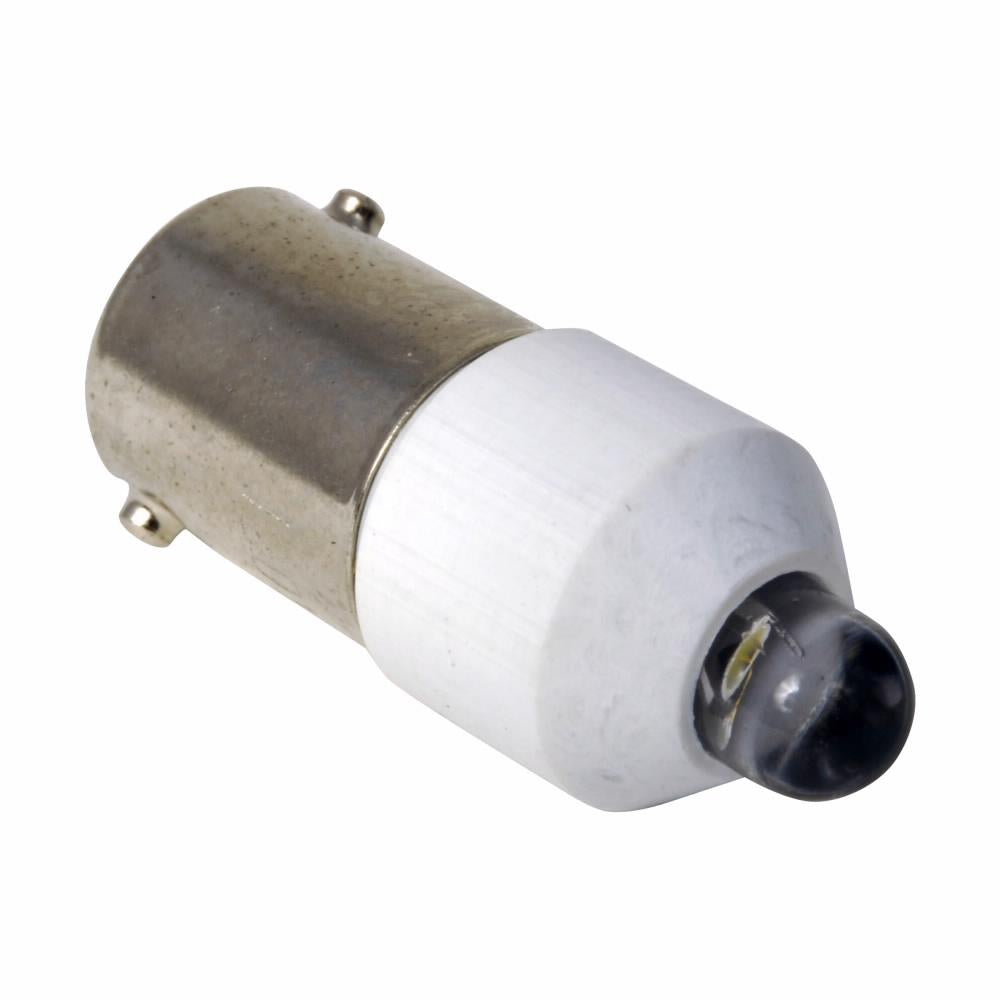

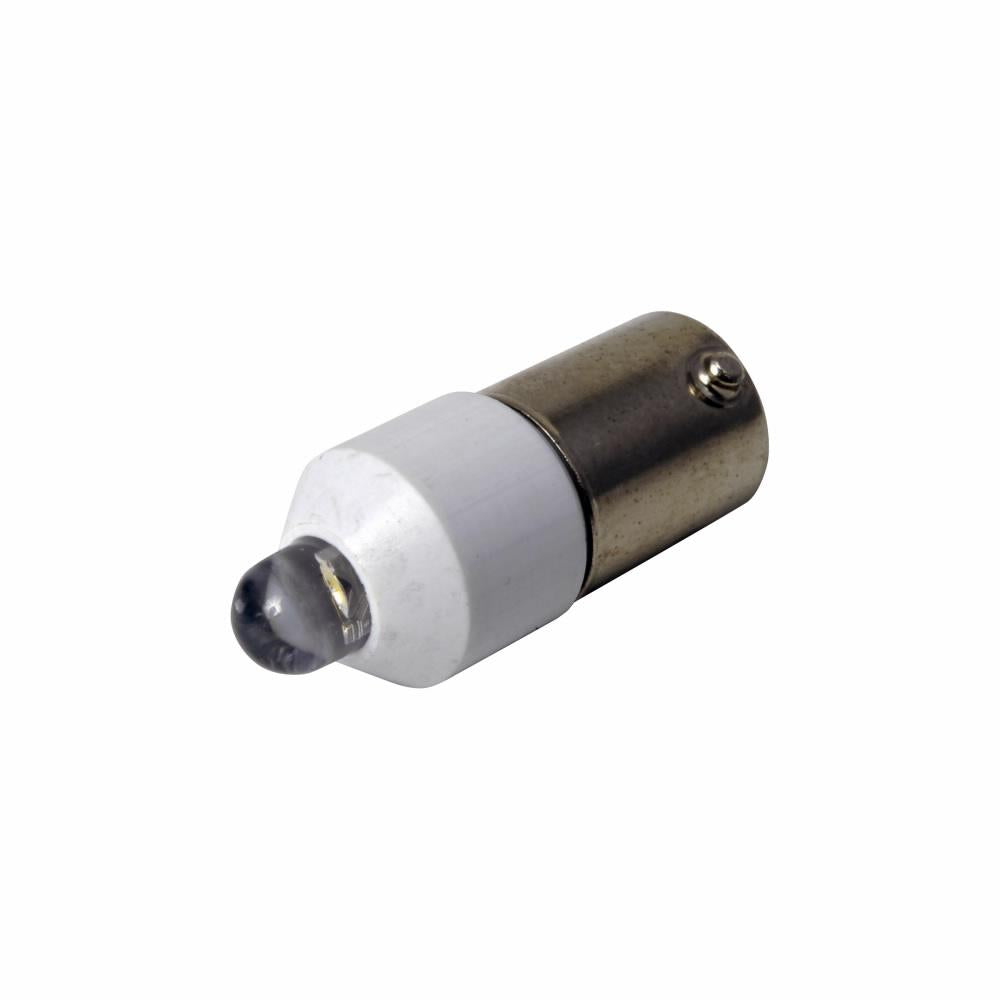

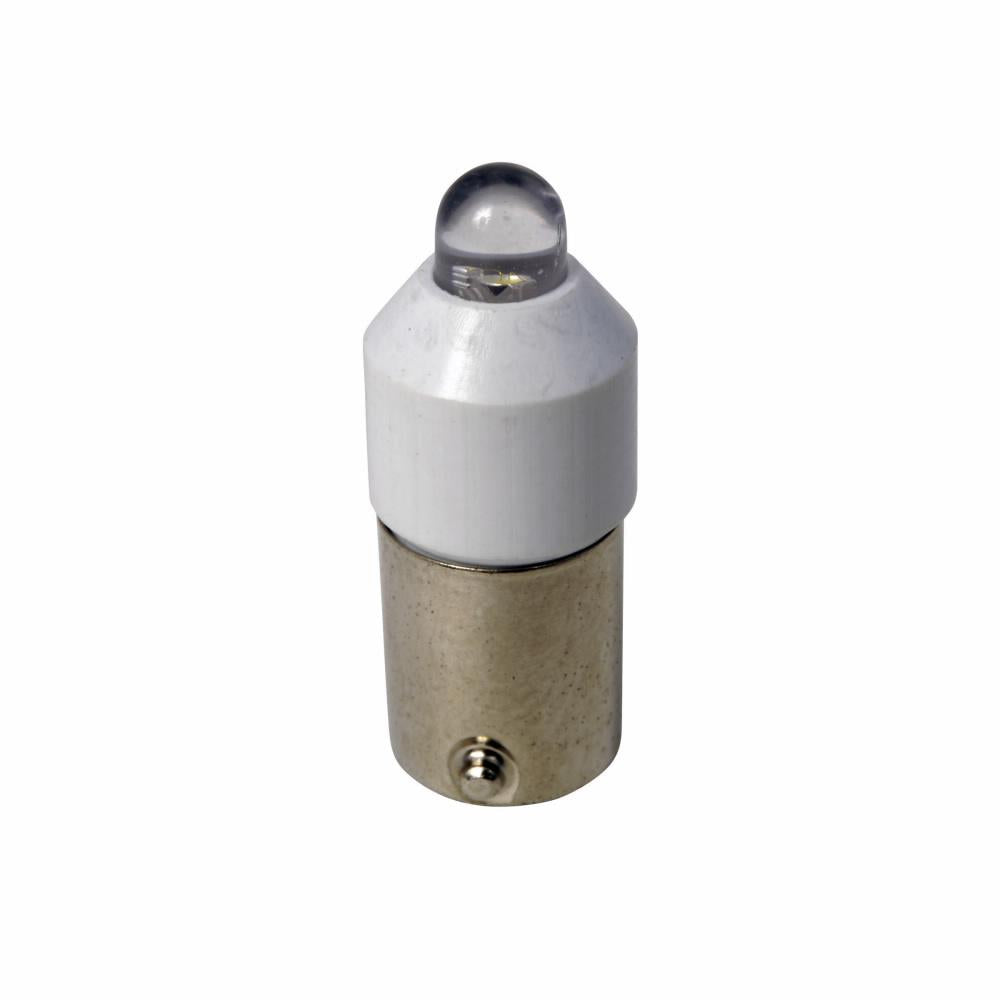

The Eaton E22LED120WN is a super bright LED bulb from the E22 Ashville series. This LED lamp operates at 120 VAC/VDC and features a BA9s miniature bayonet lamp base and T3.25 shape. It is designed for use with 10250T, E34, E22 and EM22 Series switches and automation and logic control equipment applications.

• 22.5 mm space saving design and modular construction
• Compatible with 10250T, E34, E22 and EM22 Series switches
• Heavy duty zinc die cast construction

Product Highlights

This EATON LED bulb provides continuous illumination with white light and is suitable for various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E22LED120WN
• Country of Origin: DO

Technical Specifications

• Color: White
• Series: E22 Ashville
• Type: Super Bright
• Voltage Rating: 120 VAC/VDC
• Lamp Base Type: BA9s Miniature Bayonet
• Lamp Type: LED
• Shape: T3.25
• Application: Automation and Logic Control Equipment Applications
• Standards/Approvals: UL 508|CE Marked|CSA C22.2|BS 4794|IEC 337-1|Lloyd's Register Certified|IEC 947-5-1 MTTA
• Size: 22.5 mm
• Main function: Lighting bulb (LED)
• Functions: LED bulb - continuous illumination
• Supply voltage (AC): 120Vac
• Supply voltage (DC): 120Vdc
• Technical compatibility with: E34 series
• Manufacturer product status: Commercialized
• Enclosure Material: Stainless Steel
• Lumens: 6 Lumen
• Used With: 10250T, E34 and E22 Ashville Push Buttons and Indicating Lights
