Eaton E22D24C E22 Pushbutton 24 VAC/VDC

Product Description

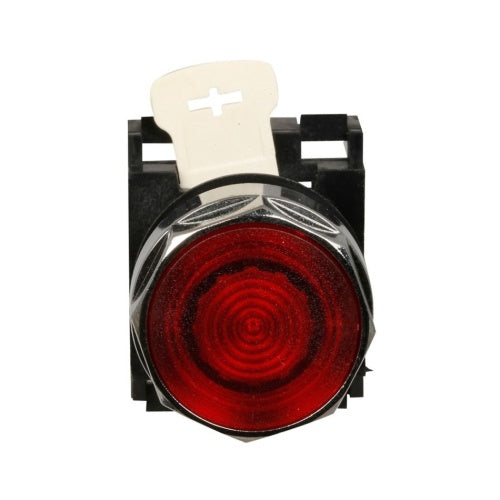

The Eaton E22D24C E22 pushbutton is a non-metallic indicating light designed for heavy-duty use. This PresTest incandescent full voltage unit includes 1NO and 1NC contacts and operates at 24 Vac/dc. It is suitable for various applications requiring reliable and durable pushbuttons.

• LED compatible for all illuminated operators

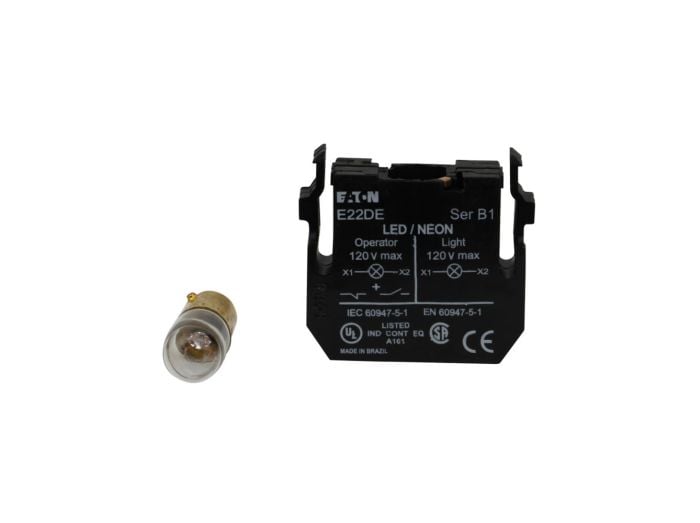

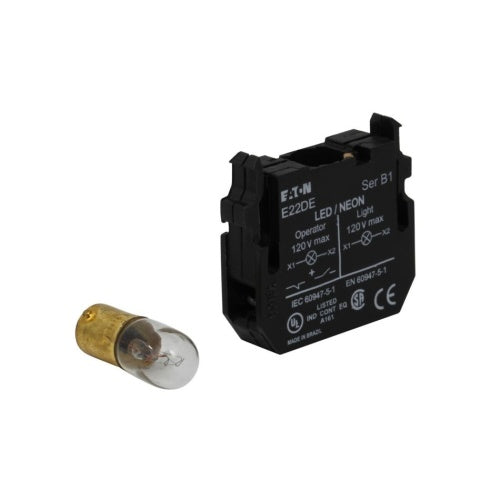

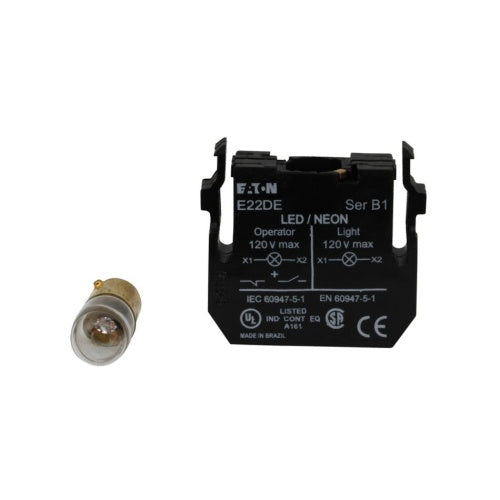

• Includes a T3- 1/4(BA9) Bayonet Base Lamp
• Heavy-duty, non-metallic construction

Product Highlights

The E22D24C pushbutton is ideal for industrial applications needing robust and clear indication.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E22D24C

Technical Specifications

• Product Name: Eaton E22 pushbutton
• Catalog Number: E22D24C
• UPC: 782113466927
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 2 in
• Compliances: CE Marked
• Certifications: CSA Certified UL 508 IEC 947-5-1 MTTA Lloyd's Register Certified
• Catalog Notes: For all illuminated operators LED compatible. Includes a T3- 1/4(BA9) Bayonet Base Lamp.
• Global Catalog: E22D24
• Product Type: Pushbutton
• Type: 22.5 mm, Non-metallic Heavy-Duty
• Light unit type: Incandescent, full voltage
• LED lamp number: #1819
• Voltage rating: 24 Vac/dc
• Series: E22 Series
• Actuator Type: Prestest
• Brand: Eaton - Cutler Hammer
• Contact Configuration: 1 NO 1 NC
• For Use With: E22 Series
• Lamp Type: Incandescent
• Manufacturer Part Number: E22D24C
• Operating Voltage: 24 V
• Supply Voltage: 24 VAC/VDC
• Termination: Lugs
• UPC Code: 782113480329
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Light Unit Type: Incandescent, full voltage
• Lens Type: Plastic
• Actuator: PresTest
• Size: 22.5 mm
• AC Voltage: 24 VAC
• DC Voltage: 24 VDC
• Component: Push Button
• Push Button Type: Prestest
