Product Description

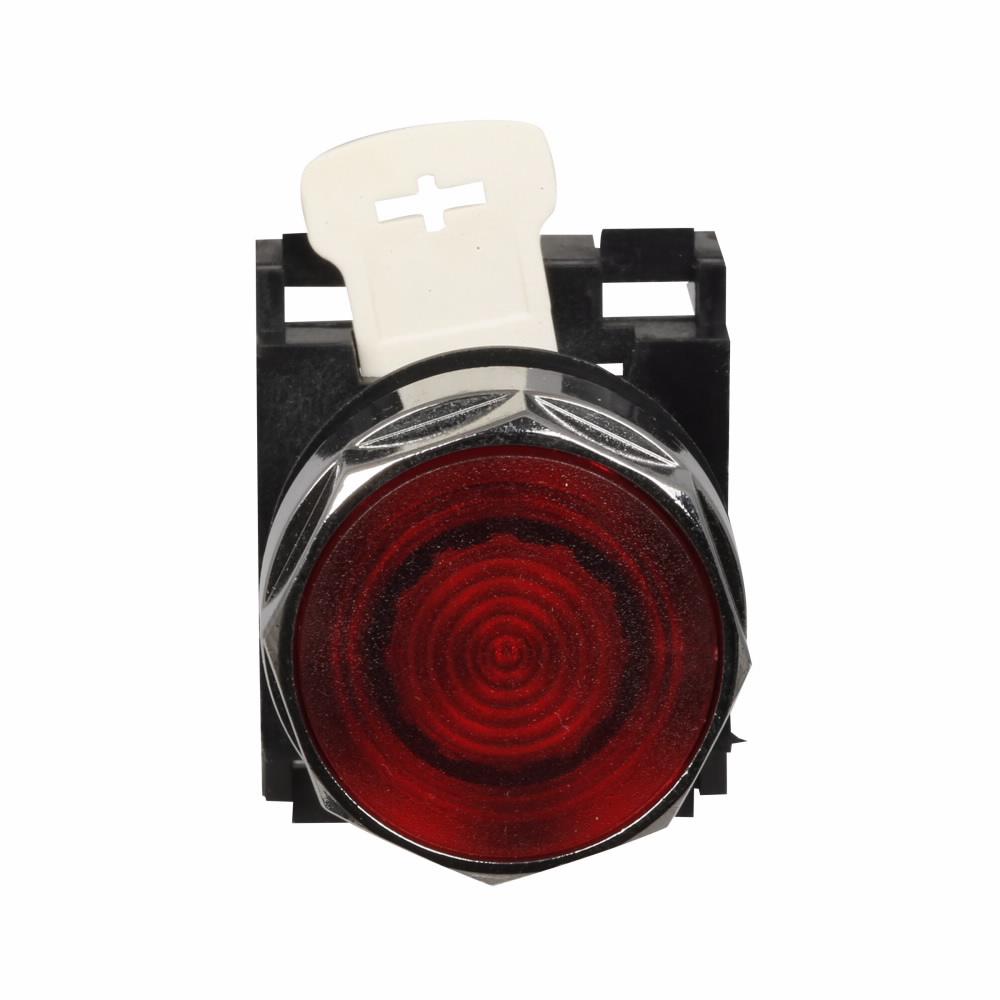

The EATON E22D24 is a full voltage heavy-duty non-metallic light unit. This 22.5 mm incandescent lamp operates at 24 VAC/VDC. It is designed for use with illuminated operators and is LED compatible. The light unit is suitable for electrical assemblies, panels, OEMs, and automation and logic control equipment applications.
- Incandescent lamp type
- Voltage rating of 24 VAC/VDC
- 22.5 mm size
Product Highlights
The EATON E22D24 light unit is a reliable component for industrial heavy-duty pushbutton applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: E22D24
-
Country of Origin: Germany
Technical Specifications
-
Series: E22 Series
-
Type: Full Voltage Heavy Duty Non-Metallic
-
Size: 22.5 mm
-
Lamp Type: Incandescent
-
Voltage Rating: 24 VAC/VDC
-
LED lamp number: #1819
-
Product Name: Eaton E22 pushbutton
-
Catalog Number: E22D24
-
UPC: 782113466927
-
Product Length/Depth: 2 in
-
Product Height: 1 in
-
Product Width: 2 in
-
Compliances: CE Marked
-
Certifications: CSA Certified UL 508 IEC 947-5-1 MTTA Lloyd's Register Certified
-

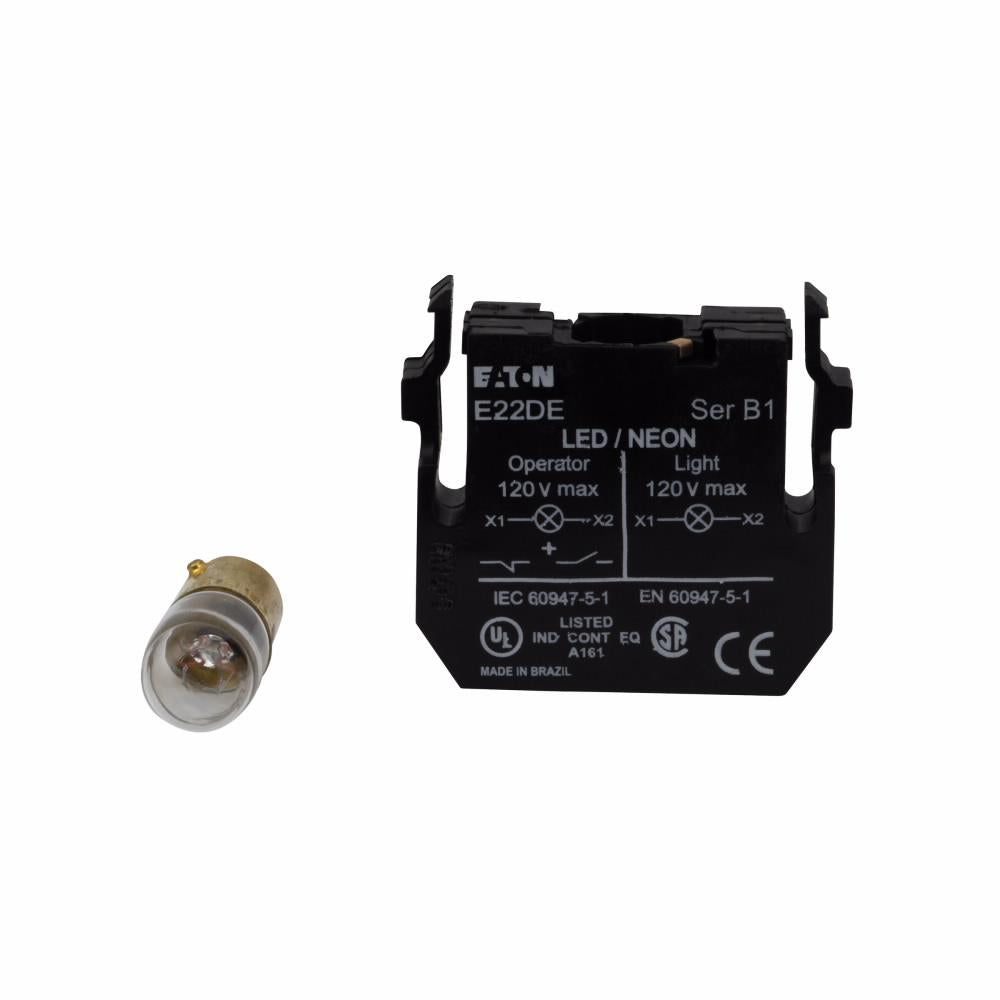

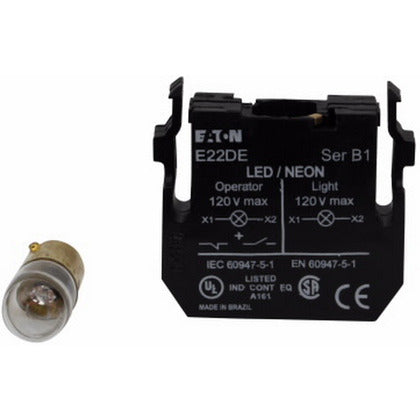

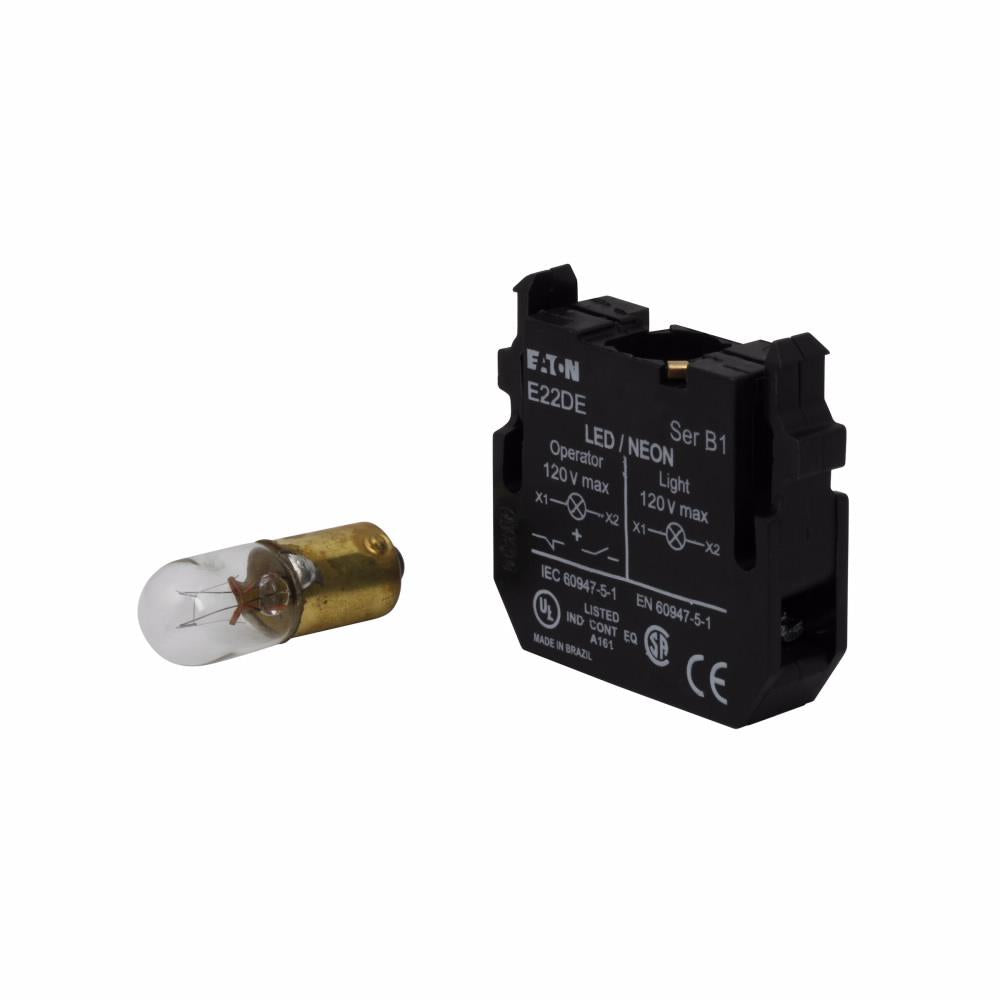

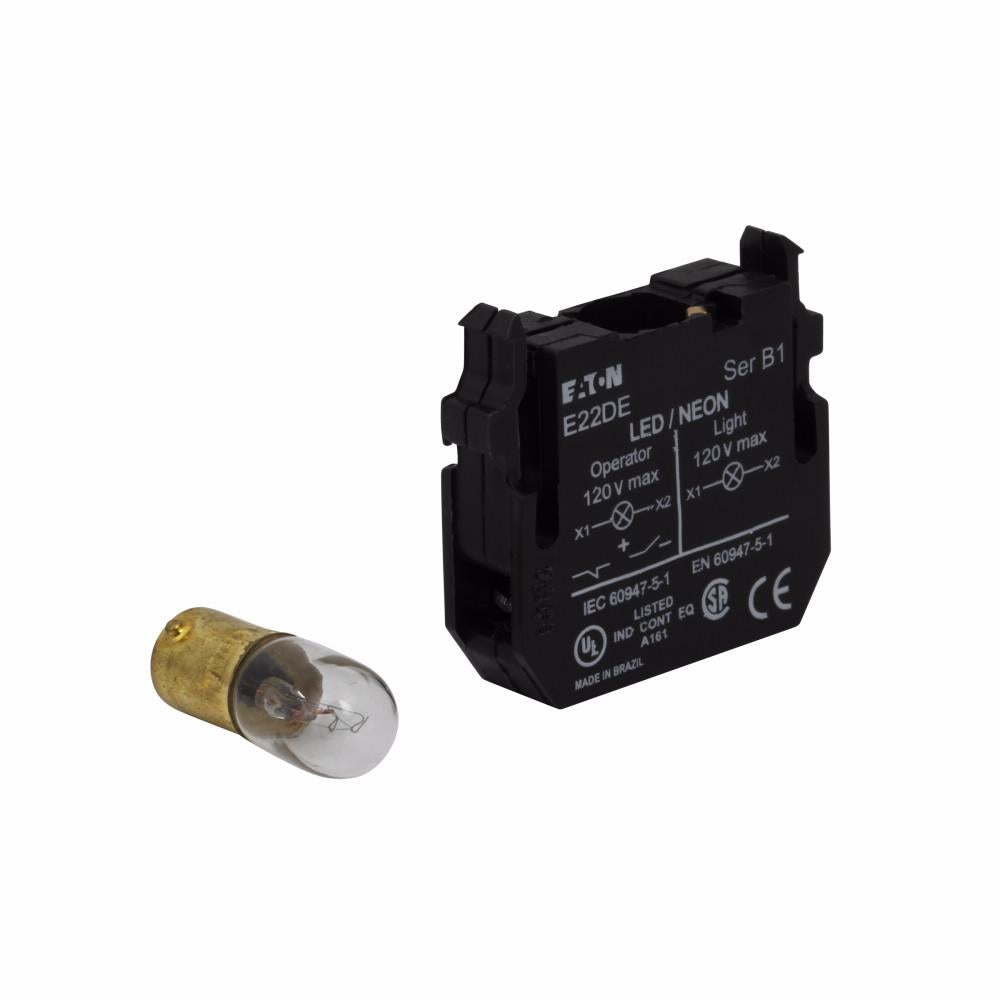

Catalog Notes: For all illuminated operators LED compatible. Includes a T3- 1/4(BA9) Bayonet Base Lamp.
-
Global Catalog: E22D24
-
Product Type: Pushbutton
-
Light unit type: Incandescent, full voltage
-
Volts AC Control: 24
-
Mounting: Front
-
UNSPSC: 39121544
-
Approval: UL 508, CSA, CE
-
Application: Electrical Assemblies, Panels, OEMs, Automation and Logic Control Equipment Applications
-
Lamp Number: 1819
-
Accessory Type: Replacement Lamps
-
Lamp Input Type: 24 Volt AC at 50/60 Hertz, 24 Volt DC Full Voltage
-
Alternate Mfr Part Number: E22D24
-
Brand: Eaton - Cutler Hammer
-
For Use With: E22 Series
-
Operating Voltage: 24 V
-
Supply Voltage: 24 VAC/VDC
-
Termination: Lugs
-
UPC Code: 782113466927
