Eaton E10T206AS Toggle Switch DPST 1/2 hp (1.3 in L x 0.7 in W x 1.1 in H)

EATON
Brand: EATON
SKU: E10T206AS
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

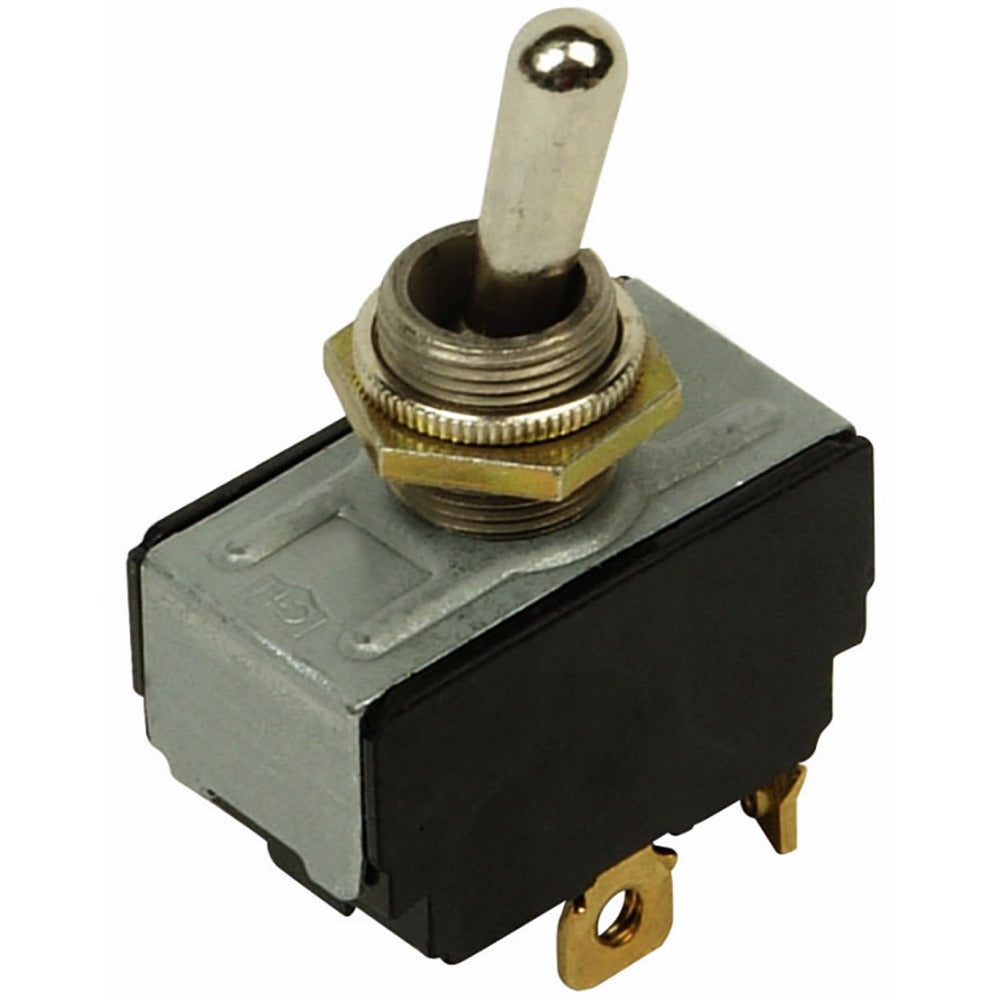

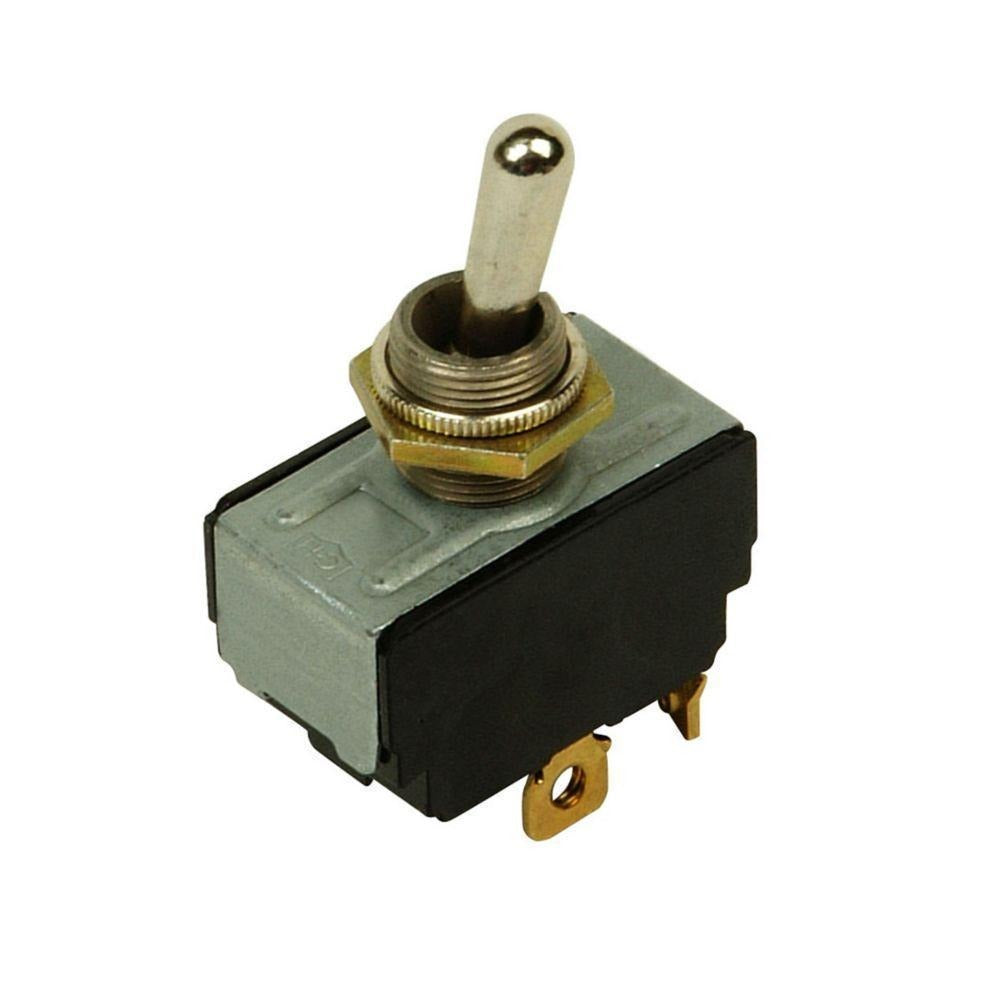

The Eaton E10T206AS is a DPST bat-handle toggle switch rated for 6 A and 1/2 hp, designed for general-purpose light industrial and OEM retrofit applications. It is AC rated for 125 VAC and 28 VDC, features a toggle bat lever actuator, threaded panel mounting and screw terminals, and is specified for approximately 6000 operating cycles with compact dimensions of 1.3 x 0.7 x 1.1 inches.

  • Electrical rating: 6 A at 125 VAC and 28 VDC; 1/2 hp power rating; DPST contact configuration
  • Mechanical features: toggle bat lever actuator, metal toggle length ~0.56 in, threaded bushing mounting
  • Terminals and durability: screw terminals, approximately 6000 operating cycles; compact dimensions 1.3 in L x 0.7 in W x 1.1 in H

Product Highlights

DPST bat-handle toggle switch; 6 A at 125 VAC; screw terminals; threaded mounting; 1/2 hp rating

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: E10T206AS
Technical Specifications
Brand
Eaton
MPN
E10T206AS
Series
E10
Type
AC rated On/Off toggle switch
Contact configuration
DPST (double pole single throw)
Number of poles
2
Circuit operation
On-Off (maintained)
Current rating
6 A
Voltage rating
125 VAC / 28 VDC
Power rating
1/2 hp
Actuator
Toggle bat lever (bat-handle)
Toggle length
0.56 in
Mounting type
Threaded bushing
Bushing mounting (OD x L)
15/32 in x 0.47 in
Terminal type
Screw terminals
Operating cycles
6000 cycles
Dimensions
1.3 in L x 0.7 in W x 1.1 in H
Weight
0.11 lbs
Function
On - none - Off
