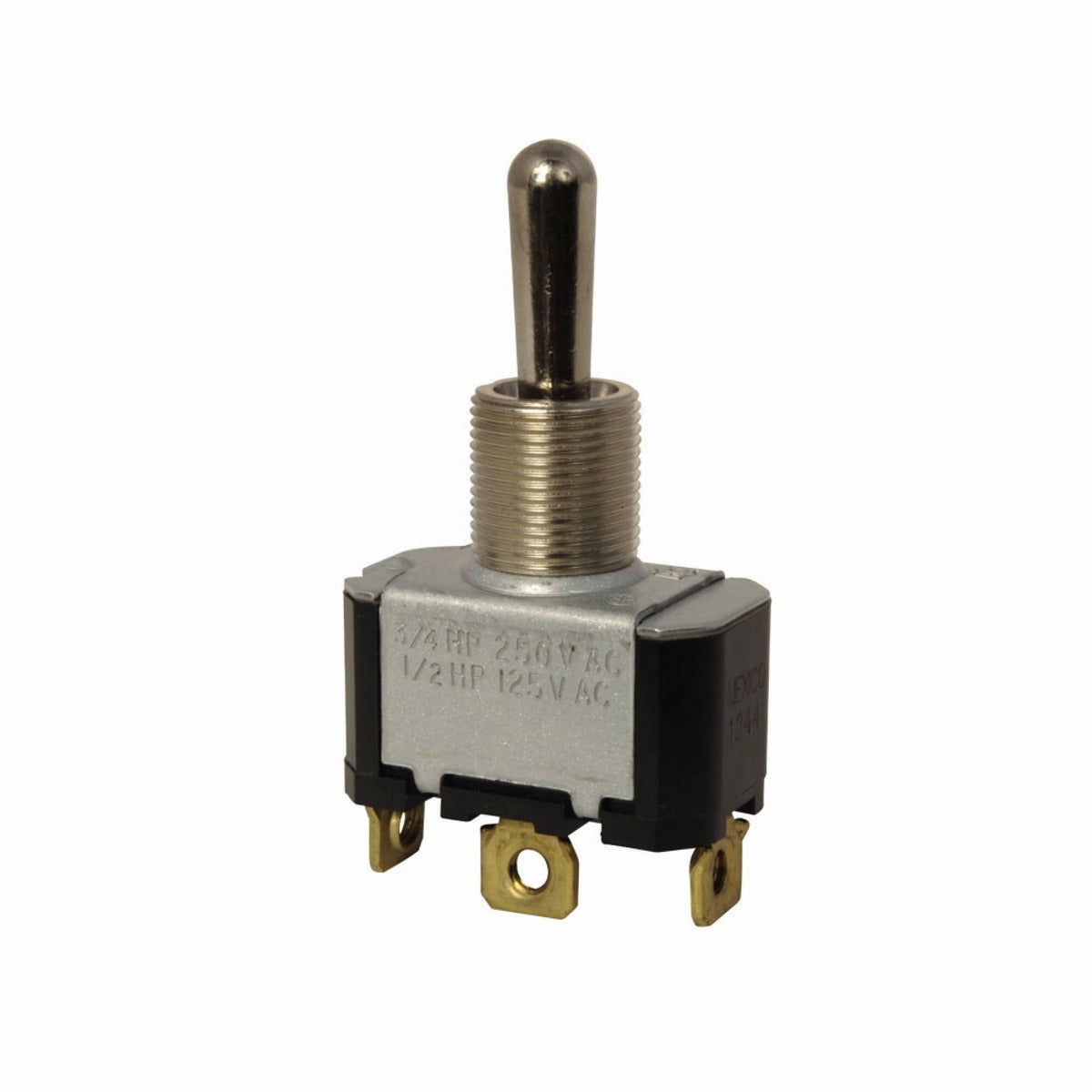

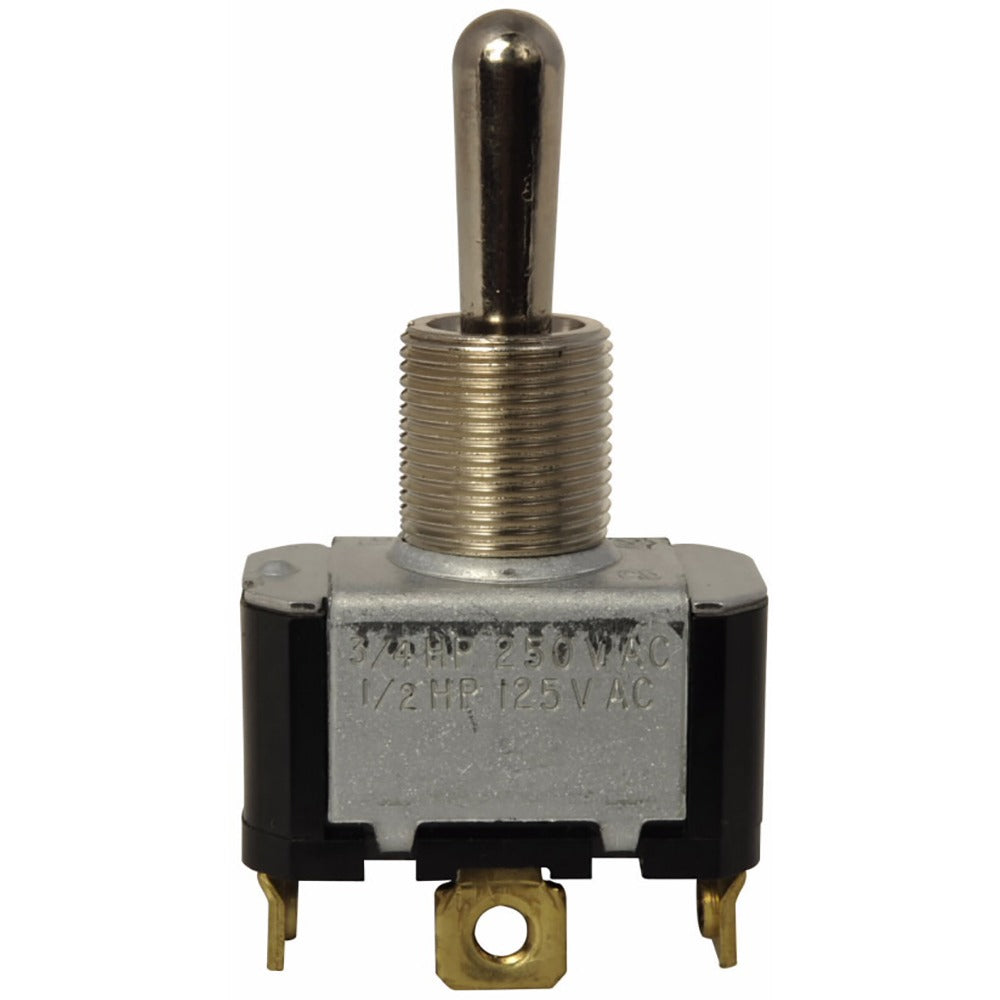

Eaton E10T115BS Toggle Switch Single-Pole 10 A at 250 Vac (0.563 in Lever)

Product Description

Eaton E10T115BS is a single-pole, single-throw (SPST) toggle switch rated 10 A at 250 VAC with a maintained off/ momentary on function. It features a 0.563 inch bat-handle lever, bushing mounting, and screw terminal connections. The switch is intended for light industrial, retrofit, and OEM applications and is UL recognized and CSA certified. Typical uses include panel-mounted control, equipment on/off circuits, and general-purpose electrical switching.

• Contact rating: 10 A at 250 VAC; power rating listed as 1/2 hp
• SPST single-pole configuration with maintained off / momentary on operation and bat-handle actuator
• Bushing mount (0.468 inch-32 TPI x 0.47 in L), screw terminals, bright nickel plated lever; UL recognized and CSA certified

Product Highlights

Single-pole SPST toggle switch, 10 A at 250 VAC, 0.563 in lever, bushing mount with screw terminals, UL and CSA certified

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E10T115BS
• Country of Origin: Mexico
