Product Description

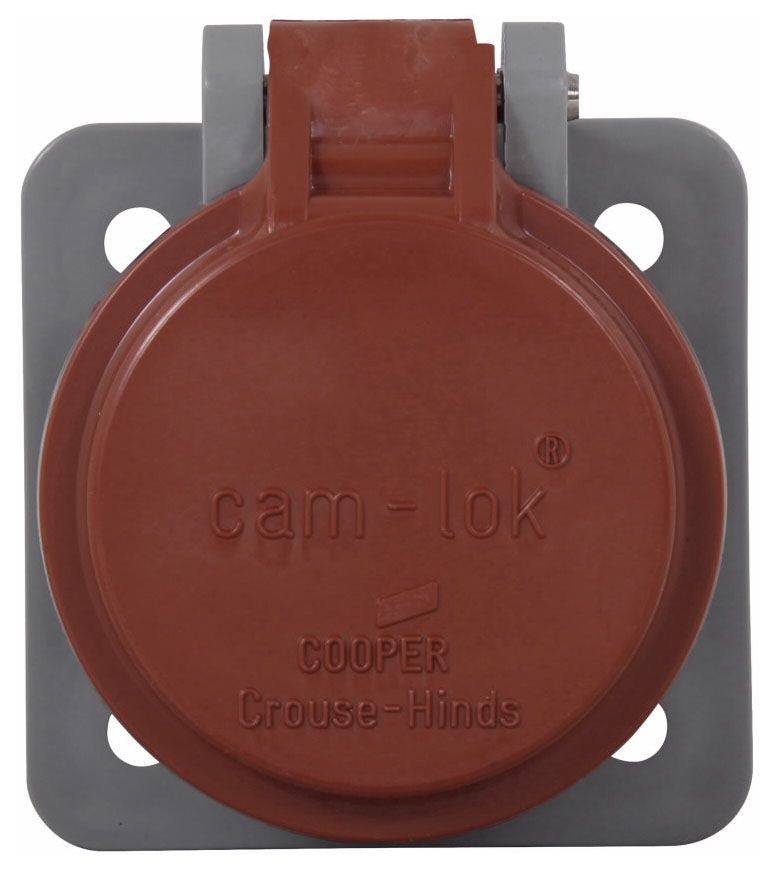

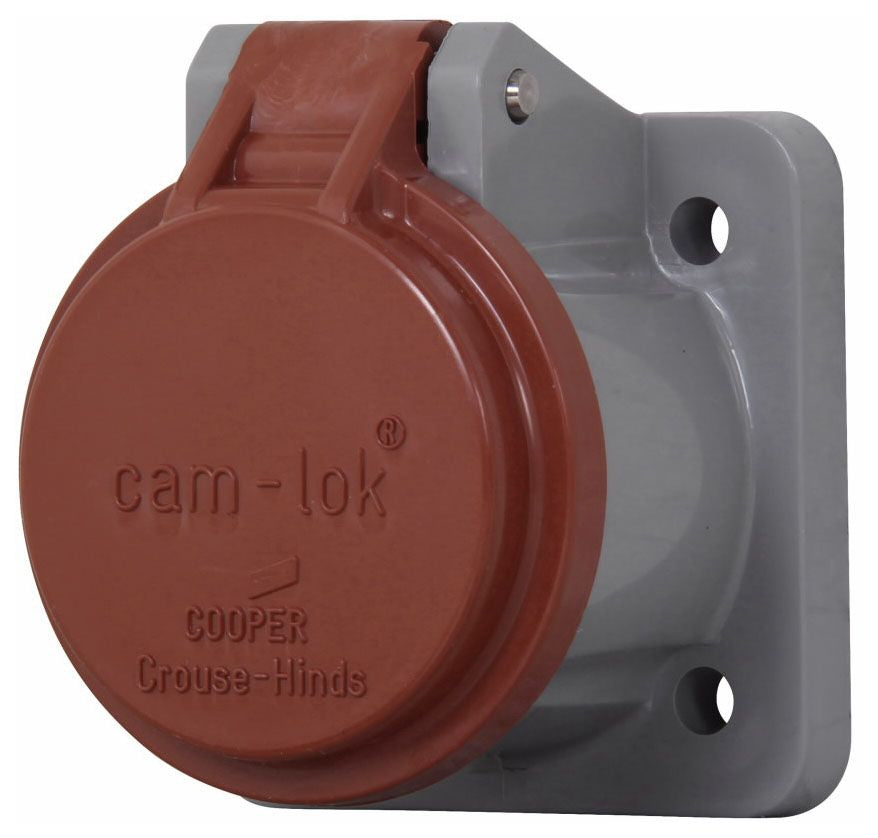

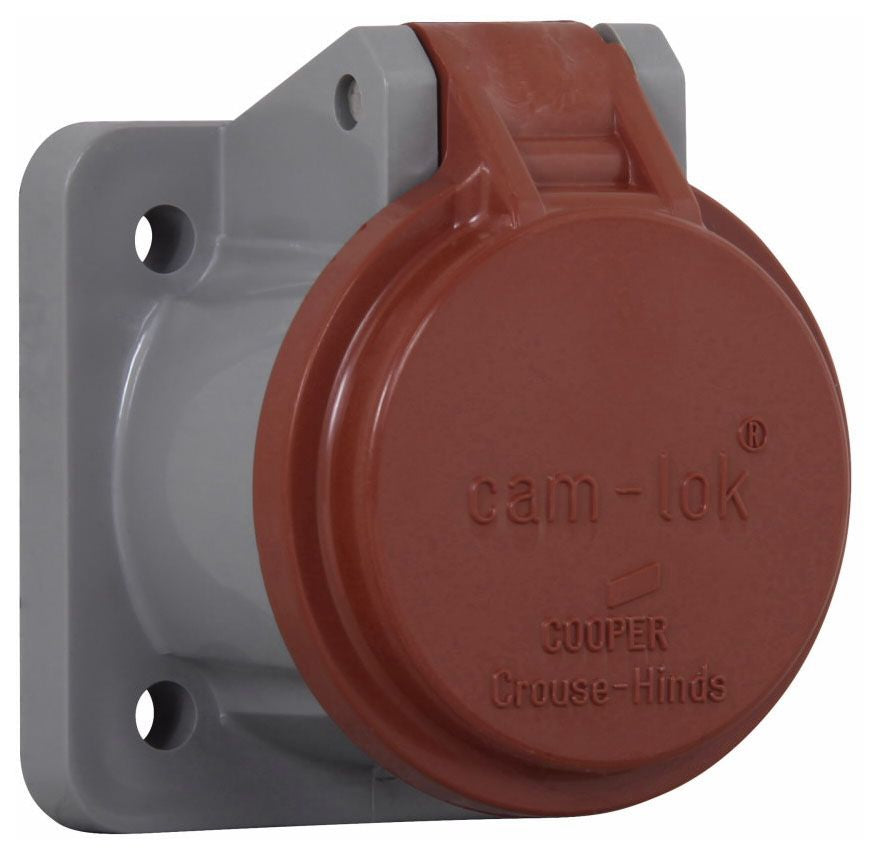

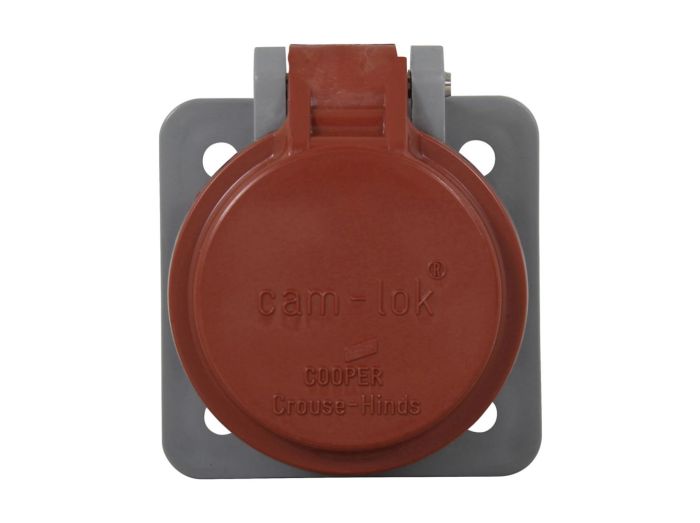

The Eaton E1016SC-38 Cam-Lok J series receptacle cover provides a means to quickly connect and disconnect power systems safely. It is the industry standard for motors, generators, indoor and outdoor lighting distribution panels, and numerous other power applications. Made of thermoplastic material.
- Molded from colorfast material color coded for easy phase identification
- Mounts directly to new or existing receptacles
- Provides NEMA 3R protection
Product Highlights
The Eaton Cam-Lok receptacle cover is made from high impact-resistant thermoplastic and has stainless steel hardware.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: E1016SC-38
-
Country of Origin: Multiple
Technical Specifications
-
Catalog Number: E1016SC-38
-
Manufacturer: Eaton Crouse-Hinds
-
Brand: Eaton
-
Sub Brand: Crouse-Hinds series
-
Country of Origin: Multiple
-
Made in USA: No
-
Application: Industrial Facilities, Factories Facility, Power Distribution and Control, Quick Disconnect Power Systems
-
Material: Thermoplastic
-
Number of Poles: 1
-
Special Features: Maximum Panel Thickness 3/16 In
-
Standard: UL, CSA
-
UPC: 662275239198
-
GTIN: 00662275239198
-
Item Type: Receptacle cover
-
Size: 2.25 In Width X 1.88 In Depth X 2.56 In Height
-
Environmental Conditions: -40 To 105 Deg C
-
Temperature Rating: -40 To 105 Deg C
-
MPN: E1016SC-38
-
Includes: 3/16 in THK Panel
-
Specifications: NEMA 3R Enclosure
-
Standards/Approvals: CSA Certified|UL Listed
-
Suitable For Use With: Cam-Lok
J Series E1016 2 to 2/0 600 VAC/DC 300 A Male and Female Receptacles
-
Type: Snap Back
-
NEMA Rating: 3R
-
Product Length/Depth: 2.25 in
-
Product Height: 2.56 in
-
Product Width: 1.88 in
-
Product Weight: 0.12 lb
-
Product Type: Receptacle cover
-
Area classification: Ordinary/Non-Hazardous Locations
-
Standards type: NEC/CEC
-
Accessory Type: Cover
-
Packaging: Bulk
-
For Use With/Related Products: Power Entry Inlets and Outlets
-
Product Series: J
-
Family Series: Eaton's Crouse-Hinds series Connectors, J Series
-
Description: CAM-LOK,Recept Cover,Nema3R,White, High Impact Resistant Thermoplastic, Stainless Steel Hardware,E1016
-
Connection Type: Protective Cover
-
Connection Description: Cam Cover
-
Voltage: 600 VAC
-
Insulation Material: Plastic
-
Product Dimensions: 2.25-in X 1.88-in X 2.56-in
-
Color: White
