Product Description

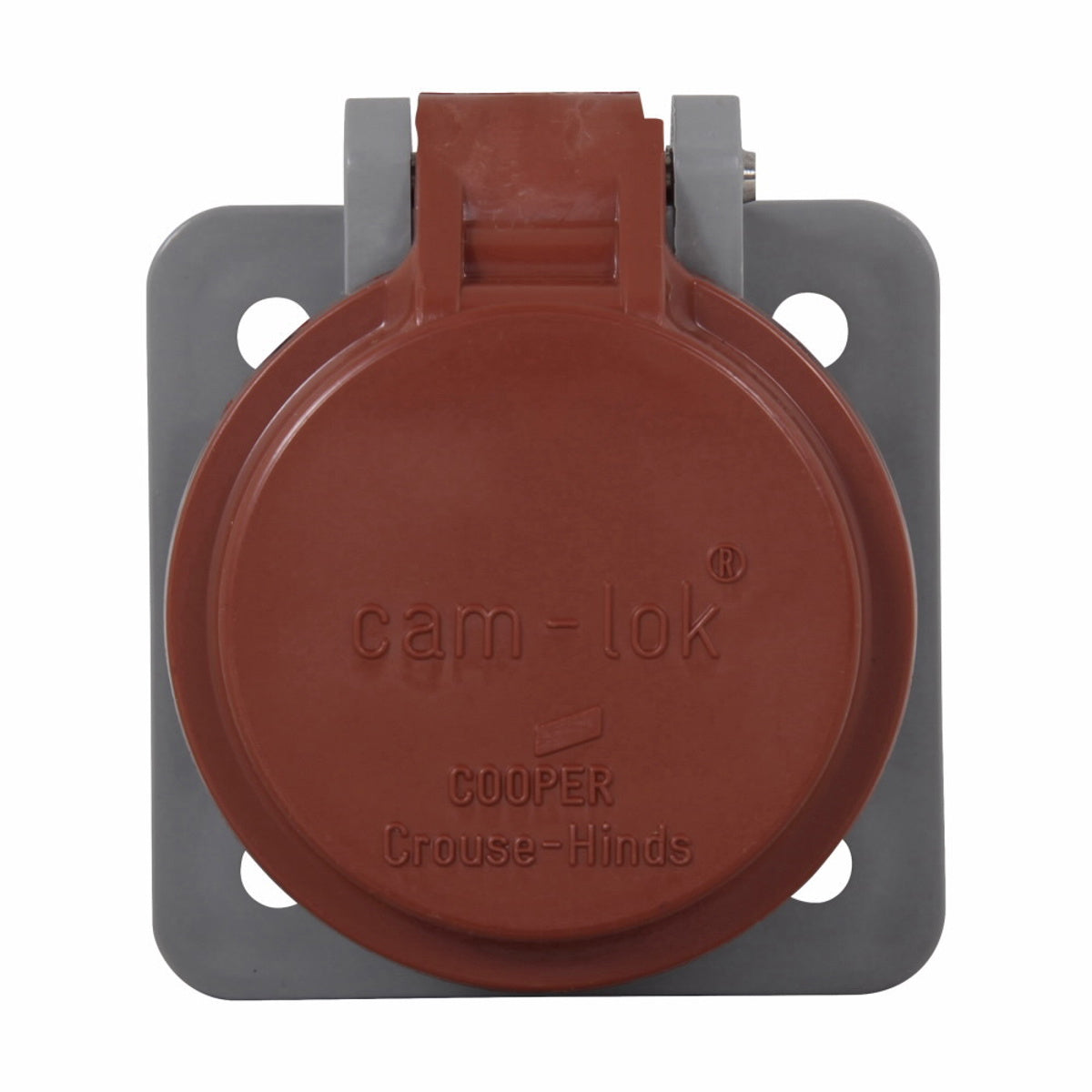

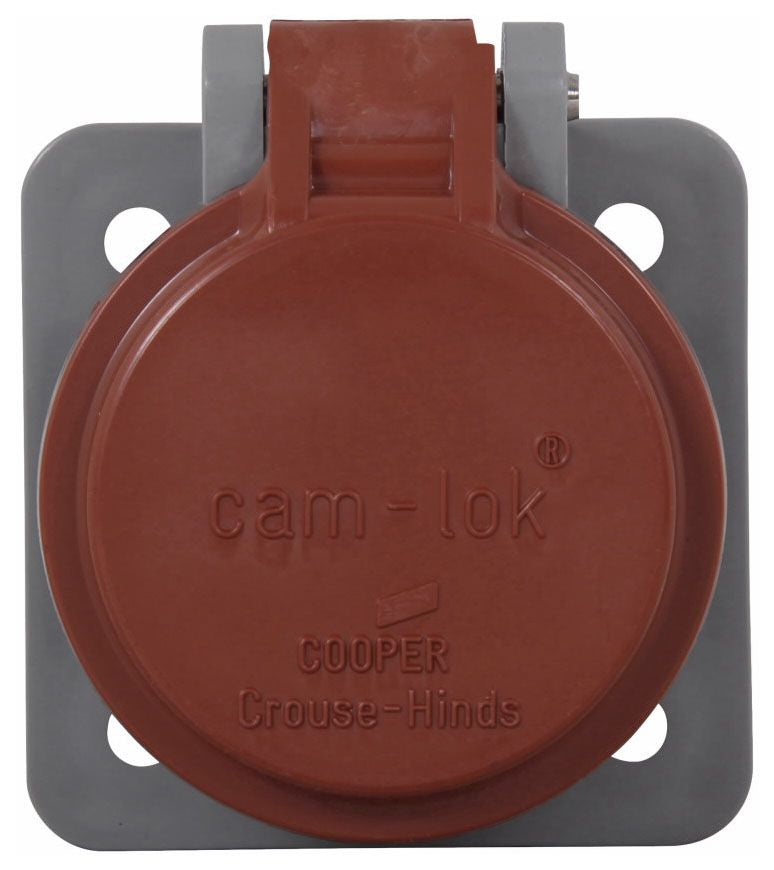

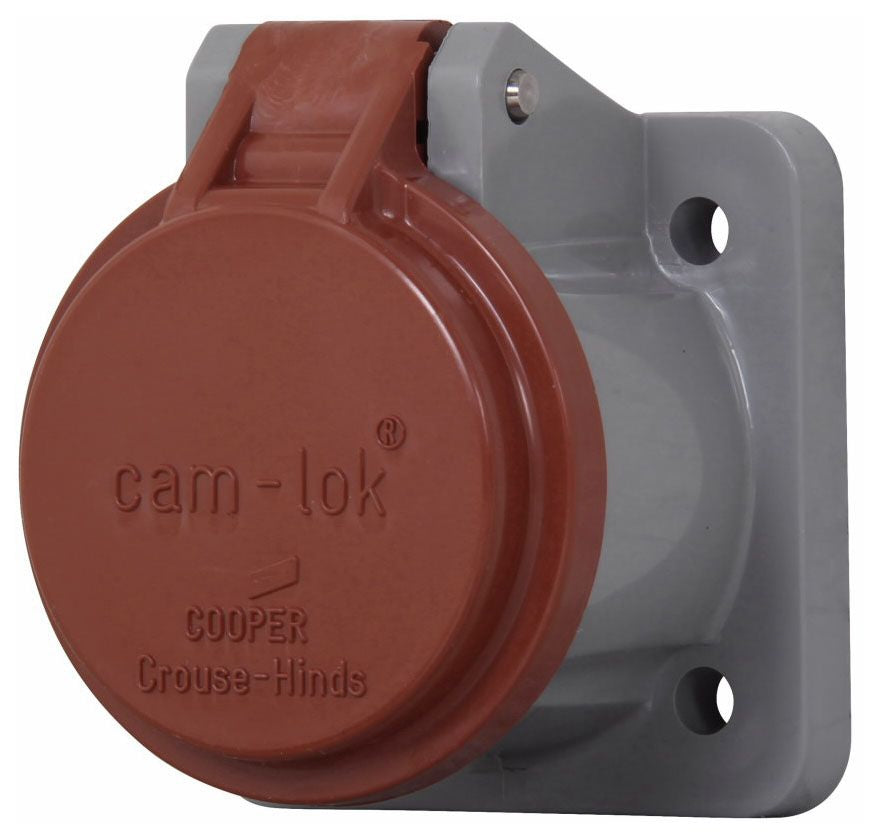

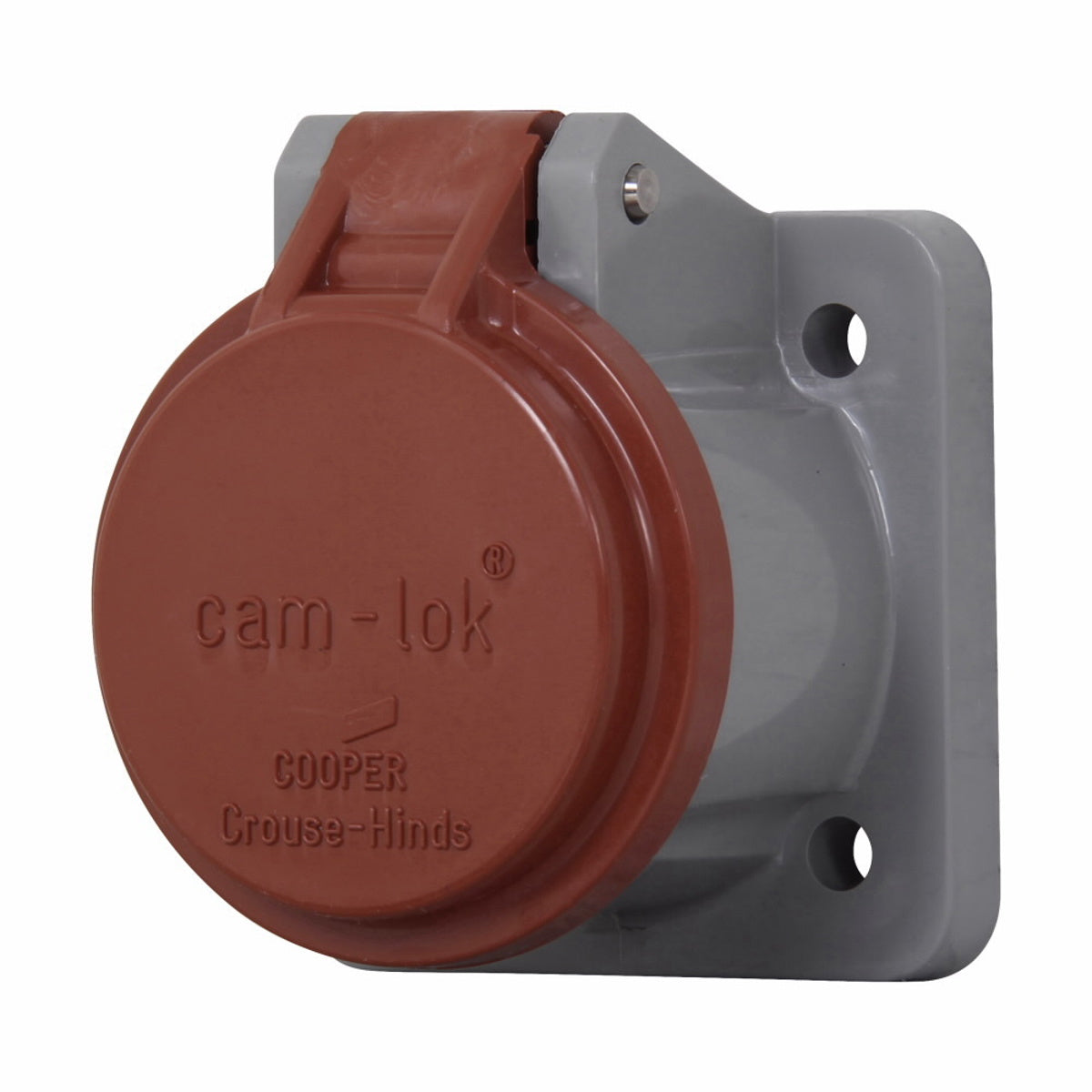

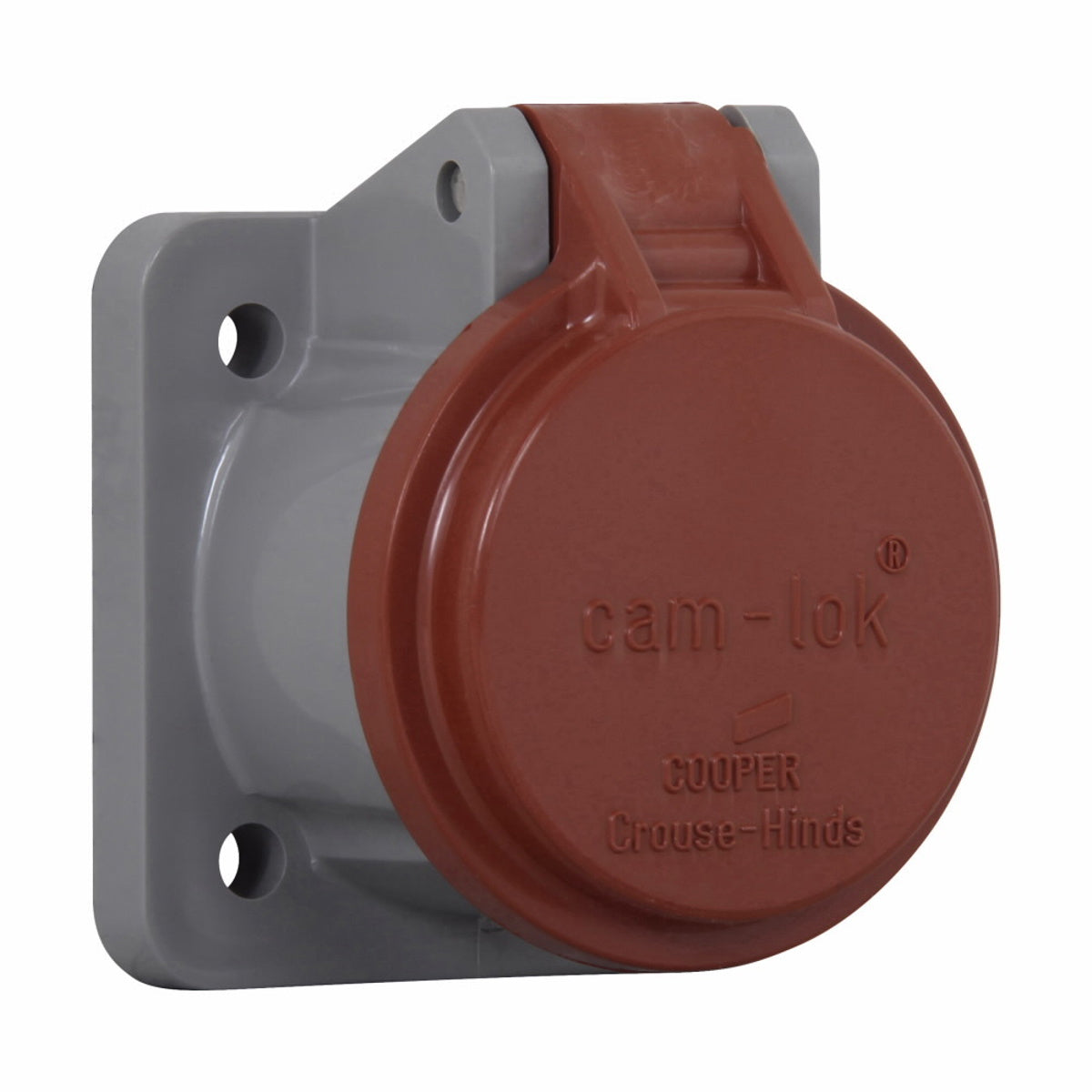

The Eaton E1016SC-35 Crouse-Hinds series Cam-Lok J Series E1016 receptacle cover provides a means to quickly connect and disconnect power systems safely. It is the industry standard for motors, generators, indoor and outdoor lighting distribution panels, and numerous other power applications.
- NEMA 3R Enclosure
- Molded from colorfast material color coded for easy phase identification
- Mounts directly to new or existing receptacles
Product Highlights
The EATON Crouse-Hinds Cam-Lok receptacle cover is made from thermoplastic and provides NEMA 3R protection.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: E1016SC-35
-
Country of Origin: Multiple
Technical Specifications
-
Catalog Number: E1016SC-35
-
Manufacturer: Eaton Crouse-Hinds
-
Brand: Eaton
-
Sub Brand: Crouse-Hinds series
-
Country of Origin: Multiple
-
Made in USA: No
-
Application: Ind Facilities & Factories - Facility: Power Distribution and Control
-
Material: Thermoplastic
-
Number of Poles: 1
-
Special Features: NEMA 3R Enclosure
-
Standard: UL, CSA
-
UPC: 662275239167
-
GTIN: 00662275239167
-
Item Type: Receptacle cover
-
Size: 2.25 In Width X 2.56 In Height
-
Environmental Conditions: -40 To 105 Deg C
-
Temperature Rating: -40 To 105 Deg C
-
Voltage Rating: 600 Vac/Vdc
-
Wire Size: 350 To 500 MCM
-
Standards/Approvals: CSA Certified|UL Listed
-
Suitable For Use With: Cam-Lok J Series E1016 2 to 2/0 600 VAC/DC 300 A Male and Female Receptacles
-
Type: Snap Back
-
Product Length/Depth: 2.25 in
-
Product Height: 2.56 in
-
Product Width: 1.88 in
-
Product Type: Receptacle cover
-
Area classification: Ordinary/Non-Hazardous Locations
-
Standards type: NEC/CEC
-
NEMA Rating: 3R
-
Current Rating: 545 A
-
Voltage: 600 VAC
-
Insulation Material: Plastic
