Product Description
The Eaton E1016-1700 Crouse-Hinds series Cam-Lok J Series insulated receptacle provides a means to quickly connect and disconnect power systems safely. It is rated up to 400A continuous and 600 Vac/dc, and accepts 1/0-4/0 AWG cable. Cam-Lok is an industry standard for motors, generators, and lighting distribution panels.
- Male Double Set Screw Receptacles
- Insulated
- Receptacles are safety insulated for direct mounting to steel panels
Product Highlights

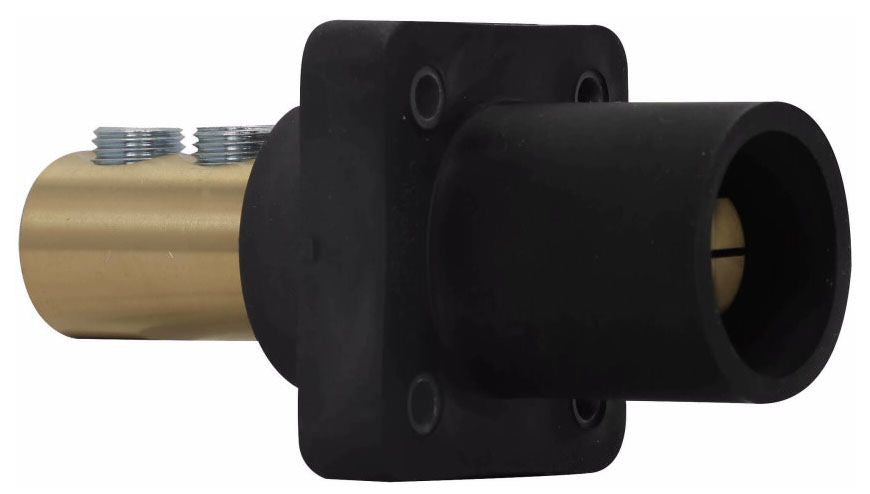

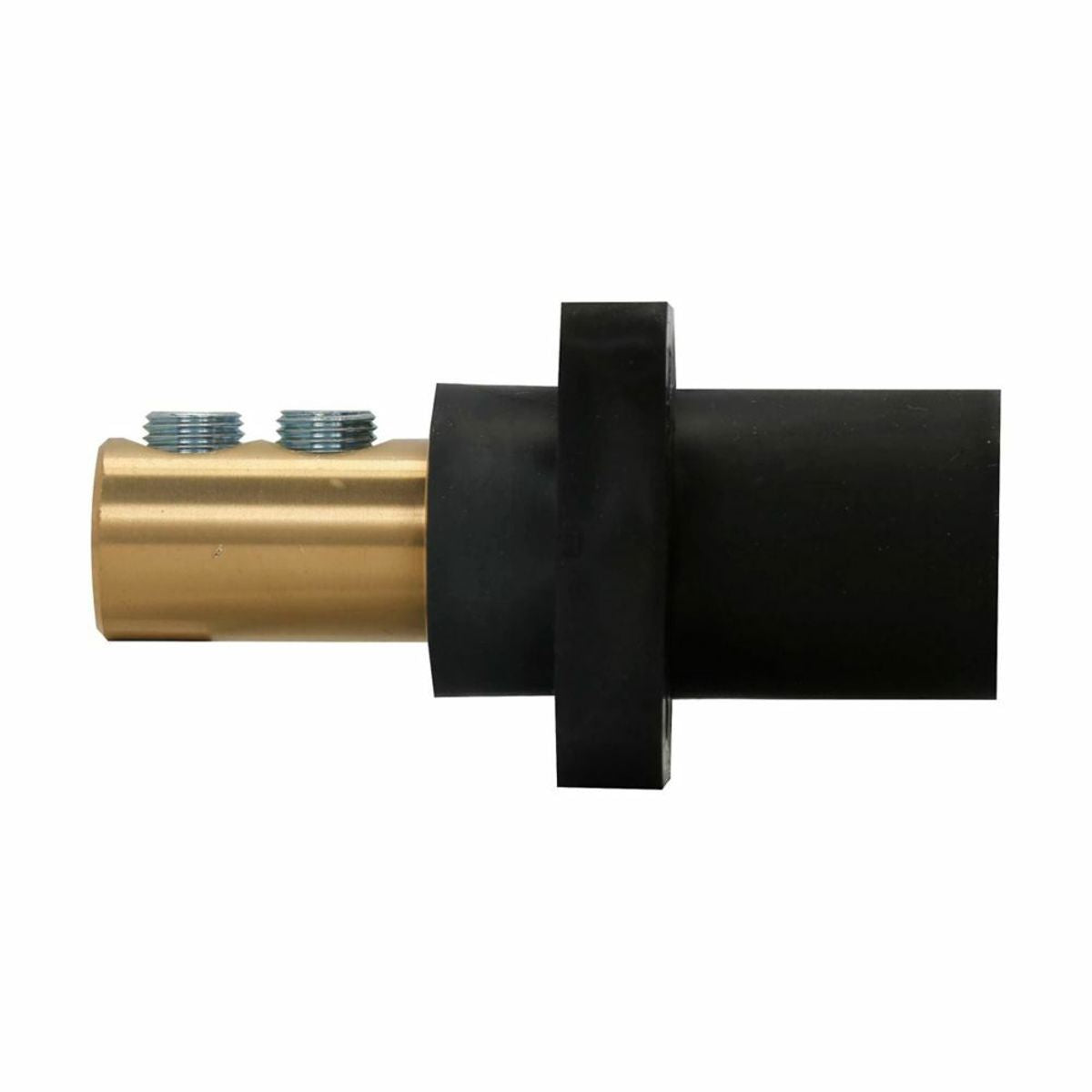

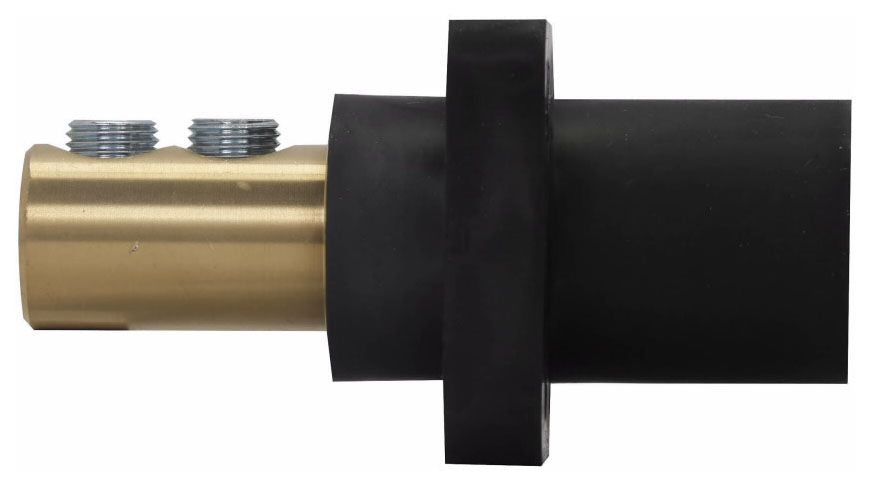

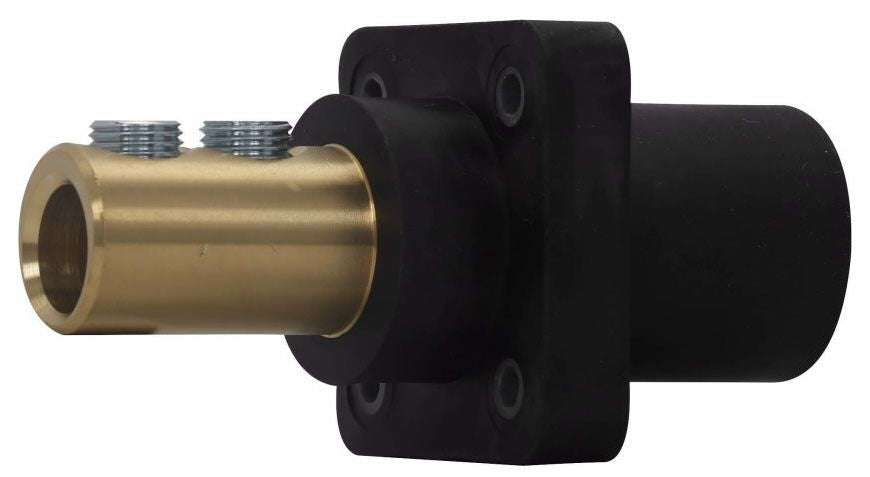

The EATON Crouse-Hinds Cam-Lok
Male Receptacle is a 1-Pole Insulated receptacle with a TPE Housing. Contacts are machined from high conductivity brass.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: E1016-1700
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: E1016-1700
-
Manufacturer: Eaton Crouse-Hinds
-
Brand: Eaton
-
Sub Brand: Crouse-Hinds series
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: Ind Facilities & Factories - Facility: Power Distribution and Control
-
Color: Black
-
Connection: Double Set Screw
-
Insulation: TPE
-
Material: Thermoplastic elastomer (TPE)
-
Number of Poles: 1
-
Special Features: Male Double Set Screw Receptacles
-
Standard: UL 498, CSA C22.2
-
UPC: 662275128805
-
GTIN: 00662275128805
-
Item Type: Insulated receptacle
-
Size: 4.25 In Length X 2.25 In Width X 2.25 In Height
-
Environmental Conditions: -40 To 105 Deg C
-
Temperature Rating: -40 To 105 Deg C
-
Voltage Rating: 600 Vac/dc
-
Wire Size: 2 To 4/0 AWG
-
Amperage Rating: 400 A
-
Housing Material: TPE
-
Series: J Series E1016
-
Standards/Approvals: CSA C22.2|UL 498
-
Type: 1-Pole Insulated
-
Product Name: Eaton Crouse-Hinds series Cam-Lok J Series E1016 insulated receptacle
-
Product Length/Depth: 4.25 in
-
Product Height: 2.25 in
-
Product Width: 2.25 in
-
Area classification: Ordinary/Non-Hazardous Locations
-
Standards type: NEC/CEC
-
NEMA Rating: 3R
-
Cable size: 1/0-4/0 AWG
-
Current Rating: 400 A
-
Gender: Male
-
Rated Voltage: 600V AC/DC
-
Cable Gauge: 2 to 4/0 AWG
-
Insulator Material: Thermoplastic Elastomer (TPE)
-
Approvals: CSA, UL
-
Contact Material: Brass
-
Insulator Color: Black
-
Mounting: Steel Panel
