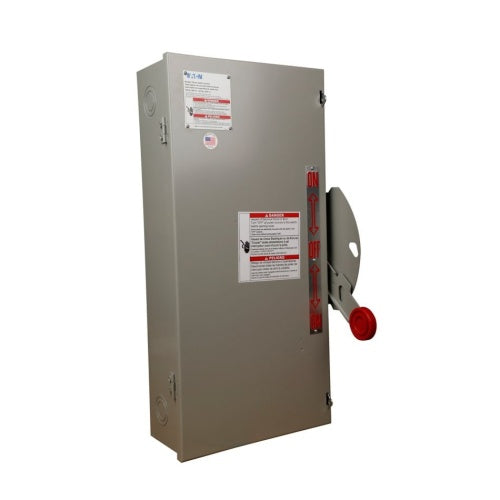

Eaton DT323UGK Heavy Duty Double-Throw Non-Fused Safety Switch 100 A

Product Description

The Eaton DT323UGK is a heavy-duty, double-throw, non-fused safety switch. Rated at 100 A, it is designed for transferring power between different sources or switching between load circuits. Suitable for service entrance applications, it offers reliable load break and load make capabilities. The switch features a visible double-break quick-make, quick-break rotary blade mechanism.

• Suitable for service entrance use with a neutral or ground lug kit installed
• Features a visible double-break quick-make, quick-break rotary blade mechanism for easy operation and longer contact life
• Triple padlocking capability increases personnel safety

Product Highlights

Heavy duty double-throw non-fused safety switch with a three-pole configuration, suitable for a variety of applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DT323UGK

Technical Specifications

• Product Name: Eaton heavy duty double-throw non-fused safety switch
• Catalog Number: DT323UGK
• UPC: 782113440040
• Product Length/Depth: 11.19 in
• Product Height: 25.02 in
• Product Width: 11.95 in
• Certifications: UL Listed
• Catalog Notes: Suitable for service entrance use with a neutral or ground lug kit installed
• Global Catalog: DT323UGK
• Product Type: Double-throw non-fused safety switch
• Type: Heavy Duty, Double-Throw
• Amperage Rating: 100A
• Number of poles: Three-pole
• Voltage rating: 240 Vac, 250 Vdc
• Enclosure: NEMA 1
• Enclosure material: Painted steel
• Fuse configuration: Non-fusible
• Number of wires: 3
• Current Type: AC
• Fuse Type: Switch
• Poles: Three Pole
• Enclosure Composition: Painted Steel
• Enclosure NEMA Rating: NEMA 1
• Component: Non-Fusible Disconnect Switch
• Manufacturer: Eaton
• Enclosure Disconnect Type: Double Throw Quick Connect Safety Switch
• Disconnect Enclosure Width: 11.95 In
• Disconnect Enclosure Depth: 11.19 In
• Disconnect Enclosure Height: 25.02 In
• Phase: 3
• Finish: Painted
• UNSPSC: 39122205
• Material: Steel
• Application: Commercial, Institutional Buildings, Control, Power Distribution, Industrial, Light Commercial, Indoor, Residential and Agricultural Applications
• Enclosure Type: NEMA 1
• Number of Wires: 3
• Series: K Series
• Dimensions: 11.19 in L x 11.95 in W x 25.02 in H
