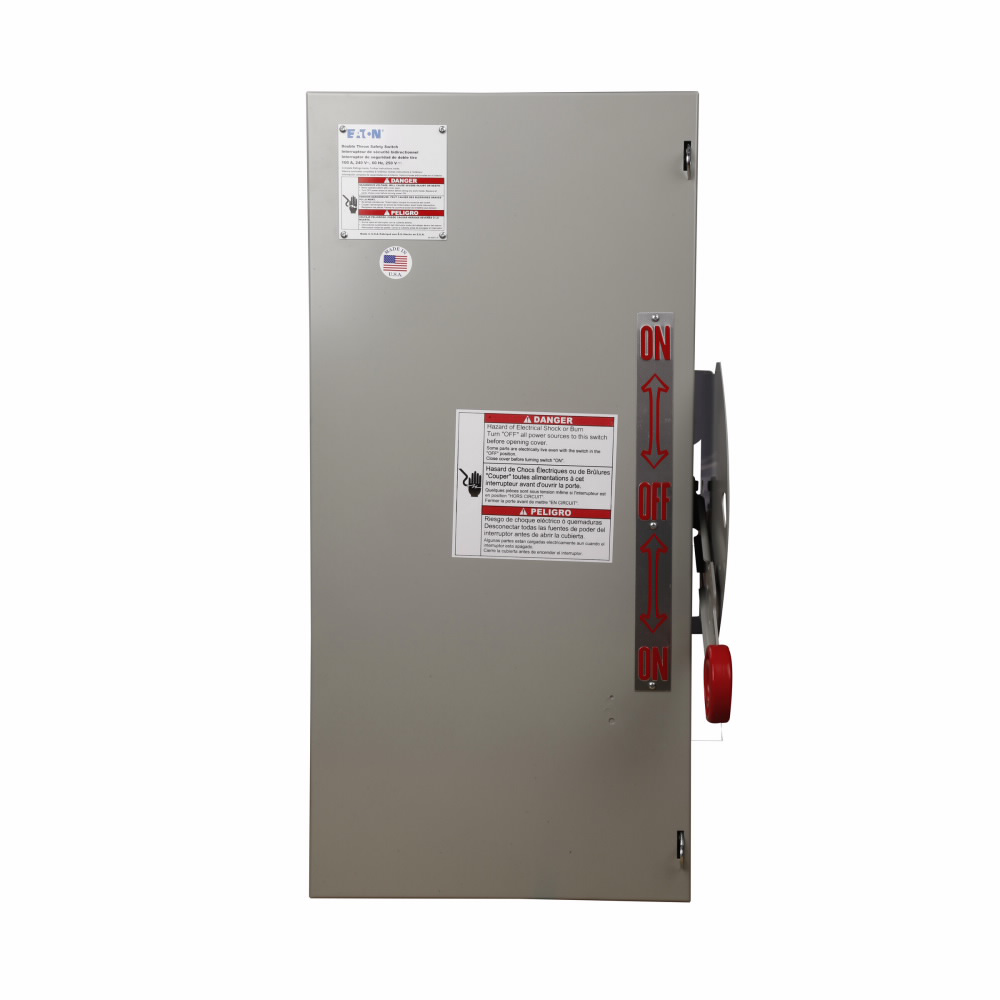

Eaton DT322UGK Double Throw Safety Switch 60A NEMA 1 240 Vac/250 Vdc

Product Description

Eaton DT322UGK is a heavy-duty, double-throw non-fused safety switch designed for reliable power distribution. This switch operates at sixty amps and is suitable for three-phase applications with a voltage rating of 240 Vac and 250 Vdc. The enclosure is NEMA 1 rated and constructed from painted steel, ensuring durability in various environments.

• Non-fusible design allows manual operation and easy load management.
• Interlocked switches prevent simultaneous closure, enhancing safety.
• Applications include commercial and institutional buildings.

Product Highlights

This product ensures safe and efficient switching between power sources or circuits.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DT322UGK
• Voltage Rating: 240 Vac, 250 Vdc
• Amperage Rating: 60 A
• Number of Poles: 3
• Number of Wires: 3
• Enclosure Type: NEMA 1
• Material: Steel
• Dimensions: 11.19 in L x 11.95 in W x 25.02 in H
• Weight: 34 lb
• Applications: Power Distribution, Industrial, Light Commercial
