EATON DT224URKPS SWITCH SAF DUTY GENL 240 VAC, 250 VDC 2

Product Description

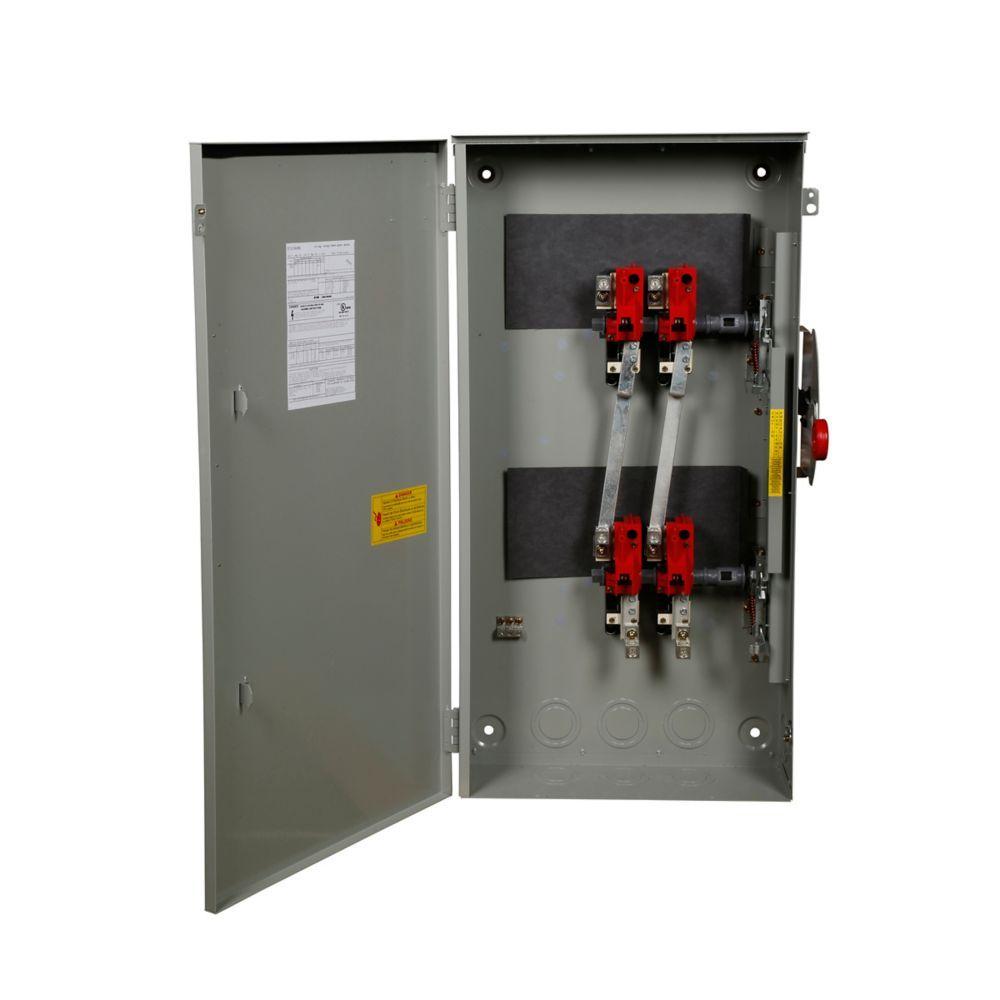

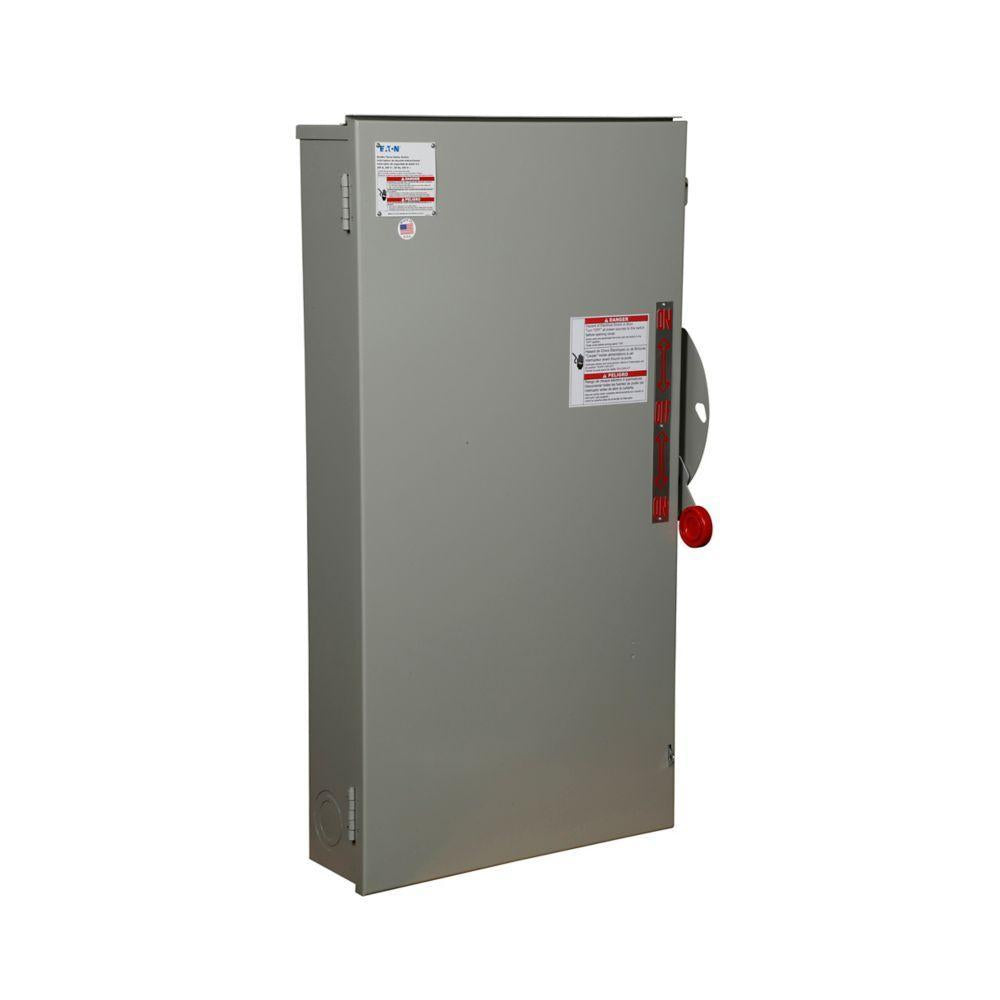

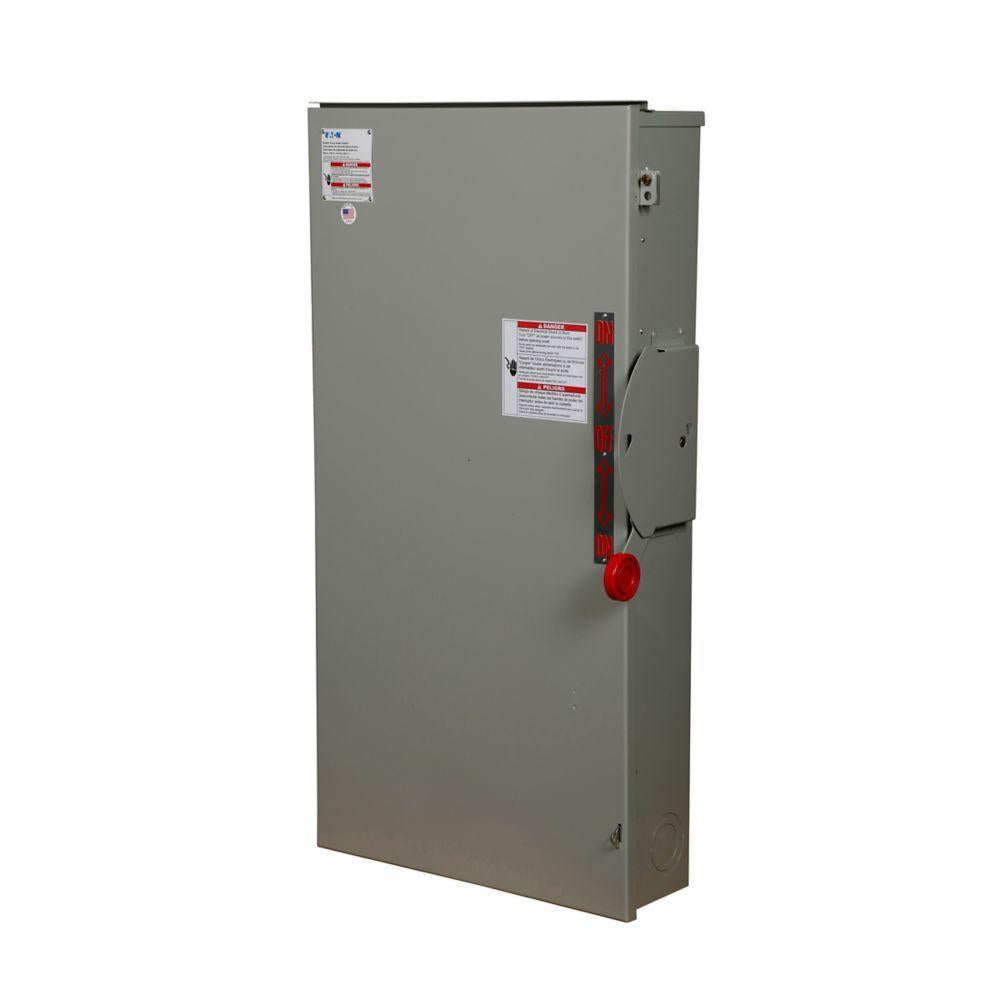

The EATON DT224URKPS is a general duty safety switch designed for various electrical applications. This switch operates at 240 VAC and 250 VDC, providing reliable service for up to 200 amps. The compact design and non-fusible rainproof features make it suitable for both residential and commercial use.

• Compact design with lockable handle actuator
• NEMA 3R enclosure for outdoor installation
• DPDT contact form for versatile application

Product Highlights

This safety switch allows for an economical means of transferring power between sources. It is robust and ideal for service entrance applications, ensuring optimum safety and efficiency in power distribution.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: DT224URKPS

Technical Specifications

• Voltage Rating: 240 VAC, 250 VDC
• Amperage Rating: 200 A
• Number of Poles: 2
• Number of Wires: 2
• Dimensions: 11.25 x 19.56 x 37.38 inches
• Material: Steel, painted galvanized
• Horsepower: 15 hp, 40 hp
• Enclosure Type: NEMA 3R
• Contact Form: DPDT
