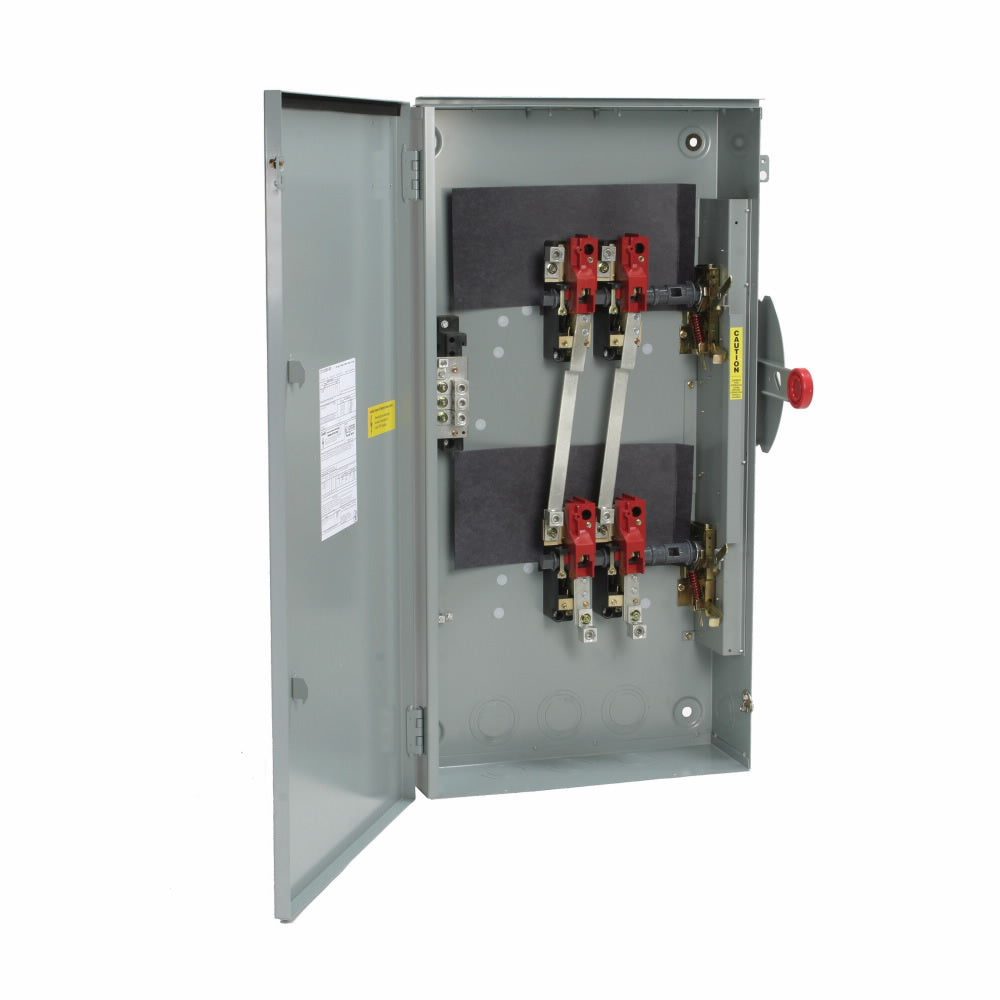

Eaton DT224URK-NPS General Duty Safety Switch 240 VAC, 250 VDC 200 A

Product Description

EATON DT224URK-NPS is a general duty safety switch designed for effective power management in your electrical systems. It operates at 240 VAC and 250 VDC, with an amperage rating of 200 A. The compact design is ideal for various applications, including service entrance and light duty motor circuits.

• General duty double-throw design for power switching
• NEMA 3R enclosure for protection against rain and dust
• Lockable handle for safety and compliance

Product Highlights

This switch is suitable for use in residential, commercial, and institutional buildings.

Product Information

Standard Information

• Brand: Eaton
• Model Number: DT224URK-NPS

Technical Specifications

• Voltage Rating: 240 VAC, 250 VDC
• Amperage Rating: 200 A
• Number of Poles: 2
• Number of Wires: 3
• Size: 11.25 x 19.56 x 9.5 inches
• Material: Steel, painted galvanized
• Enclosure Type: NEMA 3R
• Application: Power distribution for commercial and residential use
