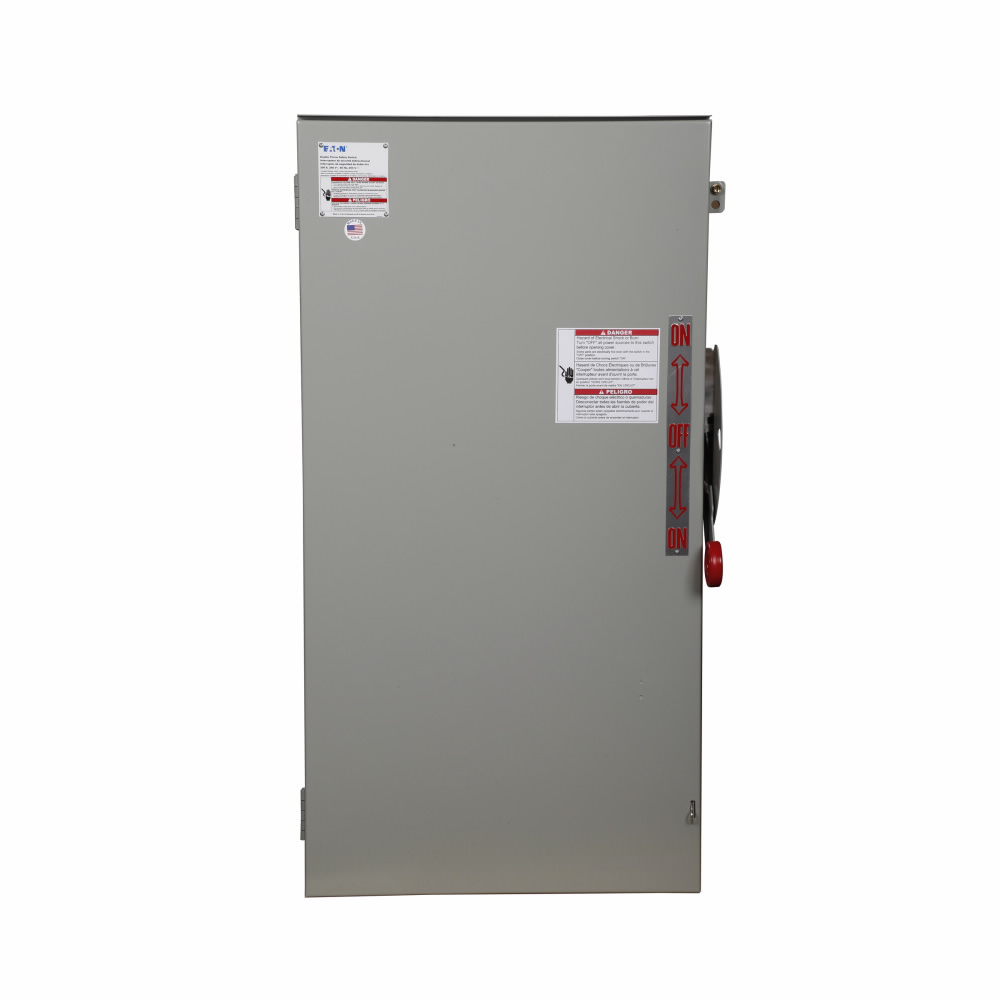

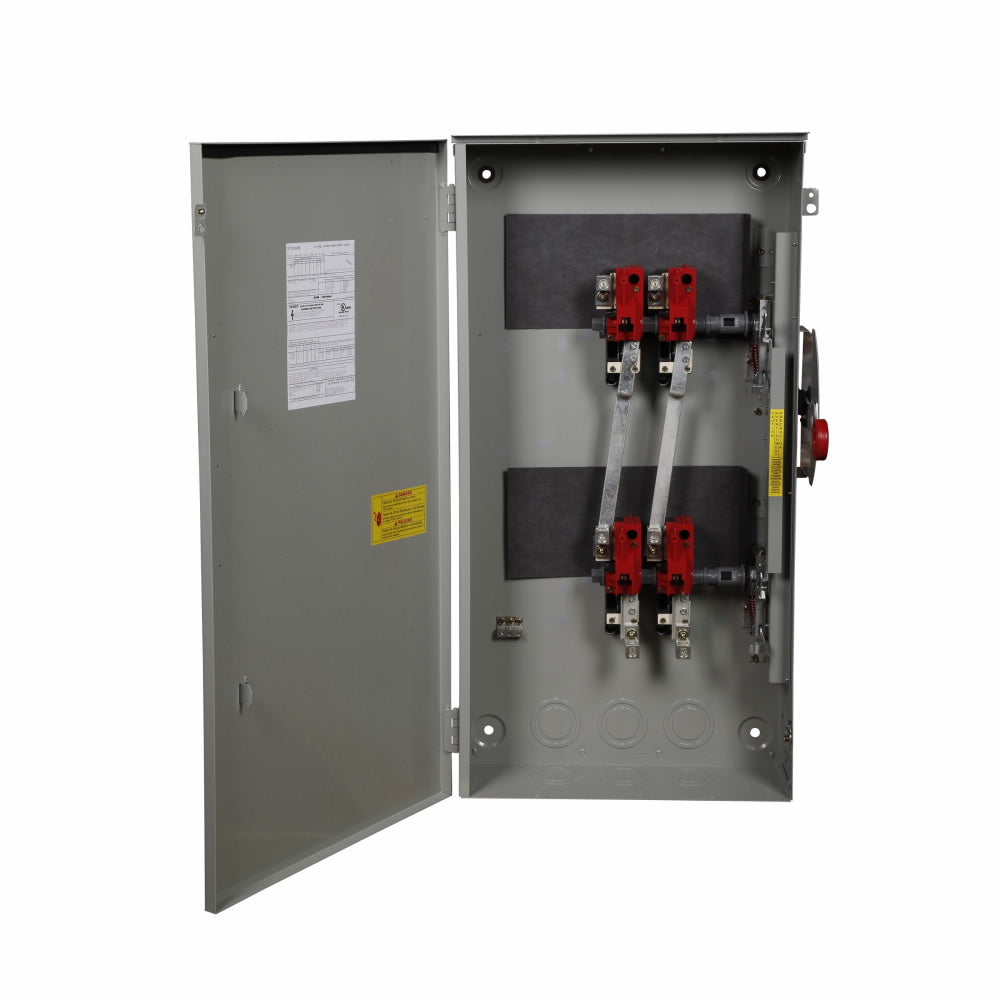

Eaton DT224URK Heavy Duty Non-Fusible Safety Switch 200A 240 Vac/250 Vdc

Product Description

The Eaton DT224URK is a heavy-duty double-throw non-fusible safety switch designed for reliable power distribution. This switch has a capacity of 200 amperes and operates at 240 Volts alternating current and 250 Volts direct current. It features a rugged NEMA 3R enclosure made of painted galvanized steel, ensuring durability and weather resistance.

• Double-throw design for switching between power sources
• UL Listed for safety and reliability
• Constructed from painted galvanized steel

Product Highlights

This safety switch is suitable for commercial and institutional applications, providing essential control and protection for electrical systems.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DT224URK
• Voltage Rating: 240 Vac, 250 Vdc
• Amperage Rating: 200 Amp
• Number of Poles: 2
• Number of Wires: 2
• Enclosure Type: NEMA 3R
• Material: Painted galvanized steel
• Country of Origin: United States
• Standard: UL Listed
• Dimensions: 11.26 inches x 19.15 inches x 37.69 inches
