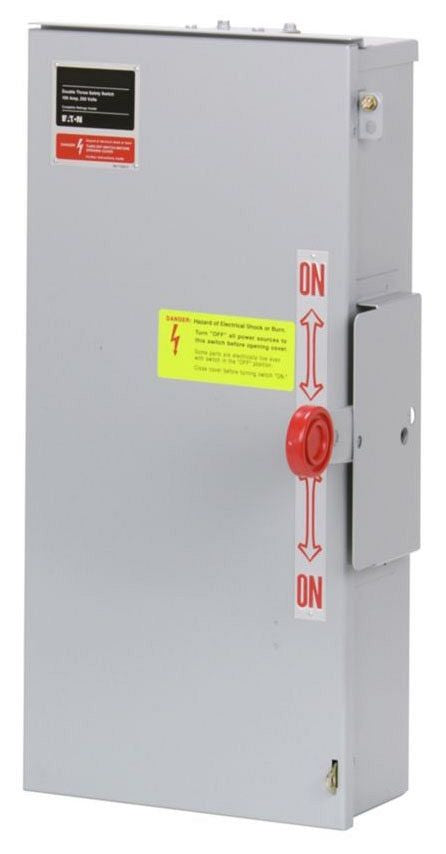

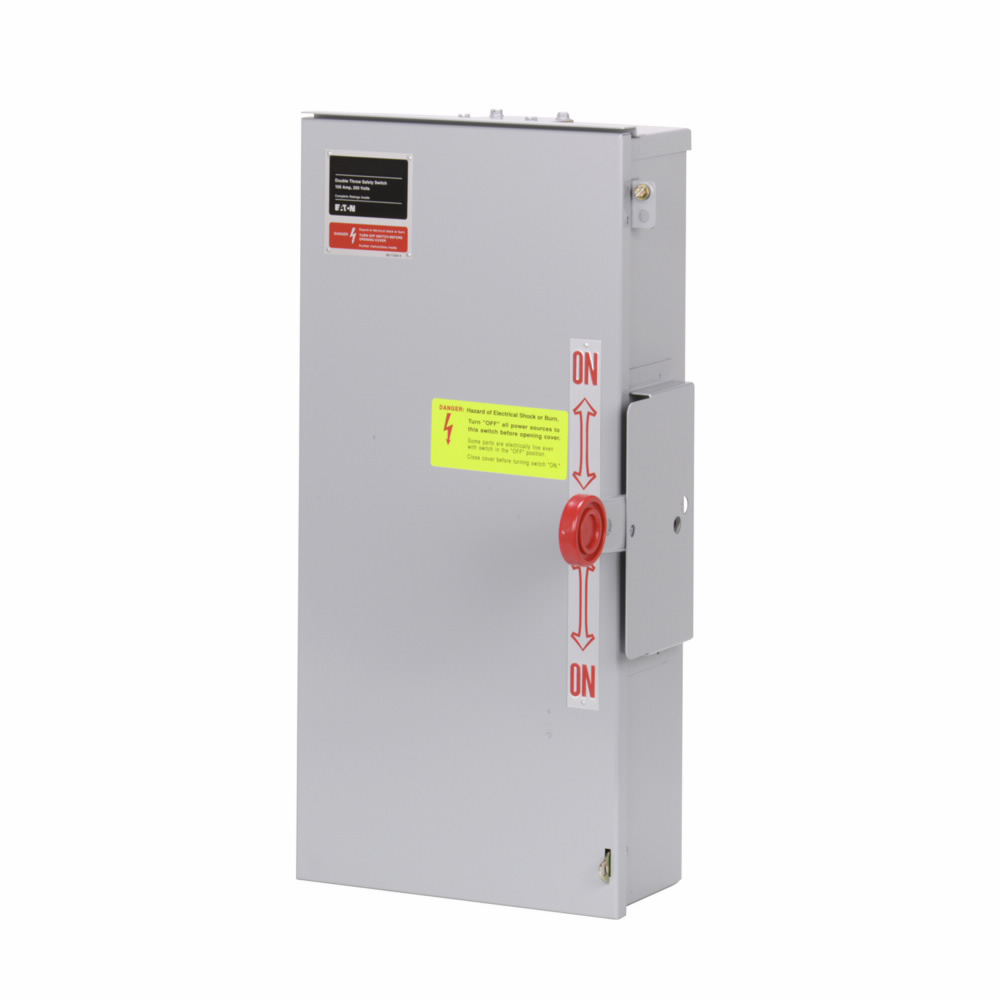

Eaton DT223URK-NPS Double Throw Safety Switch 100 Amp 240 VAC 250 VDC

Product Description

Eaton DT223URK-NPS is a two-pole, non-fusible, general duty safety switch rated for one hundred amps. It operates at two hundred forty volts AC and two hundred fifty volts DC. This switch features a compact design that includes a neutral. It is built from painted galvanized steel ensuring rainproof functionality with a NEMA three R enclosure.

• Includes neutral
• Painted galvanized steel construction
• Complies with NEMA 3R standards

Product Highlights

This product is ideal for both commercial and residential use, providing a reliable method for power distribution and control.

Product Information

Standard Information

• Brand: Eaton
• MPN: DT223URK-NPS

Technical Specifications

• Voltage Rating: 240 VAC, 250 VDC
• Amperage Rating: 100 A
• Number of Poles: 2
• Enclosure Type: NEMA 3R
• Dimensions: 9.88 x 11.94 x 24.63 inches
• Material: Painted galvanized steel
• Applicable Standards: UL Listed
• Applications: Commercial, institutional buildings, service entrance applications
