Product Description

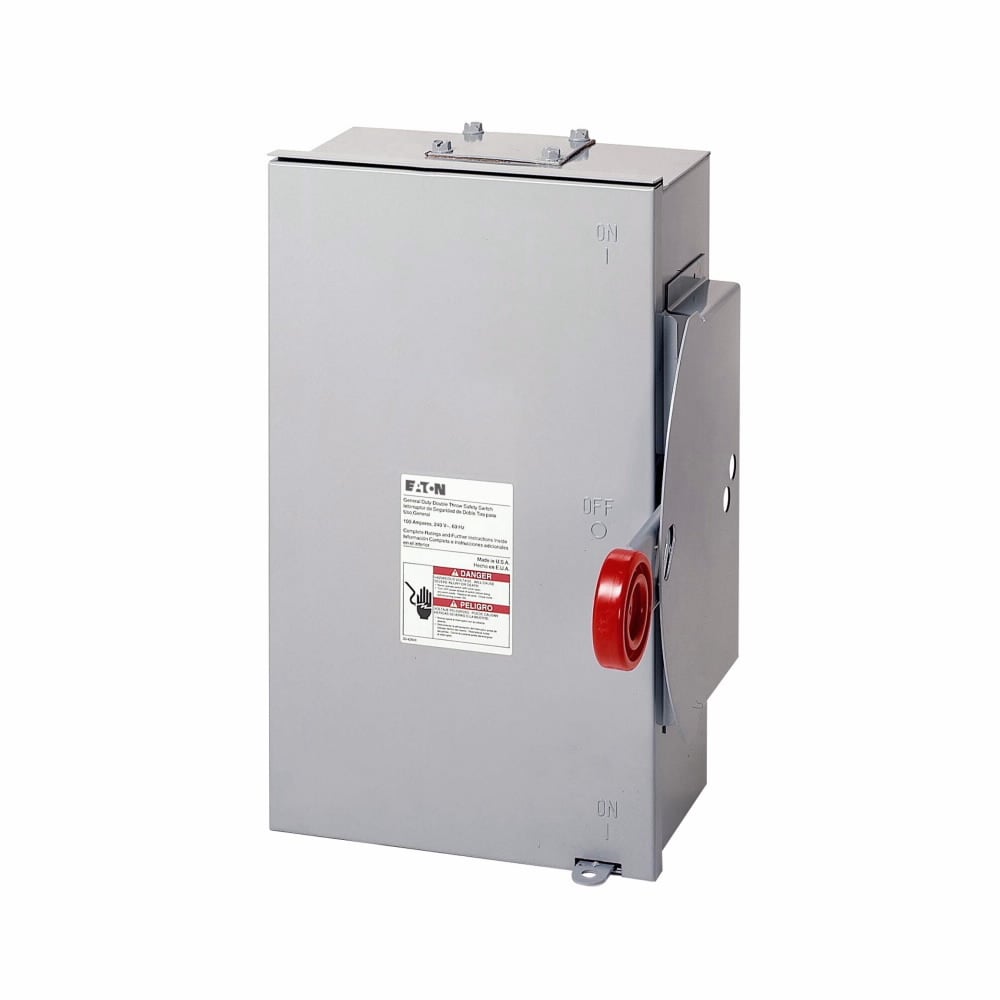

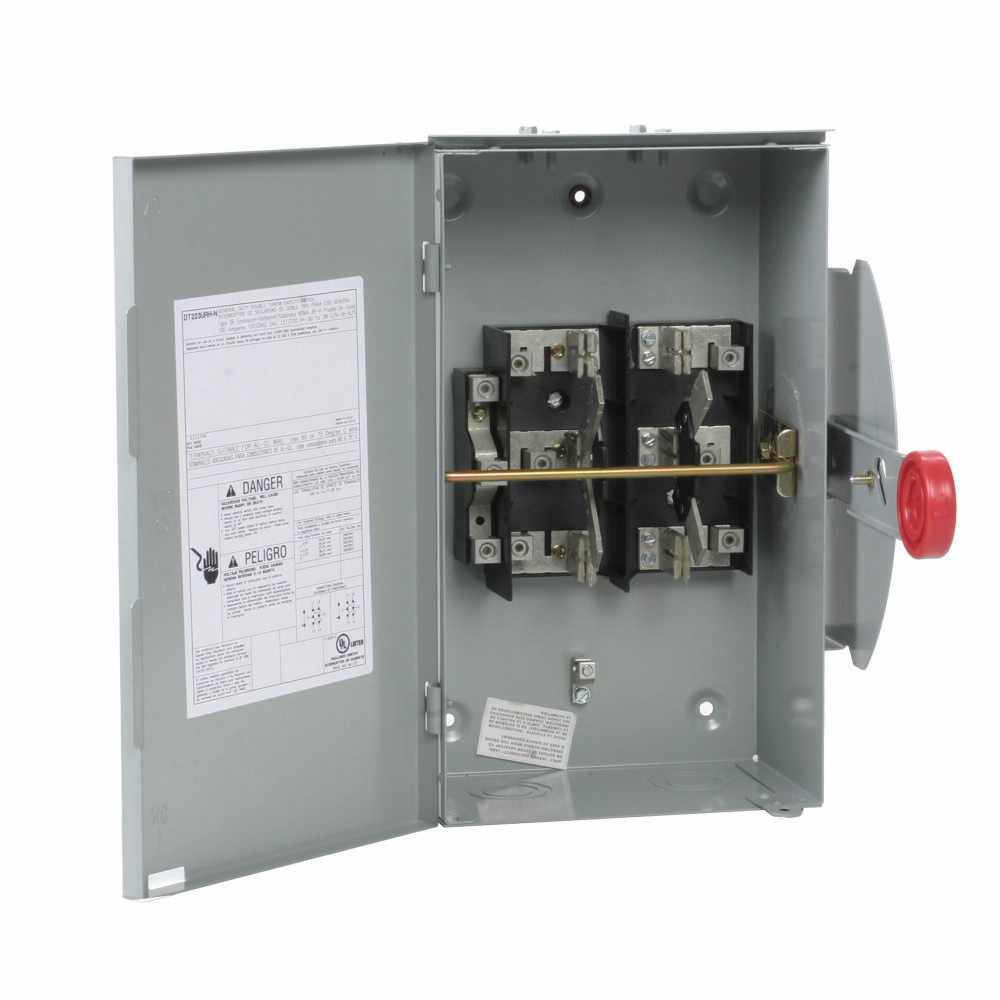

The Eaton DT223URH-N is a double throw safety switch designed for reliable power distribution at two hundred forty volts AC. With a current rating of 100 amperes, this non-fusible safety switch is ideal for commercial and institutional applications, ensuring safe and effective operation.
- Compact design featuring a solid neutral connection
- NEMA 3R enclosure provides protection against rain and dust
- UL listed for safety and reliability
Product Highlights
This general duty safety switch is used in both residential and commercial environments. It accommodates light duty motor circuits and service entrance applications, enhancing overall electrical safety.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer: Cutler-Hammer/Eaton
Technical Specifications
-
Voltage Rating: 240 Volt
-
Amperage Rating: 100 Amp
-
Number of Poles: 2
-
Number of Wires: 3
-
Material: Painted galvanized steel
-
Weight: 11.49 lb
-
Dimensions: 11.94 in width, 8.5 in height, 9.88 in length
-
Standard: UL Listed
-
Country of Origin: United States
