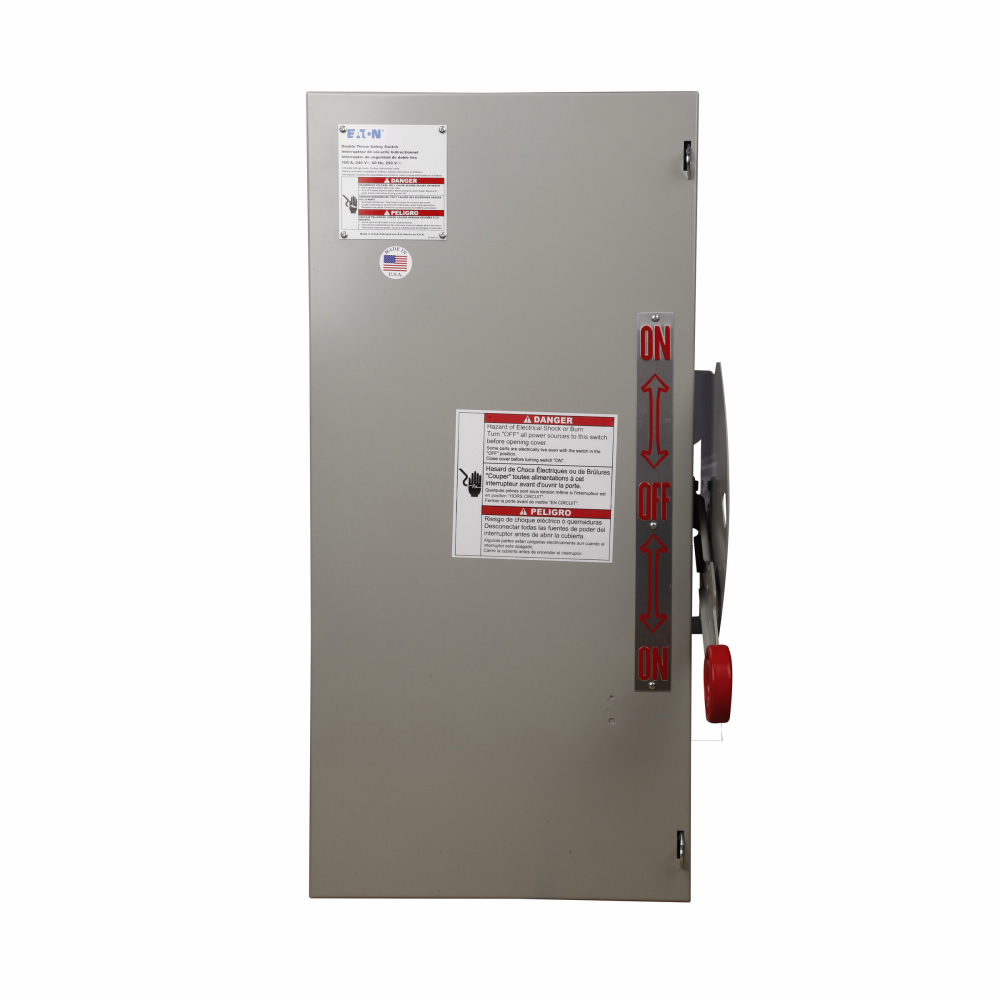

Eaton DT223UGK K Series Heavy Duty Non-Fusible Safety Switch 240 Vac/250 Vdc 100 A DPDT Contact 2 Poles

Product Description

The Eaton DT223UGK is a heavy-duty double-throw non-fusible safety switch designed for efficient power distribution. This switch supports a voltage rating of two hundred forty Volts alternating current and two hundred fifty Volts direct current. The unit features a two-pole, two-wire configuration and is suitable for various commercial and institutional applications.

• Amperage rating of one hundred Amps.
• NEMA type one enclosure made of painted steel.
• Designed with UL listing for safety and reliability.

Product Highlights

The Eaton DT223UGK safety switch is essential for transferring service between two power sources while ensuring both switches remain interlocked for safe operation.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DT223UGK
• Amperage Rating: 100 A
• Voltage Rating: 240 Vac, 250 Vdc
• Material: Steel
• Number of Poles: 2
• Number of Wires: 2
• Duty Rating: Heavy Duty
• Enclosure: NEMA 1
