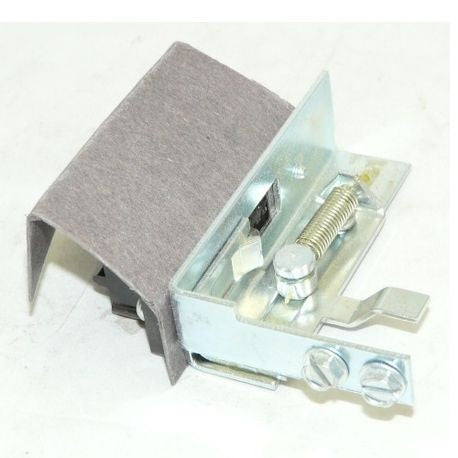

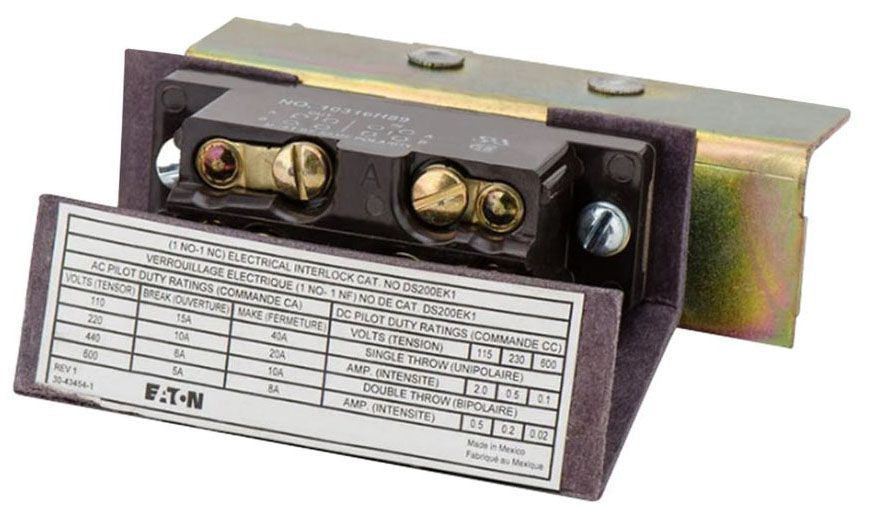

Eaton DS200EK1 Auxiliary Contact Kit, 600 V, 30 to 800 A

Product Description

The Eaton DS200EK1 Auxiliary Contact Kit is a vital component for enhancing the functionality of safety switches. This kit is designed for use with general duty safety switches rated from thirty to eight hundred Amps and operates at a voltage of six hundred volts. It enables expanded control options by providing auxiliary contacts for safety switches, ensuring reliable operation in various applications.

• Voltage: 600 V
• Current Rating: 30 to 800 A
• Contact Configuration: SPST, 1 NO, 1 NC

Product Highlights

Utilize the Eaton DS200EK1 Auxiliary Contact Kit in commercial and institutional buildings for effective power distribution and control. The kit is UL listed to ensure safety and reliability.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: DS200EK1

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 30 to 800 A
• Used With: General Duty Safety Switches
• Country of Origin: United States
• Standards: UL Listed
• Application: For Commercial and Institutional Buildings
• Dimensions: 5 in L x 4 in W x 2 in H
• Contact Configuration: 1 NO, 1 NC
