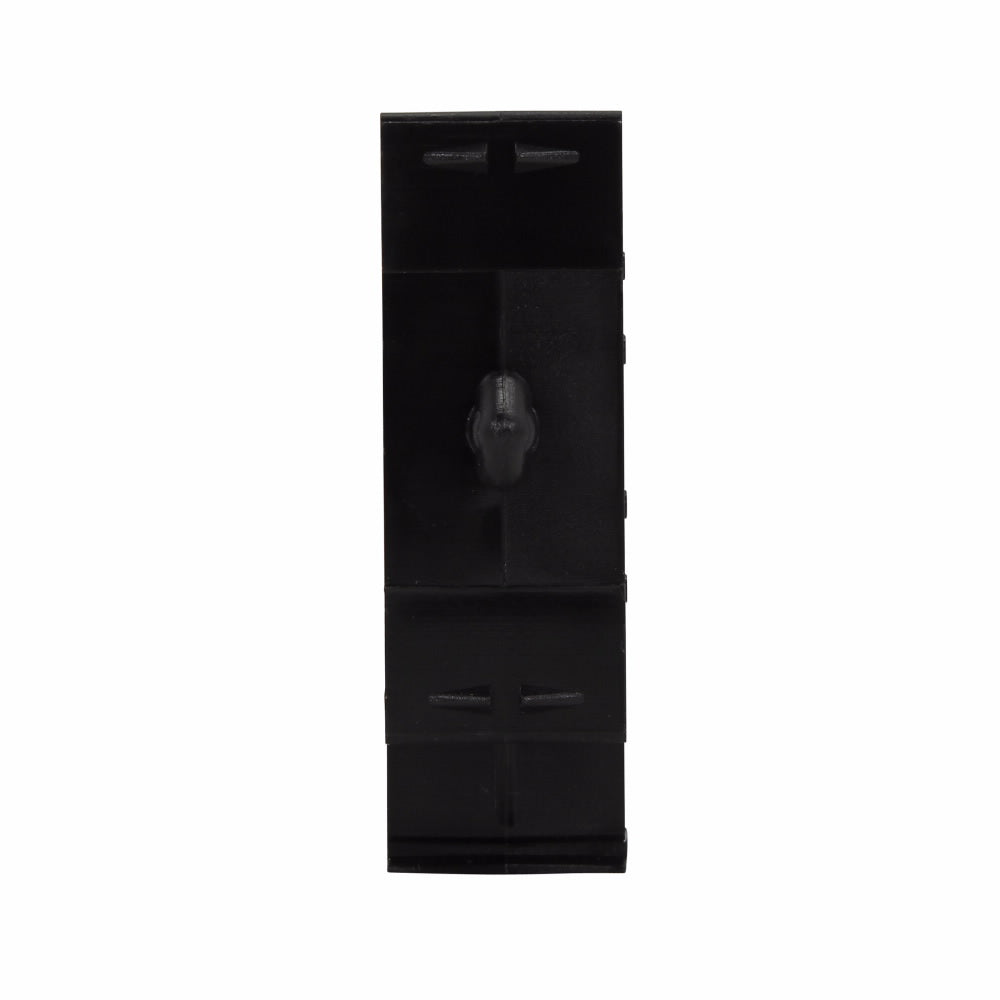

Eaton DRA-1 DIN Rail Adapter for 0 to 30 A Class CC/G/H Fuse Blocks

Product Description

The Eaton DRA-1 is a DIN rail adapter designed for use with 0 to 30 A Class CC/G/H fuse blocks. This adapter helps in achieving secure and efficient mounting on various DIN rails. It is made of Lexan material and has specific dimensions to fit the design requirements of most installations. The DRA-1 simplifies the installation process by providing positive snap-on mounting and eliminating the need for extensive drilling and tapping.

• Designed for 0 to 30 A Class CC/G/H fuse blocks
• Quick installation process with mechanical locking
• Dimensional specifications: 0.85 in L x 0.32 in W x 2.59 in H

Product Highlights

The DRA-1 offers a straightforward solution for securing fuse blocks onto DIN rails in electrical applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Name: DRA1 BUS DIN RAIL ADAPTER

Technical Specifications

• Color: Black
• Dimensions: 0.85 in L x 0.32 in W x 2.59 in H
• Manufacturer Part Number: DRA-1
• Material: Lexan
• Suitable For Use With: 0 to 30 A Class CC/G/H Fuse Blocks
