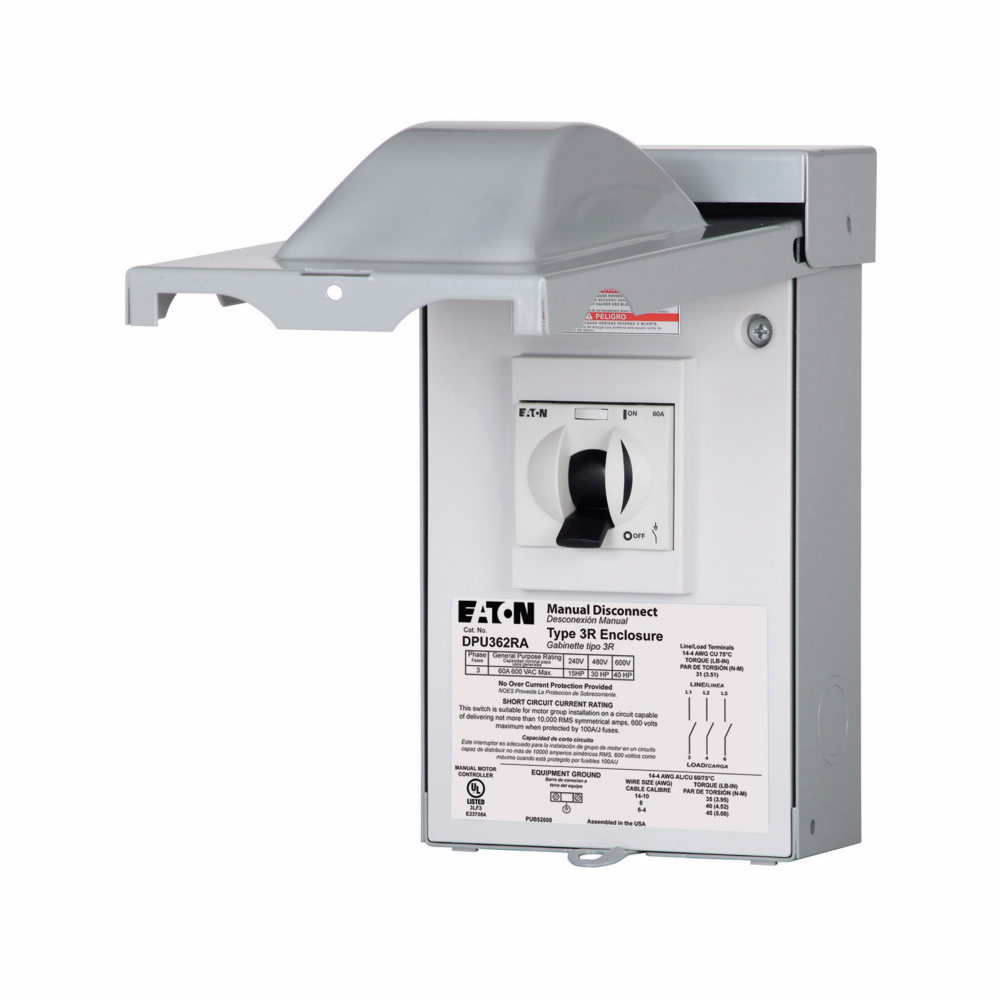

EATON DPU362RA Non-Fused Air Conditioning Disconnect 240/480 VAC 60 A 15 hp 30 hp

Product Description

The EATON DPU362RA is an air conditioning disconnect switch designed for practical use in air conditioning systems. It operates at 240/480 VAC with a current rating of sixty amps and is suited for three-phase power systems. This non-fused device is capable of handling motors rated up to 15 horsepower at 240 volts and 30 horsepower at 480 volts.

• Non-fused air conditioning disconnect switch
• Three-phase operation with a voltage rating of 240/480 VAC
• Surface-mounted with a NEMA 3R enclosure for outdoor use

Product Highlights

This unit is essential for maintenance work, providing a visible disconnection point for electrical circuits serving air conditioning units. Its pull-out handle design ensures user safety and ease of operation.

Product Information

Standard Information

• Type: Non-Fused
• Color: Gray

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 240/480 VAC
• Horsepower: 15 hp, 30 hp
• Dimensions: 9 in L x 5.5 in W x 9 in H
• Material: Galvanized Steel
• Number of Poles: 3
• Short Circuit Current Rating: 10 kA
• Temperature Rating: 60 to 75 deg C
• Enclosure Type: NEMA 3R
