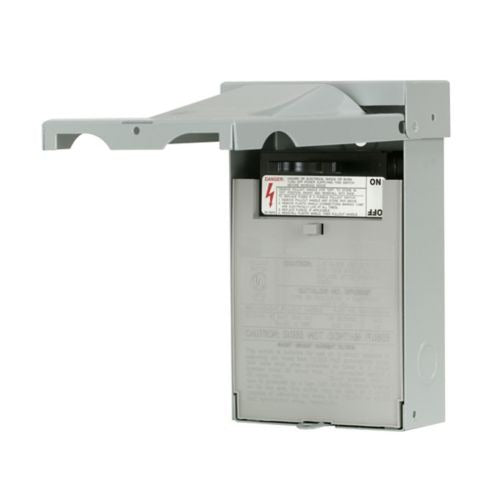

Eaton DPU222RT Air conditioning disconnect 60A (Individual)

Product Description

The Eaton DPU222RT is a non-fused pullout air conditioning disconnect rated 60 A for 120/240 V service, intended to provide a visible means of disconnect for outdoor air conditioning units. The unit has a 10 kAIC interrupt rating, accepts #14-3 AWG copper or aluminum conductors, and is housed in a NEMA 3R galvanized steel enclosure. It is motor-rated 3 hp at 120 V and 10 hp at 240 V.

• Non-fused pullout design rated 60 A for 120/240 V systems with 10 kAIC interrupt rating
• Accepts #14-3 AWG copper or aluminum conductors; motor-rated 3 hp at 120 V and 10 hp at 240 V
• NEMA 3R galvanized steel outdoor enclosure with removable front cover, padlock provision, and pullout ON/OFF handle with protective shield

Product Highlights

Outdoor-rated 60 A disconnect for air conditioning with 10 kAIC interrupt rating and #14-3 AWG Cu/Al conductor compatibility.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DPU222RT
