Product Description

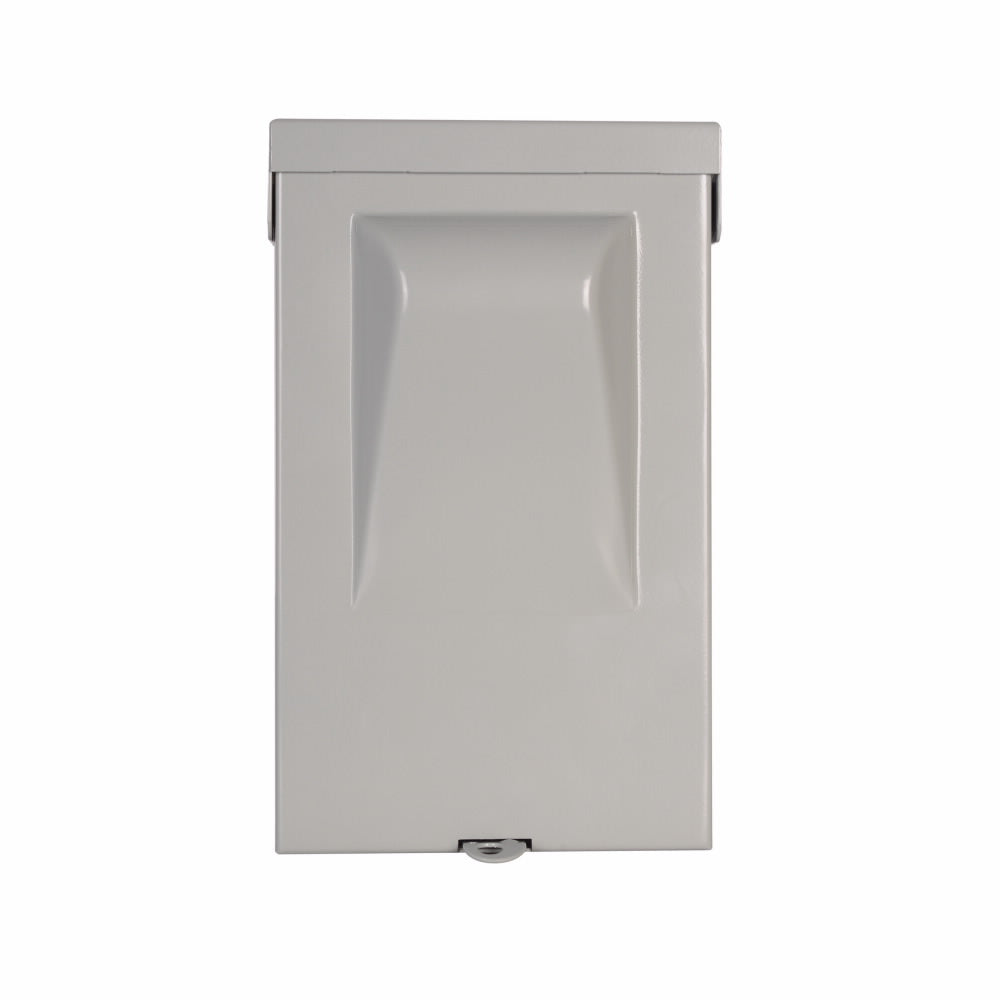

EATON DPU222R is a non-fused pullout air conditioning disconnect designed for 120/240 VAC applications. This device allows visible disconnection between the distribution panel and air conditioning unit, enhancing safety during maintenance tasks.
- 60 Amp capacity with 10 horsepower rating.
- Constructed for surface mounting with NEMA 3R enclosure.
- Compatible with 14 to 3 AWG wire.
Product Highlights
This disconnect provides an effective means for electrical isolation of air conditioning units for service and maintenance.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part No: DPU222R
Technical Specifications
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 60 A
-
Number of Poles: 2
-
Enclosure Type: NEMA 3R
-
Short Circuit Current Rating: 10 kA
-
Horsepower: 10 hp
-
Temperature Rating: 60 to 75 deg C
-
Color: Gray
-
Material: Steel
