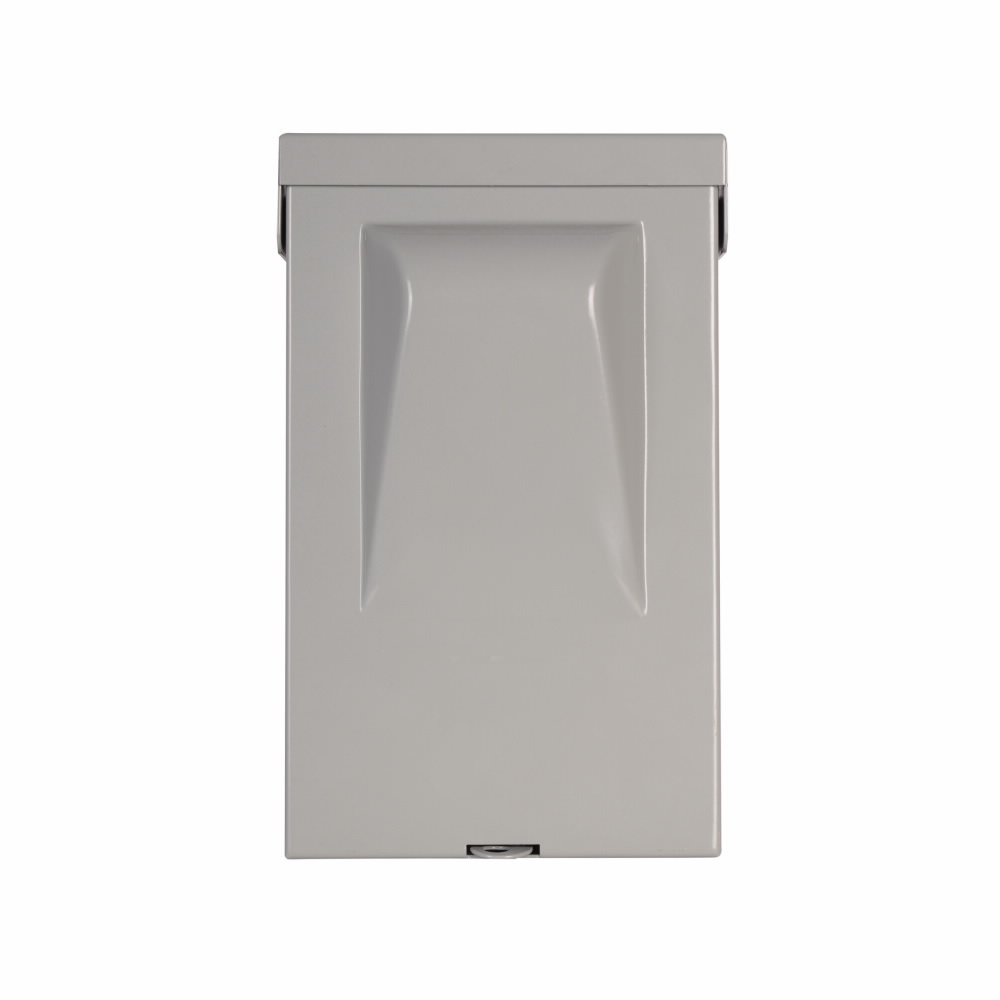

Eaton DPF221R Fused Pullout Air Conditioning Disconnect 120/240 VAC 30 A 2 hp 3 hp

Product Description

Eaton DPF221R is a fused pullout air conditioning disconnect that operates at 120/240 volts and supports 30 amperes. This unit is designed for two pole connections and is suitable for applications requiring a visible disconnecting means for maintenance. Its galvanized steel enclosure is robust and provides IP rating NEMA 3R, suitable for outdoor use.

• Switch rated for 30 A and 10 kA short-circuit current rating.
• Compatible with wire sizes of fourteen to three AWG, copper or aluminum.
• Designed for 2 hp at 120V and 3 hp at 240V applications.

Product Highlights

This disconnect switch is essential for safely isolating power from air conditioning units during maintenance. It simplifies service tasks while ensuring safety compliance with electrical codes.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DPF221R
• Amperage: 30 A
• Voltage: 120/240 Volt
• Material: Galvanized Steel
• Dimensions: 5.4 in Length x 3.15 in Width x 8.7 in Height
• Weight: 2.7 lb
• Wire Size: 14-3 AWG
• Horsepower: 2 hp at 120V, 3 hp at 240V
