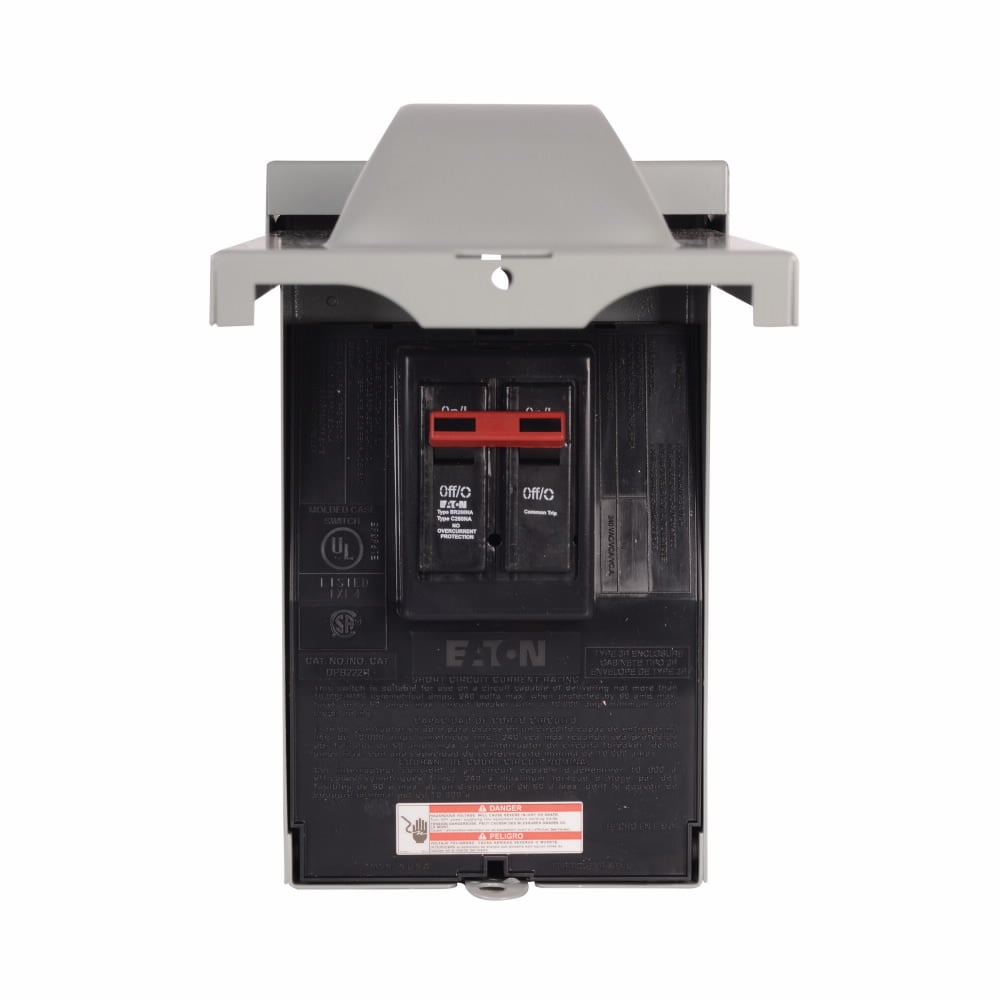

Eaton DPB222R Molded Case Air Conditioning Disconnect Switch, 240 VAC, 60 A, 10 hp, 2 Poles

Product Description

Eaton DPB222R is a molded case air conditioning disconnect switch. It operates on 240 VAC and handles up to sixty amperes, making it suitable for various HVAC applications. The device features two poles, supporting a maximum of ten horsepower at 240 volts. It comes in a NEMA three R enclosure for outdoor or wet locations, providing essential protection for electrical connections.

• Provides a visible means to disconnect power for maintenance
• High-strength protective shield for added safety
• Compatible with 14 to three AWG copper or aluminum wire

Product Highlights

This disconnect switch is vital for HVAC systems, ensuring safety during maintenance work. It allows maintenance personnel to clearly see when the power is shut off. The easy-to-use pull-out handle can be stored safely in the off position, preventing loss.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: DPB222R

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 240 VAC
• Horsepower Rating: 10 hp
• Number of Poles: 2
• Enclosure Type: NEMA 3R
• Dimensions: 5.3 inches L x 3.74 inches W x 8.6 inches H
• Material: Galvanized Steel
