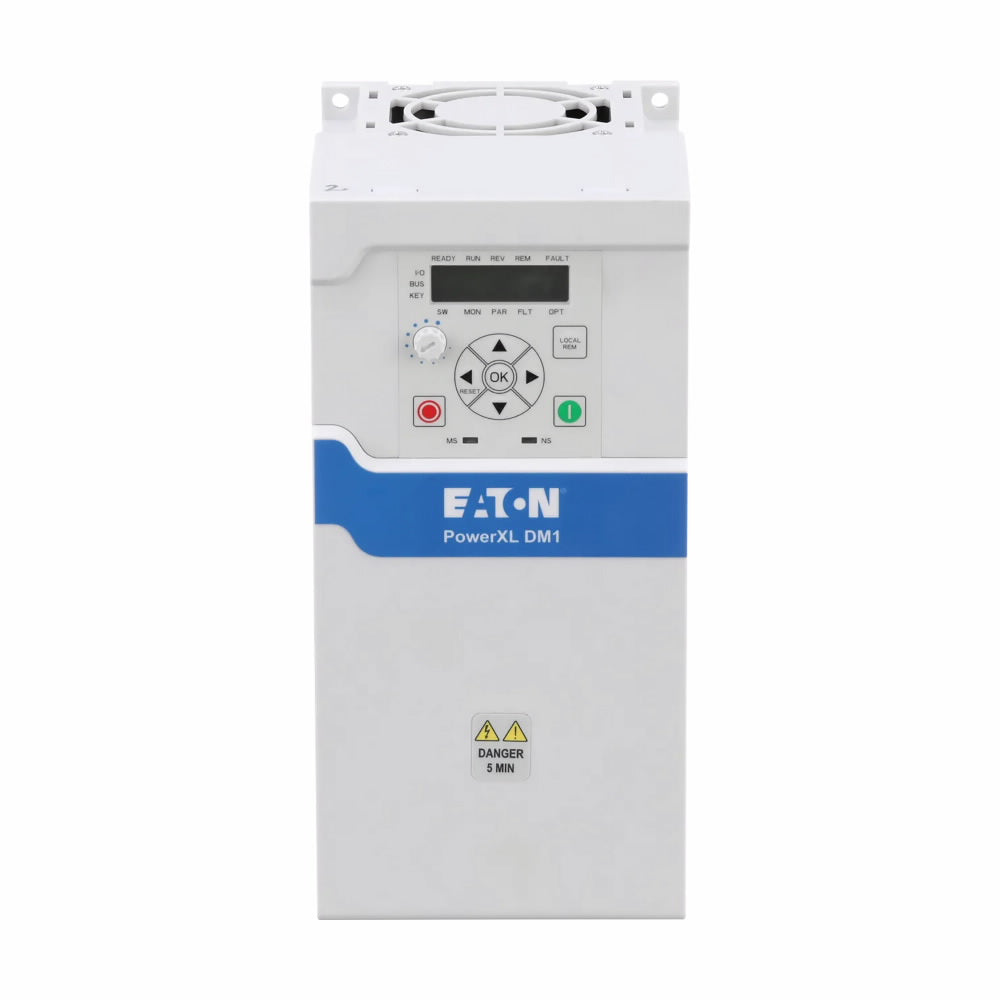

Eaton DM1-34023NB-S20S DM1 Pro 3PH 480V FR3 15HP 023A CT NOEMC

Product Description

The EATON DM1-34023NB-S20S is a drive from the DM1 series, designed for 380 to 480 VAC applications. It features an IP20 enclosure and an LCD display. Suitable for commercial, institutional buildings, structures, and other applications. Offers sensorless vector control and includes a built-in brake chopper.

• Easy Startup Wizard, PC Tool software, integrated Bluetooth
• Permanent Magnet Motor Control, Active energy control algorithm, input surge protection
• High overload (CT) and low overload (VT) rated, conformal coated boards

Product Highlights

This drive optimizes energy use and provides reliable performance with its overload ratings and conformal coated boards.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DM1-34023NB-S20S
• Country of Origin: China

Technical Specifications

• Application: For Commercial, Institutional Buildings, Structures and Other
• Depth: 7.05 in
• Enclosure: IP20
• Height: 10.24 in
• Manufacturer Part Number: DM1-34023NB-S20S
• Series: DM1
• Standards/Approvals: UL Listed|PROP65
• Voltage Rating: 380 to 480 VAC
• Width: 5.12 in
• Product Series: DM1 PRO
• Family Series: Eaton Drives, DM1 PRO Series
• Phase: 3
• HP (Constant Torque Rating): 15 hp
• HP (Variable Torque Rating): 20 hp
• Amps (Constant Torque Rating): 23 A
• Amps (Variable Torque Rating): 31 A
• Brake: DC Injection, Dynamic Braking
• Closed Loop: No
• AC Line Regenerative: No
• Operator Controls: Keypad Included
• Motor Control-Max Level: Sensorless Vector
• Mounting: Panel
• Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
• AC Voltage: 380-480 VAC
• Frequency: 400 Hz
• Frame Size: FR3
• Protection Rating: IP20
• Dynamic Braking: Included
• Comments: Active Energy Control, Conformal Coated Boards, Built-in Brake Chopper, Pre-Programmed I/O
• Brand: Eaton
• Model: DM1-34023NB-S20S
• MPN: DM1-34023NB-S20S
• Country of Origin: China
• Current Rating: 23 A
• Horsepower Rating: 15 hp
• Power Rating: 11 kW
• Supply Voltage: 480 V
• Amps: 23
• IP/NEMA Rating: IP20
• Volts AC: 400
