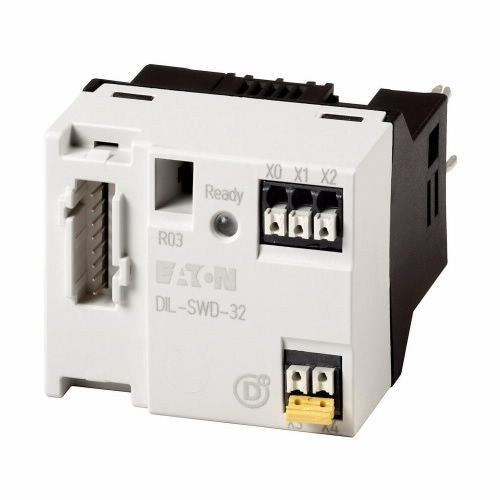

Eaton DIL-SWD-32-002 Manual/Auto Contactor Module For Use With DILM(C)7/DILM(C)32/DILM38/DILA/DILMP20 Contactors

Product Description

The EATON DIL-SWD-32-002 is a manual/auto contactor module designed to reduce panel and machine wiring complexity. It consolidates complex circuit wiring into a single cable. Connecting components over SmartWire-DT is fast and simple, streamlining testing and reducing installation, commissioning, and troubleshooting.

• Designed for use with DILM(C)7, DILM(C)32, DILM38, DILA, and DILMP20 Contactors
• 1 Contact per Module
• Blue LED for status indication

Product Highlights

The DIL-SWD-32-002 contactor module simplifies machine wiring with SmartWire-DT, saving time and money during installation and maintenance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DIL-SWD-32-002

Technical Specifications

• Type: Manual/Auto
• Series: SWDT
• Specifications: 1 Contact/Module, Front Mount, Blue LED
• Suitable For Use With: DILM(C)7/DILM(C)32/DILM38/DILA/DILMP20 Contactors
• UNSPSC: 32101513
• Catalog Number: 118561
• Model Code: DIL-SWD-32-002
• EAN: 4015081168316
• Product Length/Depth: 72 mm
• Product Height: 38 mm
• Product Width: 45 mm
• Product Weight: 0.037 kg
• Certifications: UL 508 IEC/EN 60947 UL EN 50178 CE CSA File No.: 2324643 CSA Class No.: 3211-07 UL File No.: E29184 IEC/EN 61131-2 UL Category Control No.: NKCR CSA-C22.2 No. 14-05 IEC/EN 60947-4-1 CSA
• Product Type: Accessory
• Electric connection type: Spring clamp connection
• Operating mode: Address allocation via Rotary switch
• Control mode: Address allocation via Rotary switch
• Cable length:
• Current consumption: 40 mA, SmartWire-DT network
• Input current at signal 1: 3 mA
• Number of inputs (digital): 2
• Number of outputs (digital): 1
• Output current: 0.5 A
• Overvoltage category: II
• Pollution degree: 2
• Product category: SmartWire-DT slave
• Protocol: Other bus systems
• Voltage type: DC
• Constant acceleration: 1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
• Constant amplitude: 3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
• Drop and topple: 50 mm Drop height, Drop to IEC/EN 60068-2-31
• Height of fall (IEC/EN 60068-2-32) - max: 0.3 m
• Mounting position: As DILM7 to DILM38
• Shock resistance: 15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
• Ambient operating temperature - min: -25 °C
• Ambient operating temperature - max: 60 °C
• Ambient storage temperature - min: -30 °C
• Ambient storage temperature - max: 70 °C
• Environmental conditions: Condensation: prevent with appropriate measures
• Relative humidity: 5 - 95 % (non-condensing, IEC/EN 60068-2-30)
• Air discharge: 8 kV, according to IEC 61131-2, level 3, ESD
• Burst impulse: 1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3 1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
• Contact discharge: 4 kV, according to IEC/EN 61131-2, Level 2, ESD
• Electromagnetic fields: 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008) 10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008) 1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
• Radiated RFI: 10 V (IEC/EN 61131-2:2008, Level 3)
• Radio interference class: Class A (EN 55011)
• Terminal capacity: 0.2 - 1.5 mm² (24 - 16 AWG), solid 0.25 - 1.5 mm², flexible with ferrule
• Rated operational voltage: 15 V DC (auxiliary contact)
• Supply voltage at DC - min: 15 VDC
• Supply voltage at DC - max: 15 VDC
• Pick-up current: 125 mA (for DILM 7-9) 188 mA (for DILM 12-15) 500 mA (for DILM 17-38)
• Power consumption: 3 W for DILM 7-9 (Pick-up power) 4.5 W for DILM 12-15 (Sealing power) 12 W for DILM 17-38 (Pick-up power) 3 W for DILM 7-9 (Sealing power) 4.5 W for DILM 12-15 (Pick-up power) 0.5 W for DILM 17-38 (Sealing power)
• Sealing current: 188 mA, SmartWire-DT network for DILM 12-15 21 mA, SmartWire-DT network for DILM 17-38 125 mA, SmartWire-DT network for DILM 7-9
• Addressing: Address set automatically
• Connection to SmartWire-DT: Yes
• Connection type: SWD: Plug, 8-pole Push in terminals, Auxiliary contact External device plug SWD4-8SF2-5, SmartWire-DT
• LED indicator: Status indication of SmartWire-DT network: Green and orange LED
• Station: SmartWire-DT slave, SmartWire-DT network
• Number of auxiliary contacts: 2
• Explosion safety category for dust: None
• Explosion safety category for gas: None
• Potential isolation: Connection auxiliary contact: no
• Equipment heat dissipation, current-dependent Pvid: 0 W
• Heat dissipation capacity Pdiss: 0 W
• Heat dissipation per pole, current-dependent Pvid: 0 W
• Rated operational current for specified heat dissipation (In): 0 A
• Static heat dissipation, non-current-dependent Pvs: 0.8 W
• 10.2.2 Corrosion resistance: Meets the product standard's requirements.
• 10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard's requirements.
• 10.2.3.2 Verification of resistance of insulating materials to normal heat: Meets the product standard's requirements.
• 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects: Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation: Meets the product standard's requirements.
• 10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions: Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies: Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances: Meets the product standard's requirements.
• 10.5 Protection against electric shock: Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components: Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections: Is the panel builder's responsibility.
• 10.8 Connections for external conductors: Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength: Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage: Is the panel builder's responsibility.
• 10.9.4 Testing of enclosures made of insulating material: Is the panel builder's responsibility.
• 10.10 Temperature rise: The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
• 10.11 Short-circuit rating: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility: Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• Standard & Approvals: ARRA Compliant, BAA Compliant, CE Certified, CSA Certified, RoHS Compliant, UL Listed
