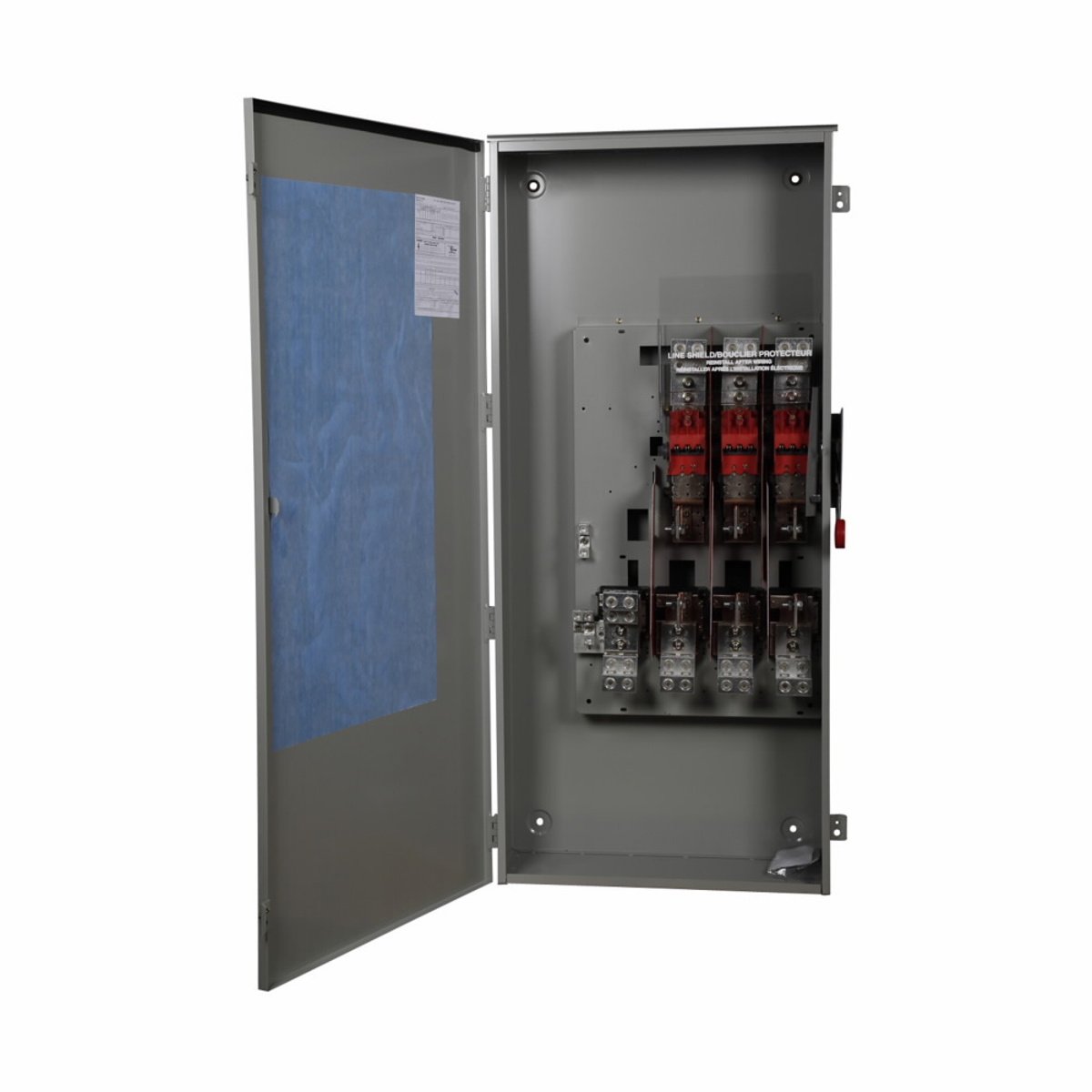

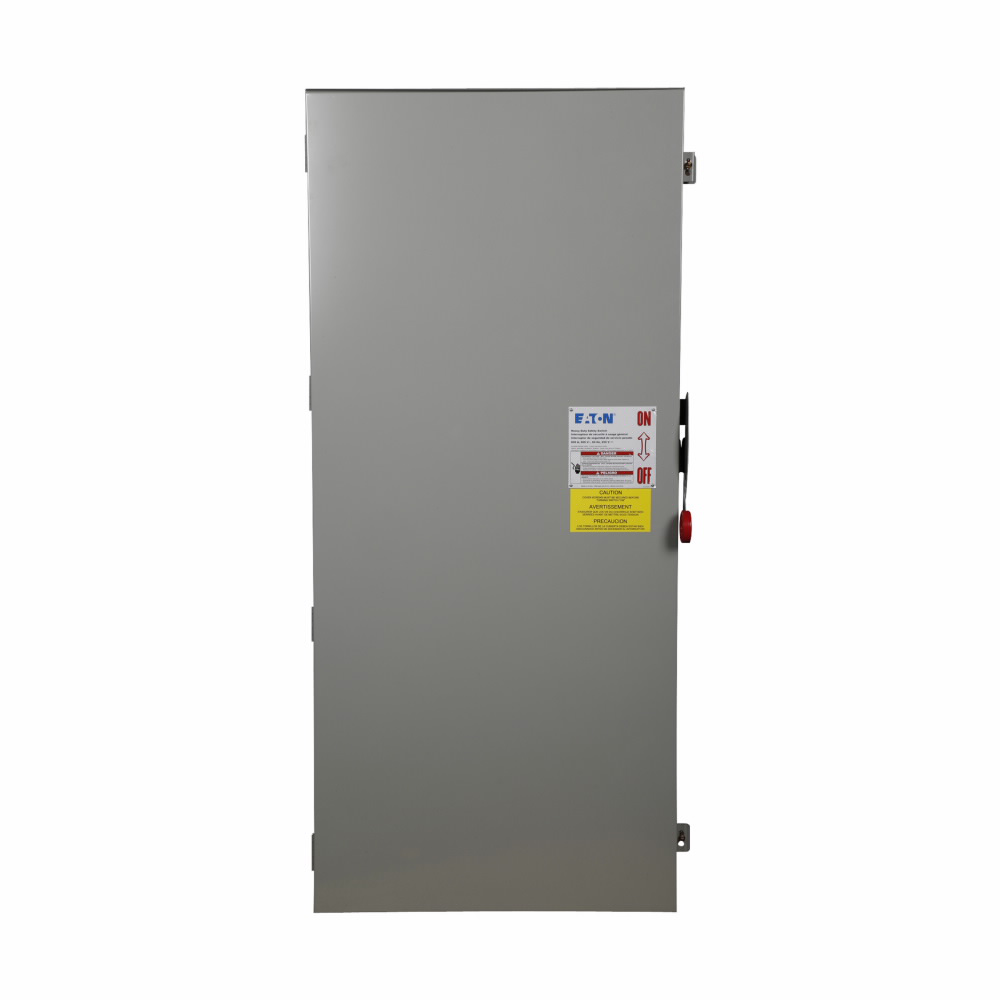

Eaton DH367NRK Heavy Duty Safety Switch 800 A NEMA 3R

Product Description

The Eaton DH367NRK is a heavy-duty fused safety switch designed for reliable performance in demanding environments. This switch features an amperage rating of eight hundred amps and a voltage rating of six hundred volts. It is suitable for commercial and institutional power distribution and control applications. The product is constructed from painted galvanized steel and is compliant with NEMA 3R specifications, making it ideal for outdoor environments.

• Fusible with neutral for added safety
• Three-pole, four-wire design
• Handles a maximum horsepower rating of five hundred hp

Product Highlights

Designed for enhanced safety and ease of use, this safety switch includes a clear line shield and supports triple padlock capability to prevent accidental operation.

Product Information

Standard Information

• Catalog Number: DH367NRK
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 800 A
• Material: Steel
• NEMA Rating: 3R
• Dimensions: 57.5 in L x 27.5 in W x 12.38 in H
• Enclosure Material: Steel
• Number of Poles: 3
• Number of Wires: 4
