Eaton DH367NGK ETN DH367NGK 800A/3P HD FSBL S

Product Description

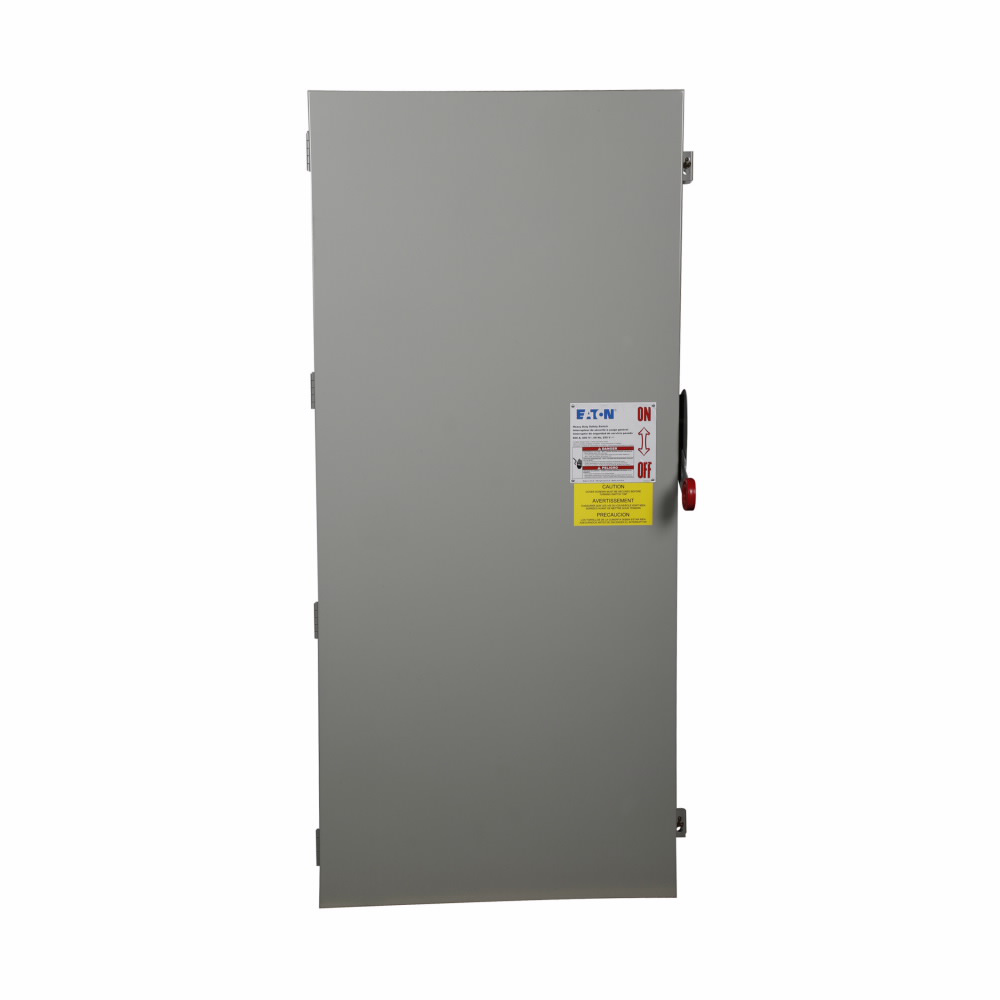

Eaton offers the DH367NGK heavy-duty single-throw fused safety switch. This switch is rated at eight hundred amps with three poles and four wires, designed to handle a voltage of six hundred volts. Made from painted steel, it meets NEMA 1 specifications. The switch is fusible with a neutral and is ideal for commercial and institutional applications. It provides reliable performance where safety and service continuity are important.

• High visibility Palm fitting red handle for easy operation
• Double break rotary blade mechanism prevents burning contacts
• Compatible with Class L fuses

Product Highlights

The Eaton DH367NGK safety switch is recognized for its robust design and high performance in various settings.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DH367NGK
• Amperage: 800 Amps
• Voltage Rating: 600 Volts
• Number of Poles: 3
• Number of Wires: 4
• Material: Steel
• Dimensions: 57.5 in Length x 27.5 in Width x 12.38 in Height
• NEMA Rating: 1
