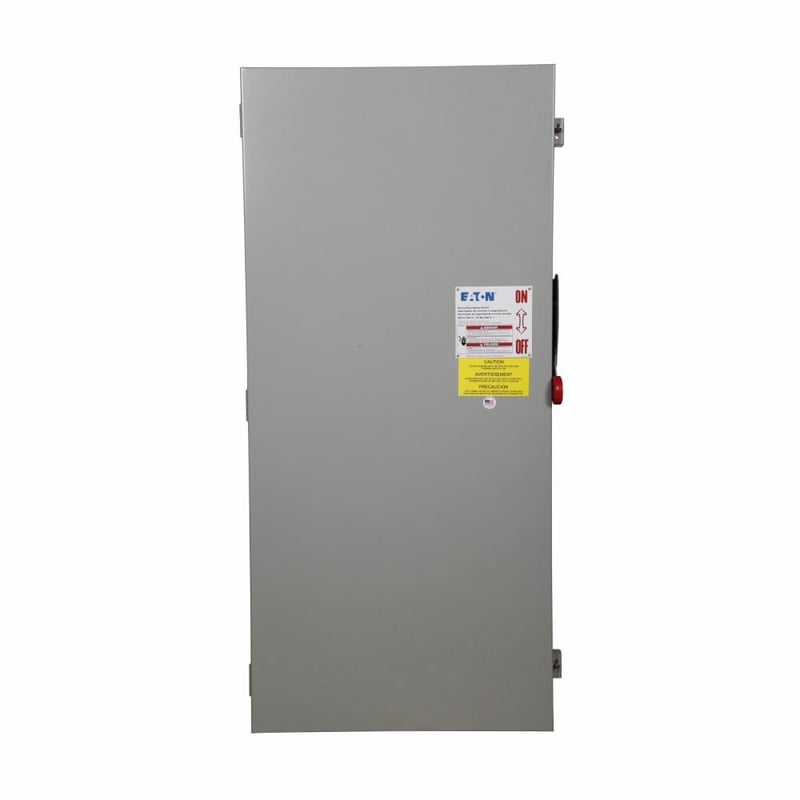

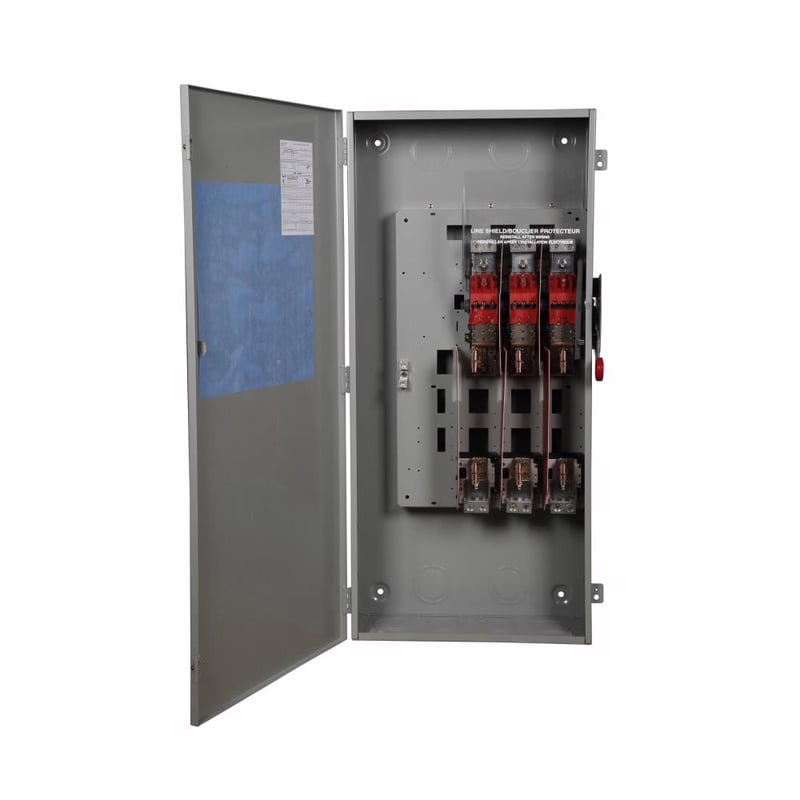

Eaton DH366FGK 600 Amp, 3 Pole, 600 Volt, NEMA 1, Heavy Duty Fusible Safety Switch

Product Description

The Eaton DH366FGK is a heavy-duty fusible safety switch rated for six hundred amps and designed for three-phase applications. This switch operates at six hundred volts and adheres to NEMA 1 standards, making it suitable for indoor installations. It is constructed from painted steel and designed for durability. This switch can handle maximum horsepower ratings of up to five hundred for three-phase operations.

• 600 Amp, 3 Pole, 600 Volt rating
• NEMA 1 indoor use housing
• Class H fusing without neutral

Product Highlights

Ideal for powering commercial and institutional structures, the Eaton DH366FGK ensures safe operation while maintaining service continuity.

Product Information

Standard Information

• Application: Commercial / Institutional Buildings
• Compliances: NEC 230.62 (C) Compliant Barrier

Technical Specifications

• Amperage Rating: 600 A
• Voltage Rating: 600 V
• NEMA Rating: 1
• Material: Painted Steel
• Number of Poles: 3 Pole
• Height: 12 in
• Width: 27.5 in
• Product Type: Fusible safety switch
